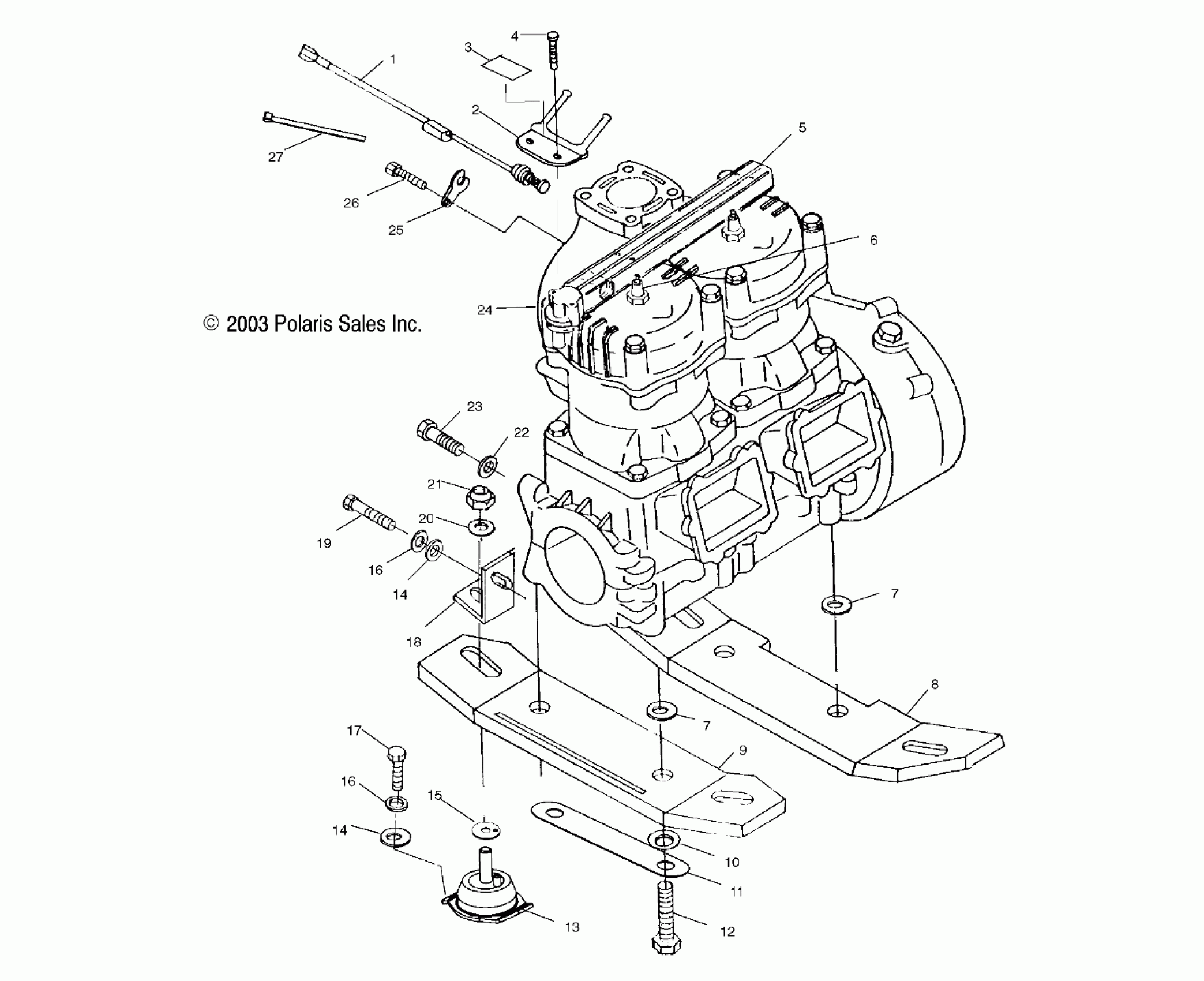

Polaris VIRAGE - W045197DA/IA ENGINE MOUNTING - W045197DA/IA (4990499049B06) Diagram

#

Description
Price

1

Asm., Temperature Switch w/Connector

2410187

$77.78

2

Ground, Spark Plug

5242488

Unavailable

3

Decal, Spark Plug

7077026

$2.94

4

Screw

7515149

Unavailable

5

DECAL, WARNING [SEE CYLINDER AND MANIFOLD PG. C4, REF. 1]

----

Unavailable

6

SPARK PLUG, NGK BPR8ES [SEE CYLINDER AND MANIFOLD PG. C4, REF. 5]

----

Unavailable

7

Washer, Flat

7556184

$3.81

7

Washer, Flat

7556184

$3.81

8

Plate, Front Mount w/Washer

5631166-329

$139.68

9

Plate, Rear Mount w/Washer

5631167-329

Unavailable

10

Washer, Flat

7556170

Unavailable

11

Lock, Mount Plate

5245460

$13.10

12

Screw

7517330

Unavailable

13

Mount, Engine

3021254

$73.81

14

Washer, Flat

7555835

$0.69

14

Washer, Flat

7555835

$0.69

15

Shim, Engine Mount

5211727

Unavailable

16

Washer, Lock

7552610

Unavailable

16

Washer, Lock

7552610

Unavailable

17

Screw

7517627

Unavailable

18

Bracket, Rear Muffler

1060142

$53.17

19

Screw

7515357

Unavailable

20

Washer, Flat

7555848

Unavailable

21

Nut, Nylok

7542725

$3.59

22

Washer, Lock

7556055

Unavailable

23

Bolt

7517497

$3.97

24

Kit, Short Block NOTE: The Short Block assembly contains a crankcase assembly, cylinder, and cylinder head assembly.

2202071

Unavailable

25

Clip, Retainer, Temperature Switch

5240876

$4.99

26

BOLT

7516603

$10.32

27

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41
