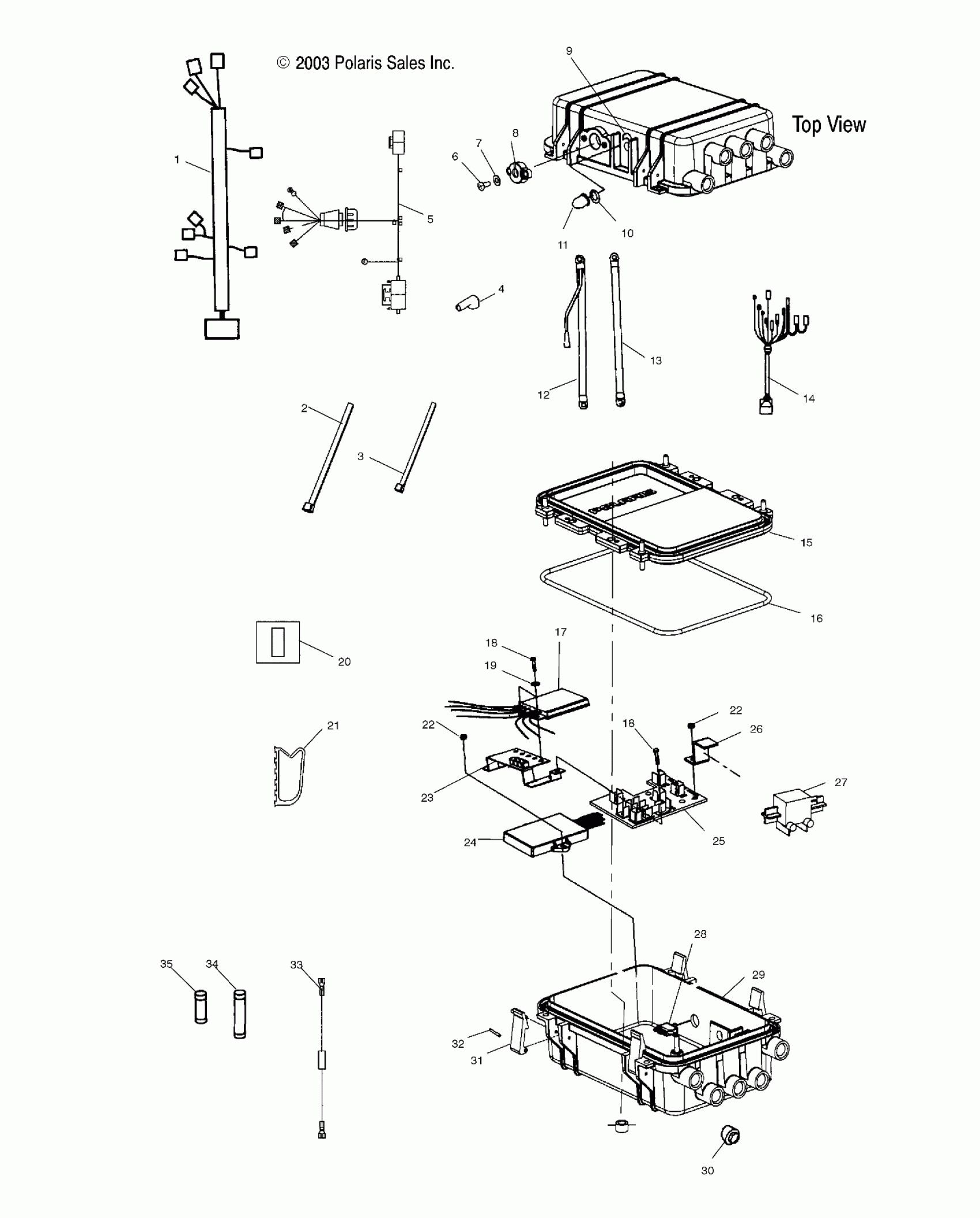

Polaris VIRAGE - W045197DA/IA ELECTRICAL BOX - W045197DA/IA (4990499049B13) Diagram

#

Description
Price

1

Harness

2461108

Unavailable

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

3

Cable Tie

7080483

Unavailable

4

INSULATOR-CABLE

5410346

$7.73

5

Harness, Starter Relay, Bilge

2461113

$94.44

6

Bolt

7515113

Unavailable

7

Washer, Flat

7555836

$3.99

8

Plate, Stator

5432574

$6.59

9

Decal, Electrical Box Reset

7073734

Unavailable

10

O-Ring

5411491

$1.03

11

Boot, Threaded

7080461

$13.99

12

Cable, Battery/Solenoid

4010669

Unavailable

13

Cable, Solenoid/Starter

4010237

Unavailable

14

Harness, 8 Wire Stator

2460718

Unavailable

15

Cover, Electrical Box

5433119

Unavailable

16

Seal, Plastic Electrical Box

5432569

Unavailable

17

Regulator, 1 Button

4010648

Unavailable

18

Screw

7512042

Unavailable

18

Screw

7512042

Unavailable

19

Washer, Flat

7555837

$1.59

20

Anchor, Cable Tie

7080464

Unavailable

21

Conduit, Wire

5521286-2.5

Unavailable

22

Nut, Nylok

7547061

$0.56

22

Nut, Nylok

7547061

$0.56

23

Asm., Grounding Strap w/Fuses

2410250

Unavailable

24

CDI, PROGRAMMED [SEE MAGNETO PG. C8, REF. 10]

----

Unavailable

25

Asm., Terminal Board

2410345

Unavailable

26

Bracket, Coil

5244370

Unavailable

27

COIL, IGNITION [SEE MAGNETO PG. C8, REF. 11]

----

Unavailable

28

Breaker, Circuit

2434011

$20.48

29

Asm., Electrical Box, Ignition [Incl. 15,16,31,32]

2632137

Unavailable

30

Plug, Wire Sealing

4010261

$1.19

31

Latch, Electrical Box

5432503

$102.38

32

Pin, Latch, Electrical Box

5333544

$10.46

33

Harness, Jumper

2460928

$13.89

34

Fuse, 1/4 Amp

4060111

Unavailable

35

Fuse, 3 Amp

4060161

Unavailable
