Description

Price

1

Decal, Warning, Electrical

7172605

Unavailable

2

Screw

7516806

Unavailable

3

Decal, Spark Plug

7077026

$2.95

4

Plug, Pipe

7051527

Unavailable

5

Spark Plug, NGK BPR8ES

3070174

Unavailable

6

Bolt

7516722

Unavailable

7

Screw

7517352

Unavailable

8

O-Ring

5410917

$1.49

9

O-RING

5410932

$20.22

10

O-Ring

5412232

$7.99

11

Nut, Acorn Flanged

7547021

$6.99

12

Cylinder

3021019

Unavailable

13

Screw

7516807

Unavailable

13

Screw

7516807

Unavailable

14

Screw

7517306

Unavailable

15

Washer

7555836

$3.99

16

Retainer

7080654

$18.32

17

Bracket, Oil Pump Cable

5241134

Unavailable

18

Manifold, Intake

5630656-329

Unavailable

19

Gasket, Carb

5830043

Unavailable

20

Stuffer, Reed Block

5433151

Unavailable

21

Asm., Valve, Reed

1201825

$134.99

22

Gasket, Cylinder Base

5811784

$8.89

23

Head, Cylinder

3021117

Unavailable

24

Ring, Head, Large

5241944

Unavailable

25

Cover, Head, Big Bore

5630527-093

Unavailable

26

Gasket, Water, Manifold

5830061

Unavailable

27

Asm., Water Manifold

1202061-329

Unavailable

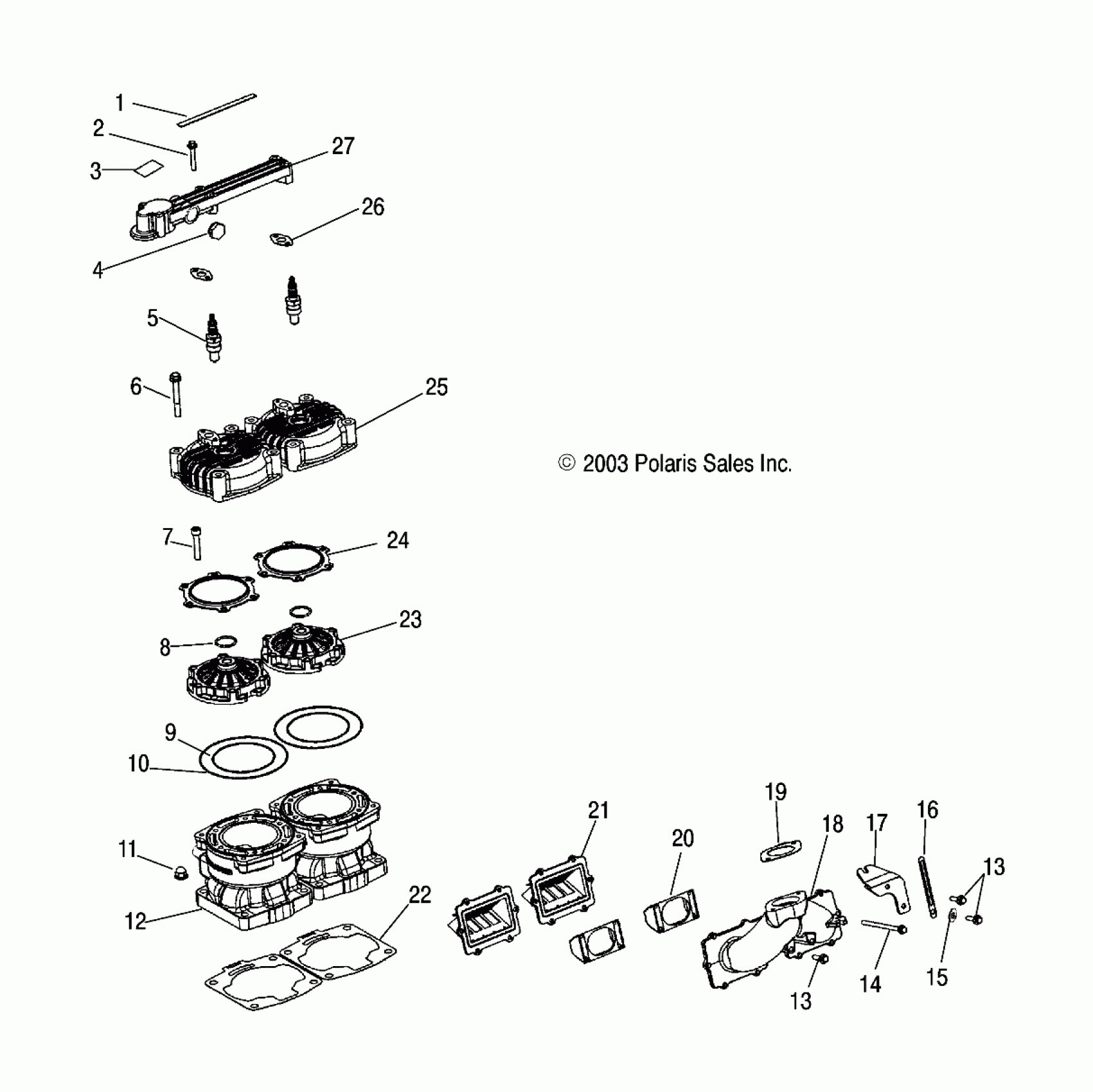

Polaris VIRAGE - W045197DA/IA CYLINDER and MANIFOLD - W045197DA/IA (4990499049C04) Diagram

Decal, Warning, Electrical

Screw

Decal, Spark Plug

Plug, Pipe

Spark Plug, NGK BPR8ES

Bolt

Screw

O-Ring

O-RING

O-Ring

Nut, Acorn Flanged

Cylinder

Screw

Screw

Screw

Washer

Retainer

Bracket, Oil Pump Cable

Manifold, Intake

Gasket, Carb

Stuffer, Reed Block

Asm., Valve, Reed

Gasket, Cylinder Base

Head, Cylinder

Ring, Head, Large

Cover, Head, Big Bore

Gasket, Water, Manifold

Asm., Water Manifold
