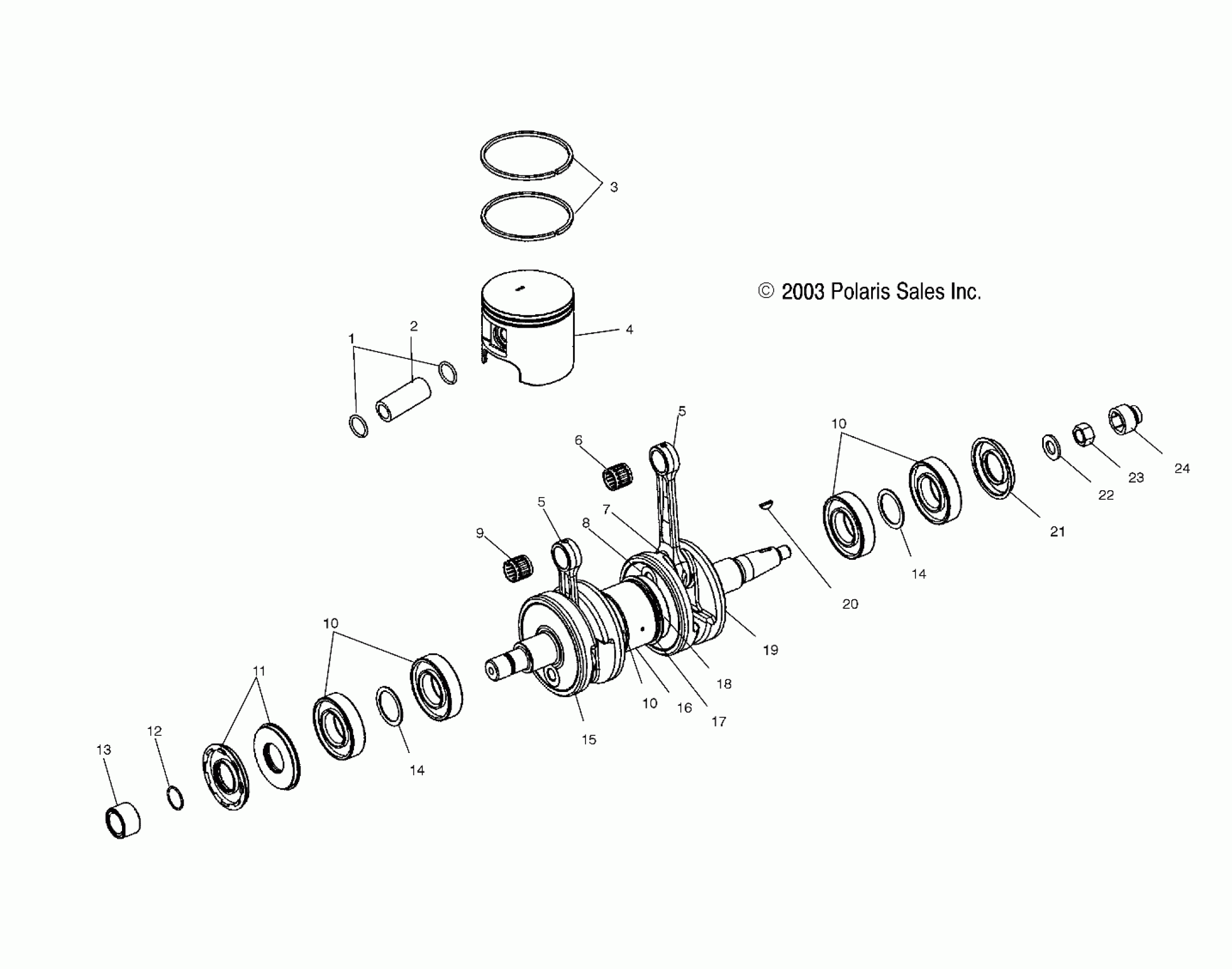

Polaris VIRAGE - W045197DA/IA CRANKSHAFT and PISTON - W045197DA/IA (4990499049C05) Diagram

#

Description
Price

-

Kit, Crankshaft, 2 Cylinder [Incl. 10,14-20]

2202494

Unavailable

1

Circlip, Piston

3022950

Unavailable

2

Pin, Piston

3021091

Unavailable

3

Kit, Piston Rings [.25 OS]

2200917

Unavailable

3

Kit, Piston Rings [Std.][2 Rings]

2200918

Unavailable

3

Kit, Piston Rings [.50 OS] NOTE: If the number stamped on the head of piston reads ELKO 2194a use the above 3 kits.

2200916

Unavailable

4

Kit, Piston [Std.][Incl.1,2,3]

2201626

Unavailable

4

Kit, Piston [.25 OS][Incl.1,2,3]

2201627

Unavailable

4

Kit, Piston [.50 OS][Incl.1,2,3]

2201628

Unavailable

5

Kit, Connecting Rod Assembly [Incl. 7-9]

2201022

$305.56

5

Kit, Connecting Rod Assembly [Incl. 7-9]

2201022

$305.56

6

Bearing

3584001

Unavailable

7

Washer, Thrust

-------

Unavailable

8

PIN, CRANKSHAFT

-------

Unavailable

9

BEARING, CONNECTING ROD

-------

Unavailable

10

Bearing, Ball

3585503

$31.99

10

Bearing, Ball

3585503

$31.99

10

Bearing, Ball

3585503

$31.99

11

Seal, Flanged

5412091

$29.99

12

O-RING

5410613

$1.99

13

Collar, Crankshaft

5131195

Unavailable

14

Bushing

7555905

$3.99

14

Bushing

7555905

$3.99

15

Crankweb, PTO, Big Bore

5131083

Unavailable

16

Crankweb, Center, Big Bore

5131084

Unavailable

17

Labyrinth

5131086

Unavailable

18

BEARING, BALL

3514318

$43.99

19

Crankweb, Magneto, Big Bore

5131085

Unavailable

20

KEY, WOODRUFF

7721117

$24.99

21

Seal

3610044

$24.27

22

WASHER [SEE MAGNETO PG. C8, REF. 7]

-------

Unavailable

23

NUT [SEE MAGNETO PG. C8, REF. 8]

-------

Unavailable

24

Coupler, Pump Drive

5435935

Unavailable
