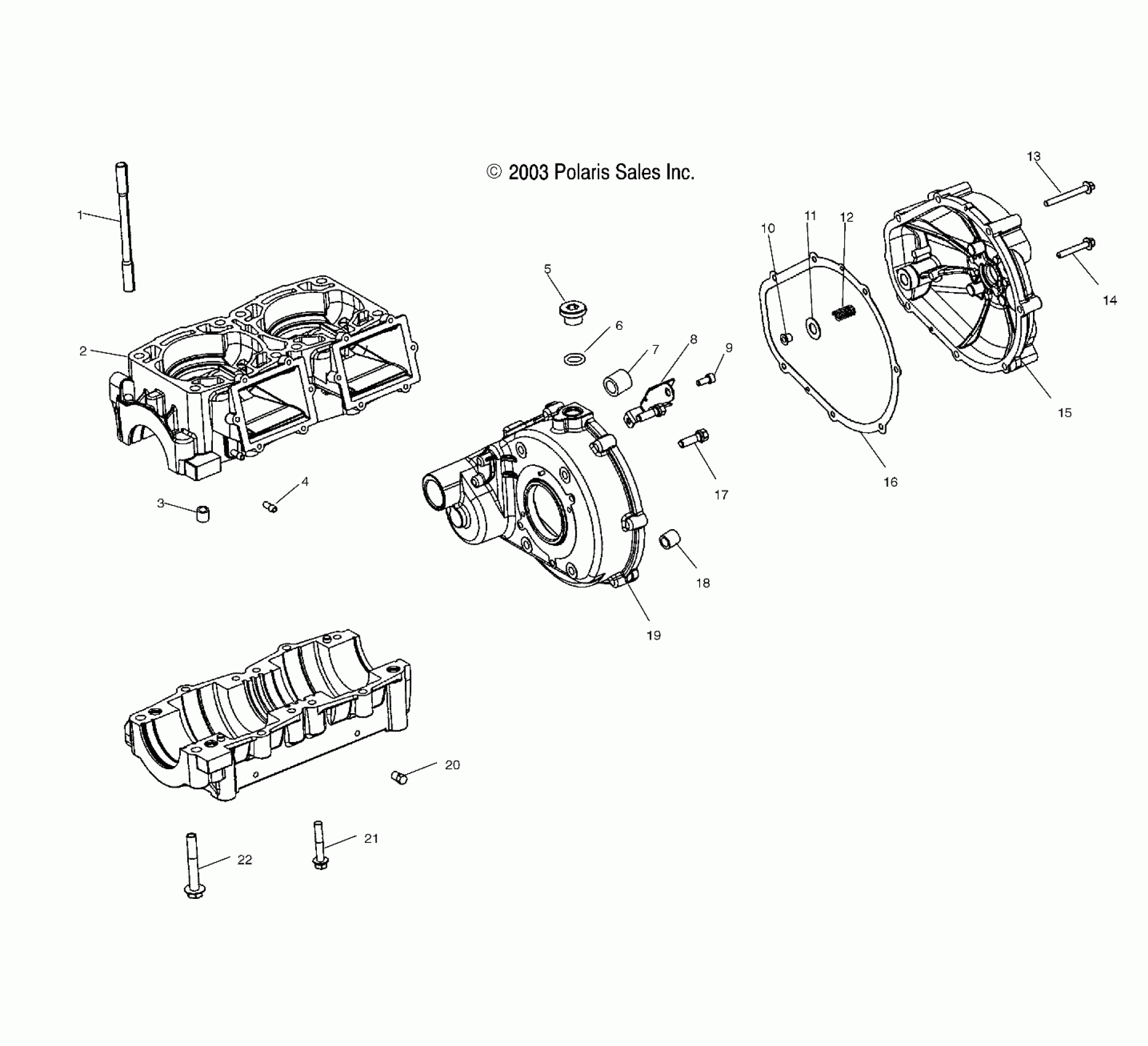

Polaris VIRAGE - W045197DA/IA CRANKCASE - W045197DA/IA (4990499049C03) Diagram

#

Description
Price

1

Stud, Cylinder Flange

5131677

Unavailable

2

Kit, Crankcase [Incl. 1-4,21,22]

2201804

Unavailable

3

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

4

Fitting

7052145

$9.59

5

Plug, Hole, Timing, Nylon

5433820

$20.22

6

O-Ring

5411564

$4.03

7

Bushing

3514378

$12.39

8

Clamp, Stator Wires

5243231

Unavailable

9

SCREW

7517431

$5.59

10

Bushing

3574214

Unavailable

11

Bushing

3569806

Unavailable

12

Spring

7041457

Unavailable

13

Screw

7517676

Unavailable

14

Screw

7516806

Unavailable

15

Asm., Flywheel Cover [Incl. 11]

1201923

Unavailable

16

Gasket, Flywheel Cover

5811550

Unavailable

17

Screw

7516723

Unavailable

18

Pin, Dowel

7663002

$4.79

19

Asm., Flywheel Housing [Incl. 7,18]

1201938

Unavailable

20

Plug

7051529

$15.99

21

Screw

7517628

Unavailable

22

Screw

7516913

Unavailable
