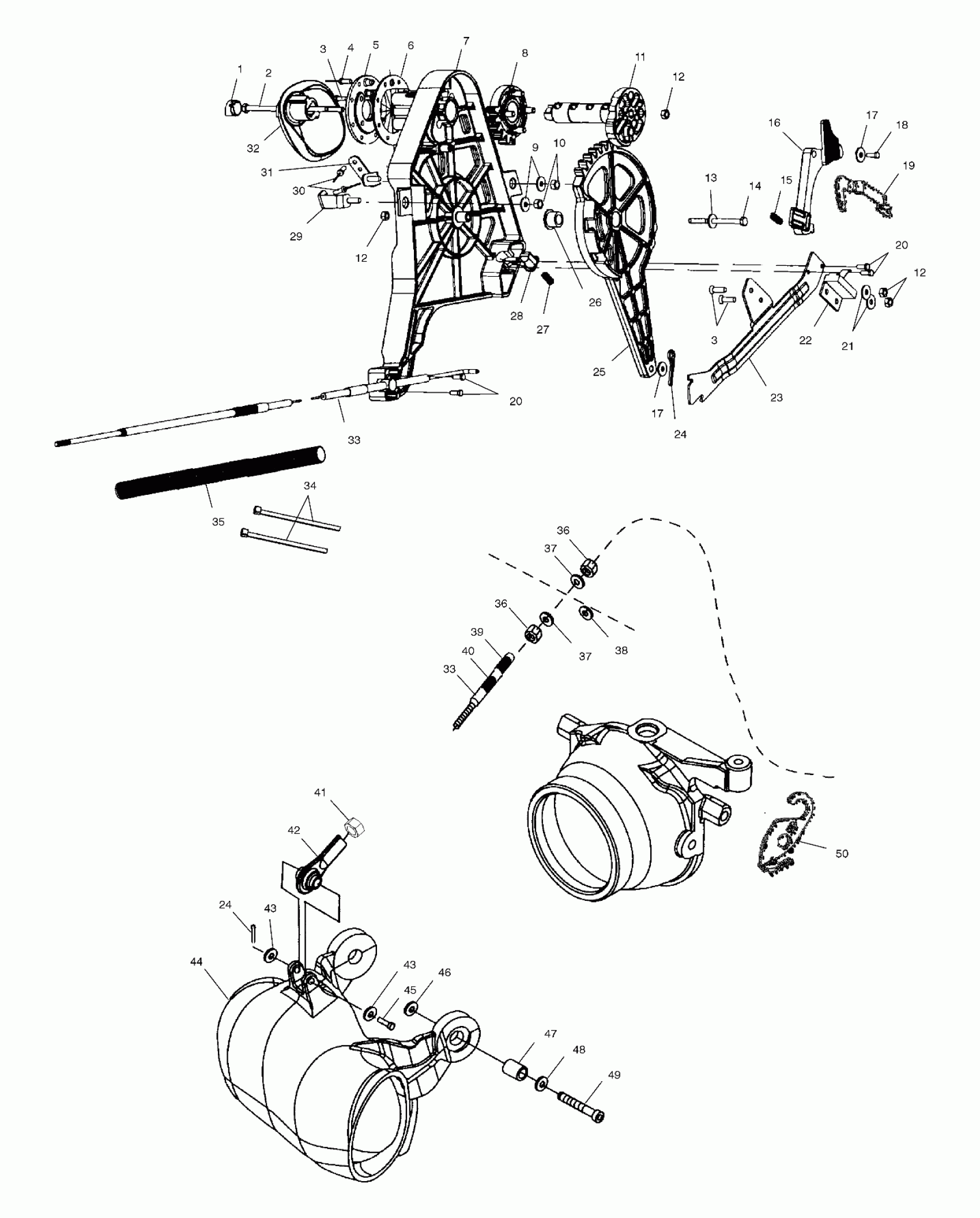

Polaris VIRAGE - W035197DA/W035197IA REVERSE - W035197DA/W035197IA (4980998099B03) Diagram

#

Description
Price

1

Cap

5433677-070

Unavailable

2

SCR-M6X1.00X145-HX/FL-SS

7516816

$29.99

3

Screw

7517669

Unavailable

3

Screw

7517669

Unavailable

4

Rivet

7661040

$0.54

5

Flange

5434066

$11.51

6

Gasket

5811982

Unavailable

7

Plate, Base

5434973

Unavailable

8

Pinion

5434067

Unavailable

9

WASHER-6.4MMX18X1.6,SS

7556094

$4.76

10

Nut

7546705

$4.76

11

Shaft, Cam

5433955

Unavailable

12

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

12

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

12

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

13

Washer, Flat

7555856

$3.19

14

Screw

7516806

Unavailable

15

Spring, Compression

7041888

$13.10

16

Arm, Reverse Lock

5433676

Unavailable

17

Washer, Flat

7555837

$1.59

17

Washer, Flat

7555837

$1.59

18

Screw

7511882

$1.59

19

Bracket, Arm Lock

5412058

$28.73

20

Screw

7512049

Unavailable

20

Screw

7512049

Unavailable

21

Washer, Flat

7555857

Unavailable

22

Switch, Limit

2410241

Unavailable

23

Bracket, Reverse, Support

5245180

$57.94

24

Pin, Cotter

7661010

$1.19

24

Pin, Cotter

7661010

$1.19

25

Arm, Reverse

5433871

Unavailable

26

Bushing

5433647

Unavailable

27

Spring, Compression

7041995

$13.10

28

Plunger

5433673

Unavailable

29

Bracket, Reverse Plate, Rear

5245634

$9.84

30

Rivet

7661041

$0.49

31

Bracket, Reverse Plate, Forward

5245635

Unavailable

32

Handle, Reverse

5433605-070

Unavailable

33

Cable, Reverse

7081090

Unavailable

33

Cable, Reverse

7081090

Unavailable

34

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

35

Conduit

4010051-100

$9.89

36

Nut, Jam

7542528

$2.19

36

Nut, Jam

7542528

$2.19

37

Washer, Flat

7556232

Unavailable

37

Washer, Flat

7556232

Unavailable

38

Washer, Lock

7571625

$2.38

39

Seal, Rod

5411818

Unavailable

40

Seal, Rod

5412206

$2.94

41

Nut

7542150

Unavailable

42

Rod End

7061062

$27.94

43

Washer, Flat

7555839

Unavailable

43

Washer, Flat

7555839

Unavailable

44

Gate, Reverse, Directional

5434049

Unavailable

45

Pin, Clevis

7661117

Unavailable

46

Washer

7555866

Unavailable

47

Collar

5020683

$6.59

48

Washer, Flat

7555874

$2.38

49

Screw

7515368

Unavailable

50

Bracket, Reverse Stop

5434272

Unavailable
