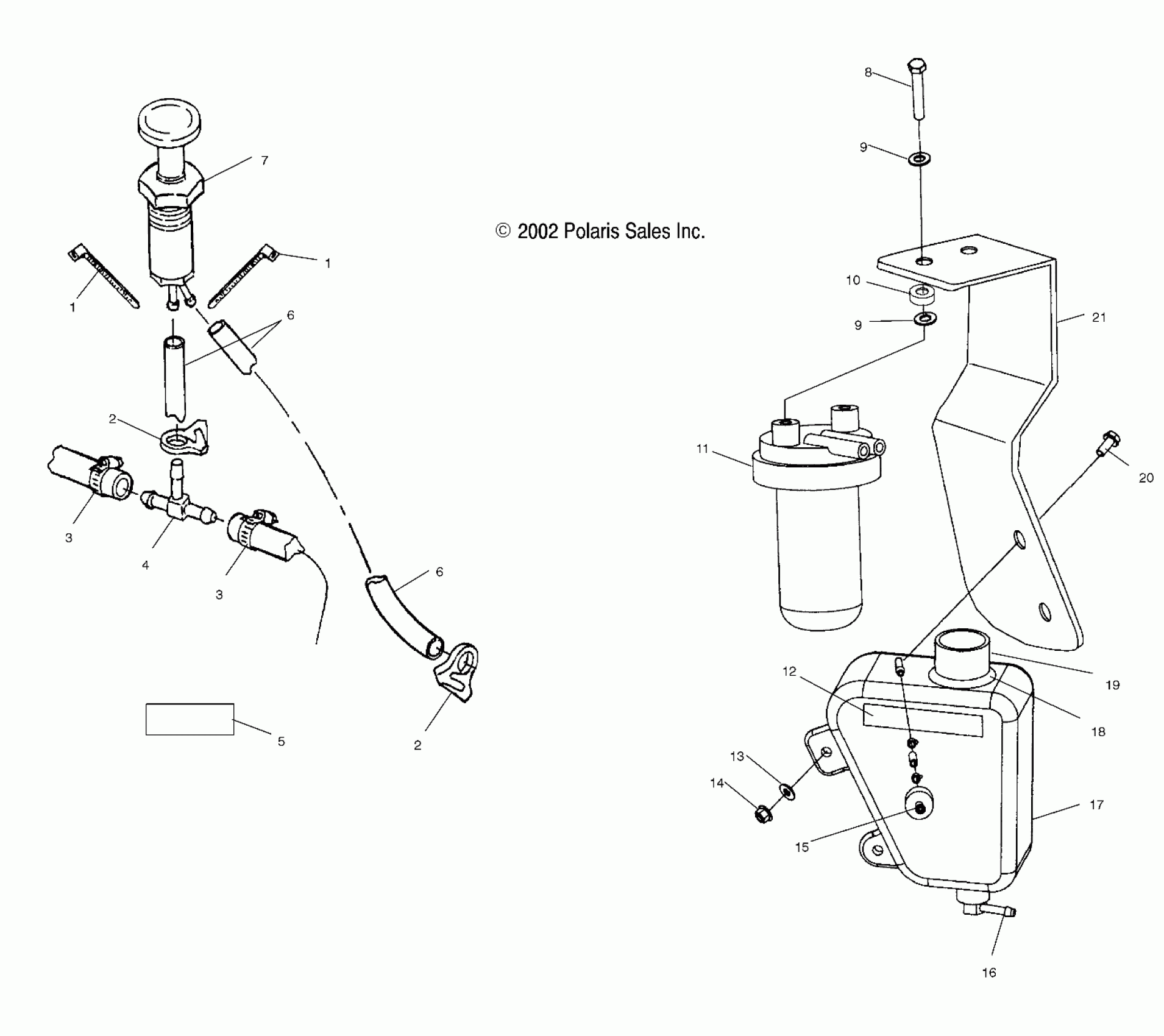

Polaris VIRAGE - W035197DA/W035197IA ENGINE FOGGING SYSTEM - W035197DA/W035197IA (4980998099C02) Diagram

Kit, Engine Fogging

2872635

Unavailable

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

Clamp, Hose

7080484

$1.24

Clamp, Hose

7080484

$1.24

Clamp, Hose

7080476

$6.35

Clamp, Hose

7080476

$6.35

Fitting, Tee

7052139

$9.52

Decal, Engine Primer

7075738

$2.94

Line, Oil

8450062

Unavailable

Line, Oil

8450062

Unavailable

Primer, Engine, Fog

3160114

Unavailable

SCREW [SEE FUEL/WATER SEPARATOR PG. B12, REF. 1]

----

Unavailable

WASHER, DISH [SEE FUEL/WATER SEPARATOR PG. B12, REF. 2]

----

Unavailable

WASHER, DISH [SEE FUEL/WATER SEPARATOR PG. B12, REF. 2]

----

Unavailable

SPACER [SEE FUEL/WATER SEPARATOR PG. B12, REF. 3]

----

Unavailable

SEPARATOR, FUEL/WATER [SEE FUEL/WATER SEPARATOR PG. B12, REF. 4]

----

Unavailable

Decal, ``Fogging Oil Only"

7075732

Unavailable

Washer, Flat

7555837

$1.59

NUT

7541931

$5.99

Valve, Check, Vent

7052047

Unavailable

Fitting, 90 Degree

7052138

Unavailable

Tank, Oil

5432362

$35.24

GASKET-OVERFLOW CAP

5810279

$2.41

Cap, Oil Bottle

5432359

$3.33

Screw

7512045

$4.99

Bracket, Fog Bottle

5244295

$42.14
