CRANKSHAFT and PISTON - W035197DA/W035197IA (4980998099C05)

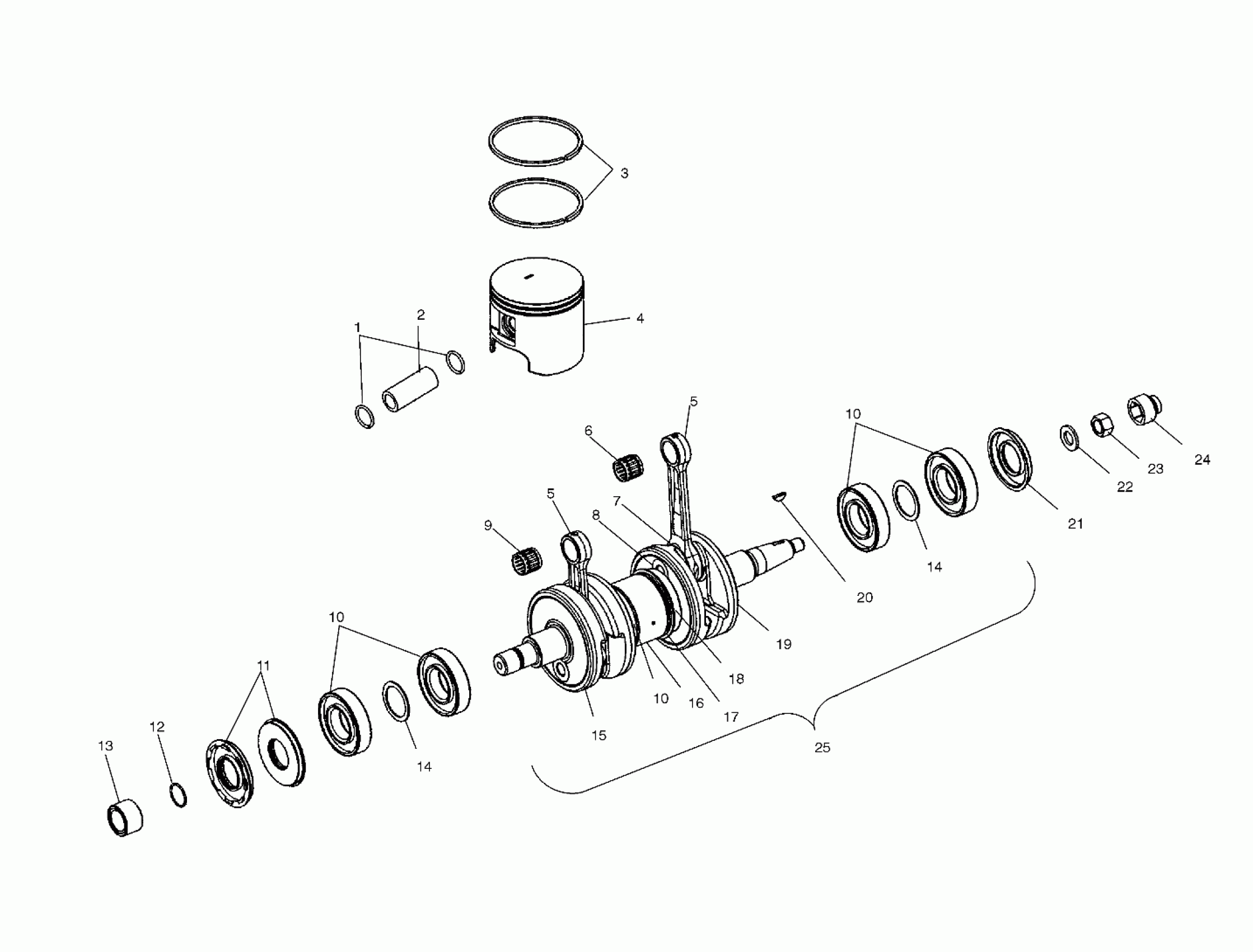

Polaris VIRAGE - W035197DA/W035197IA CRANKSHAFT and PISTON - W035197DA/W035197IA (4980998099C05) Diagram
#
Description
Price
1
Circlip, Piston
3022950
Unavailable
2
Pin, Piston
3021091
Unavailable
3
Kit, Piston Rings [.25mm OS]
2200917
Unavailable
3
Kit, Piston Rings [Std.][2 Rings]
2200918
Unavailable
3
Kit, Piston Rings [.50 mm OS] NOTE: If the number stamped on the head of piston reads ELKO 2194a use the above 3 kits.
2200916
Unavailable
4
Kit, Piston Asm. [Std.][Incl.1,2,3]
2201626
Unavailable
4
Kit, Piston Asm. [.25 mm OS][Incl.1,2,3]
2201627
Unavailable
4
Kit, Piston Asm. [.50 mm OS][Incl.1,2,3]
2201628
Unavailable
5
Kit, Connecting Rod Assembly [Incl. 7-9]
2201022
$305.56
5
Kit, Connecting Rod Assembly [Incl. 7-9]
2201022
$305.56
6
Bearing, Connecting Rod [20 mm]
3584001
Unavailable
7
Washer, Thrust
-------
Unavailable
8
PIN, CRANKSHAFT
-------
Unavailable
9
BEARING, CONNECTING ROD
-------
Unavailable
10
Bearing, Ball
3585503
$31.99
10
Bearing, Ball
3585503
$31.99
10
Bearing, Ball
3585503
$31.99
11
Seal
5411937
Unavailable
12
O-RING
5410613
$1.99
13
Collar, Crankshaft
5131195
Unavailable
14
Bushing
7555905
$3.99
14
Bushing
7555905
$3.99
15
Crankweb, PTO
5131083
Unavailable
16
Crankweb, Center
5131084
Unavailable
17
Labyrinth
5131086
Unavailable
18
BEARING, BALL
3514318
$43.99
19
Crankweb, Mag.
5131085
Unavailable
20
KEY, WOODRUFF
7721117
$24.99
21
Seal
3610044
$24.27
22
WASHER [SEE MAGNETO PG. C8, REF. 5]
-------
Unavailable
23
NUT, PUMP DRIVE [SEE MAGNETO PG. C8, REF. 6]
-------
Unavailable
24
Coupler
5432576
Unavailable
25
Kit, Crankshaft, 2 Cylinder [Incl. 10,14-20]
2202494
Unavailable
