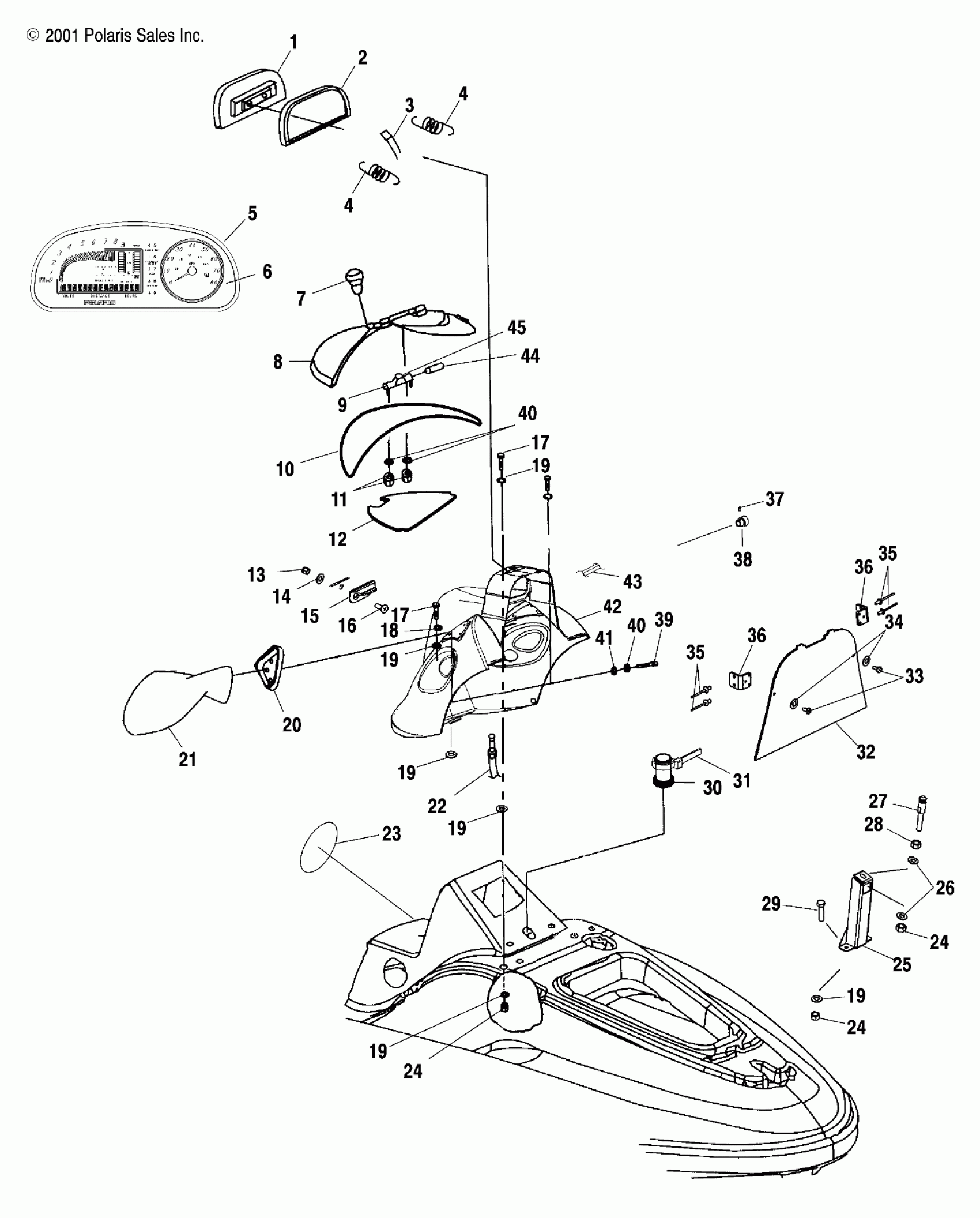

Polaris VIRAGE - W025197D SHROUD - W025197D/W025197I (4971297129A03) Diagram

#

Description
Price

1

Gauge, MFI

3280365

Unavailable

2

Gasket, MFI

5411738

$5.16

3

Line, Pitot, Formed End

8450070-190

$24.25

4

Spring, MFI Mounting

7041931

$1.83

4

Spring, MFI Mounting

7041931

$1.83

5

Kit, MFI Button Replacement

2201593

$25.30

6

Bezel, MFI, Overlay

3280342

$23.81

7

Asm., Console Latch

2653011

$28.73

8

Lid, Console

5434564-1133

$97.99

9

Spring, Torsion, Console

7042007

Unavailable

10

Seal

5521596

Unavailable

11

Nut

7546705

$4.76

12

Pad, Console

5812235

Unavailable

13

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

14

WASHER-6.4MMX18X1.6,SS

7556094

$4.76

15

Hook, Console

5245455

Unavailable

16

Screw

7517669

Unavailable

17

Screw

7517668

$2.06

17

Screw

7517668

$2.06

18

Washer, Lock

7556055

Unavailable

19

Washer, Flat

7555831

Unavailable

19

Washer, Flat

7555831

Unavailable

19

Washer, Flat

7555831

Unavailable

19

Washer, Flat

7555831

Unavailable

19

Washer, Flat

7555831

Unavailable

19

Washer, Flat

7555831

Unavailable

20

Gasket, Mirror, LH

5411557

$4.92

20

Gasket, Mirror, RH

5411558

$4.92

21

Asm., Mirror, LH [Incl. 20]

2631972-070

$119.05

21

Asm., Mirror, RH [Incl. 20]

2631973-070

$106.35

22

Cable, Choke

7081056

Unavailable

23

Grommet, Access

5411674

$9.84

24

NUT, NYLOK

7546804

$1.19

24

NUT, NYLOK

7546804

$1.19

24

NUT, NYLOK

7546804

$1.19

25

Post, Door Latch

1821213

Unavailable

26

Washer, Flat

7555835

$0.69

27

Pin, Latch

5132781

$24.60

28

Nut

7547187

$0.95

29

Screw

7517539

Unavailable

30

Grommet, Deck, Wire Harness

5411664

Unavailable

31

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

32

Cover, Shroud

5812284

$23.81

33

Screw

7511873

Unavailable

34

Washer, Flat

7555837

$1.59

35

Rivet

7621220

$2.38

35

Rivet

7621220

$2.38

36

Bracket, Shroud

5245451

Unavailable

36

Bracket, Shroud

5245451

Unavailable

37

Screw

2080005

$0.69

38

Knob

7081037

$9.05

39

Screw

7516805

$0.71

40

Washer, Lock

7552613

Unavailable

40

Washer, Lock

7552613

Unavailable

41

WASHER-6.4MMX18X1.6,SS

7556094

$4.76

42

Shroud, Steering

5434560-1133

Unavailable

43

Bumper, Door/Shroud

5812076

$10.81

44

Pin, Hinge

5333698

Unavailable

45

Hinge, Console

5433384

Unavailable
