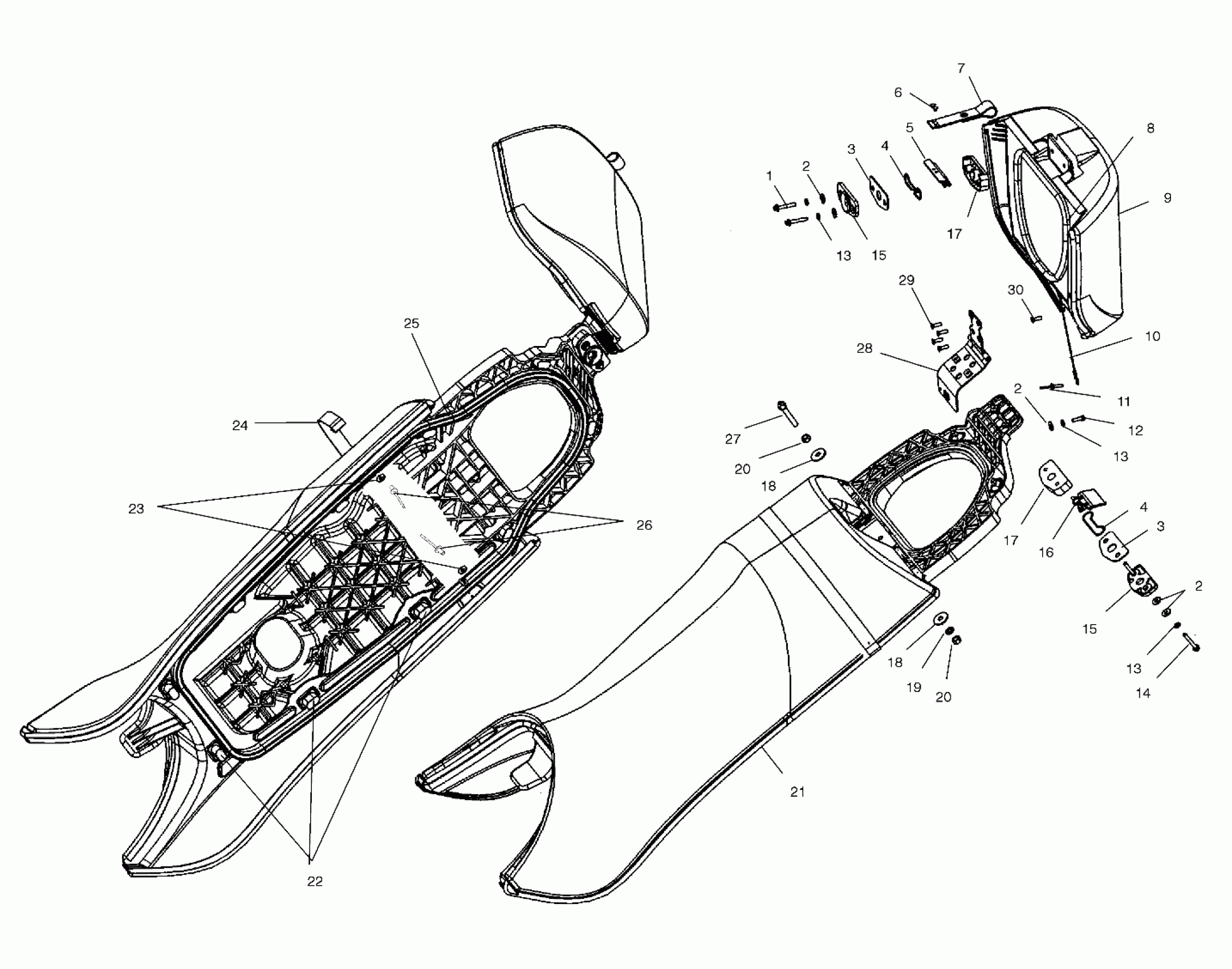

Polaris VIRAGE - W025197D SEAT - W025197D/W025197I (4971297129A11) Diagram

#

Description
Price

-

Asm., Seat, Virage [Incl. 1-30]

2682964-371

Unavailable

1

Screw

7516806

Unavailable

2

Washer, Flat

7555839

Unavailable

2

Washer, Flat

7555839

Unavailable

2

Washer, Flat

7555839

Unavailable

3

Plate, Seat Base Latch

5211314

$4.92

3

Plate, Seat Base Latch

5211314

$4.92

4

Spring, Seat Base Latch

7042036

Unavailable

4

Spring, Seat Base Latch

7042036

Unavailable

5

Handle, Seat Latch

5433779

$10.63

6

RIVET

7621478

Unavailable

7

Strap, Seat Latch

5812025

Unavailable

8

Seal, Seat, Rear

5411807

Unavailable

9

Asm., Seat, Rear

2682962-371

Unavailable

9

Cover, Seat, Rear

2682663-371

$109.19

10

Cable, Limiter, Seat

7080914

$23.02

11

Rivet

7661104

$3.19

12

Screw

7517805

$0.71

13

Washer, Lock

7555838

Unavailable

13

Washer, Lock

7555838

Unavailable

13

Washer, Lock

7555838

Unavailable

14

Screw

7517806

$1.56

15

Plate, Bottom, Seat Base Latch

5431357

$5.71

15

Plate, Bottom, Seat Base Latch

5431357

$5.71

16

Handle, Seat Base Latch

5431358

Unavailable

17

Plate, Top, Seat Base Latch

5431359

Unavailable

17

Plate, Top, Seat Base Latch

5431359

Unavailable

18

WASHER, FLAT

7555846

$5.56

18

WASHER, FLAT

7555846

$5.56

19

Washer, Lock

7552607

$1.39

20

Nut

7542454

Unavailable

20

Nut

7542454

Unavailable

21

Asm., Seat, Main

2682772-370

$474.99

21

Cover, Seat, Main

2682665-370

Unavailable

22

Bumper, Seat

5521490

Unavailable

23

Washer

5245090

Unavailable

24

Strap, Seat

2682677-370

Unavailable

25

Seal, Seat, Main

5521536

$61.87

26

Rivet

7661108

Unavailable

27

Plunger, Latch

5020753

Unavailable

28

Asm., Hinge, Seat

1013431

$70.24

29

Screw

7517669

Unavailable

30

Screw

7517717

$1.11
