HULL and BODY - W025197D/W025197I (4971297129A05)

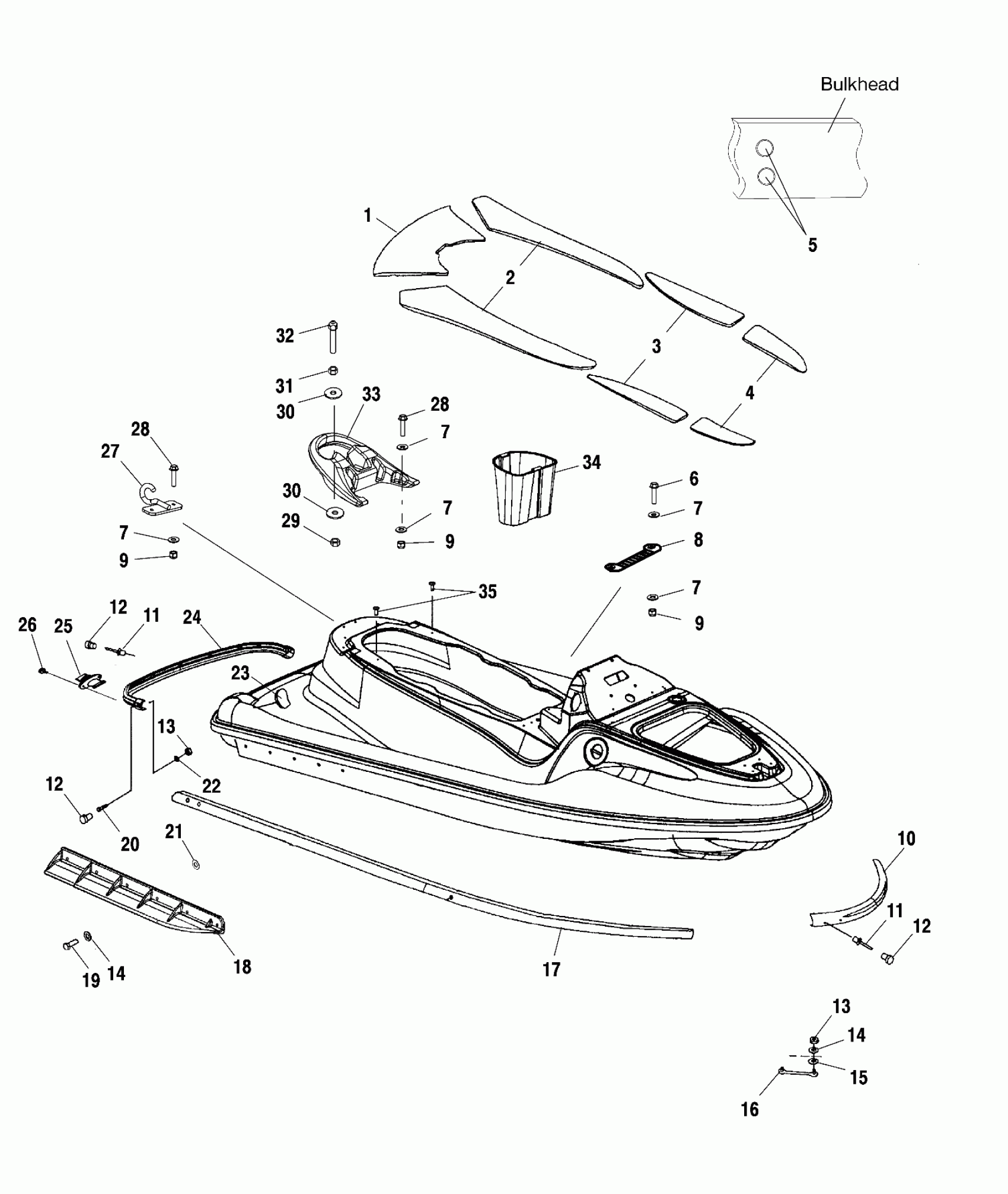

Polaris VIRAGE - W025197D HULL and BODY - W025197D/W025197I (4971297129A05) Diagram
#
1
Pad, Boarding
5812376-318
Unavailable
2
Pad, Footwell, Rear, LH
5812374-318
Unavailable
2
Pad, Footwell, Rear, RH
5812375-318
Unavailable
3
Pad, Footwell, Center, LH
5812372-318
Unavailable
3
Pad, Footwell, Center, RH
5812373-318
Unavailable
4
Pad, Footwell, Front, LH
5812370-318
Unavailable
4
Pad, Footwell, Front, RH
5812371-318
Unavailable
5
Grommet
5411158
Unavailable
6
Screw
7517798
$3.99
7
WASHER-6.4MMX18X1.6,SS
7556094
$4.79
7
WASHER-6.4MMX18X1.6,SS
7556094
$4.79
7
WASHER-6.4MMX18X1.6,SS
7556094
$4.79
7
WASHER-6.4MMX18X1.6,SS
7556094
$4.79
7
WASHER-6.4MMX18X1.6,SS
7556094
$4.79
8
Plate, Seat Tongue
5433671
Unavailable
9
NUT-6 MM X 1.00-NYLOK-SS
7546704
$1.75
9
NUT-6 MM X 1.00-NYLOK-SS
7546704
$1.75
9
NUT-6 MM X 1.00-NYLOK-SS
7546704
$1.75
10
Bumper, Front
5411758-070
Unavailable
11
Rivet
7621511
Unavailable
11
Rivet
7621511
Unavailable
12
Plug, Bumper, Rear
5431994-070
Unavailable
12
Plug, Bumper, Rear
5431994-070
Unavailable
12
Plug, Bumper, Rear
5431994-070
Unavailable
13
Nut, Nylok
7542133
Unavailable
13
Nut, Nylok
7542133
Unavailable
14
Washer, Flat
7555839
Unavailable
14
Washer, Flat
7555839
Unavailable
15
Washer, Dish, Rubber
7555870
Unavailable
16
STRAP, BOW
2670150
Unavailable
17
Rail, Rub, Side, LH
5521568-070
Unavailable
17
Rail, Rub, Side, RH
5521569-070
Unavailable
18
Sponson, LH
5432274-070
Unavailable
18
Sponson, RH
5432275-070
Unavailable
19
Screw
7515198
Unavailable
20
Bolt, Carriage
7517320-070
Unavailable
21
Washer, Rubber
5811440
$2.07
22
Washer, Flat
7555836
$3.99
23
Pad, Heel, LH
5811918
Unavailable
23
Pad, Heel, RH
5811919
Unavailable
24
Bumper, Rear
5433531-070
Unavailable
25
Plug, Bilge
1060125
Unavailable
26
Screw
7511882
Unavailable
27
Hook, Tow
2632218
Unavailable
28
Screw
7517644
Unavailable
28
Screw
7517644
Unavailable
29
Nut, Nylok
7542455
Unavailable
30
WASHER, FLAT
7555846
$5.59
30
WASHER, FLAT
7555846
$5.59
31
Nut
7542454
Unavailable
32
Plunger, Latch
5020753
Unavailable
33
Handle, Grab
5433474-070
Unavailable
34
Bucket, Storage, Rear
5433473
Unavailable
35
Clip, Xmas Tree
5432783-070
Unavailable
