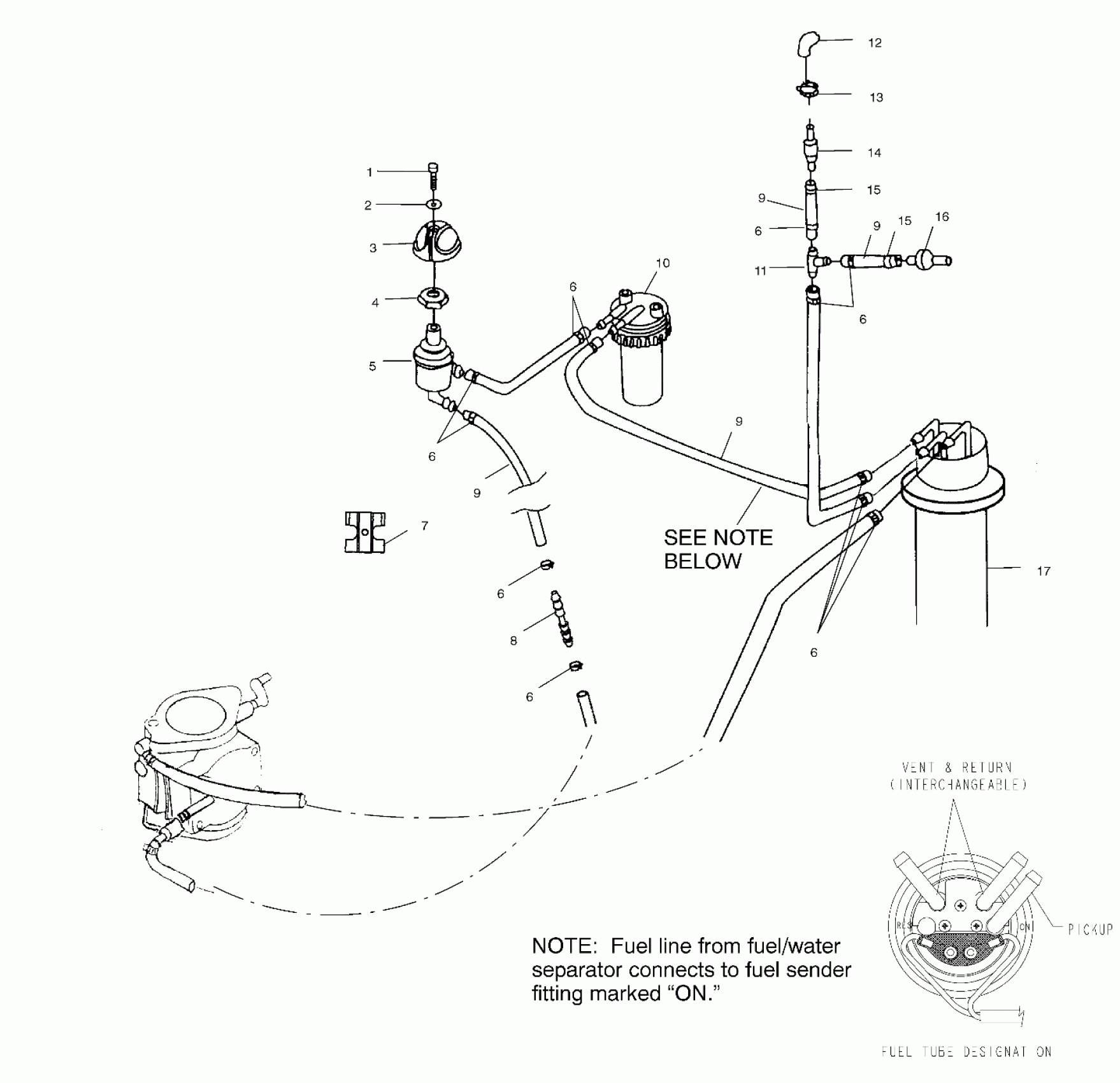

Polaris VIRAGE - W025197D FUEL SYSTEM - W025197D/W025197I (4971297129A10) Diagram

#

Description
Price

1

Screw

7516302

$3.99

2

Washer, Flat

7555840

$3.35

3

Knob, Fuel Valve, Black

5432836-070

Unavailable

4

NUT, FUEL VALVE

5431451

Unavailable

5

Valve, Fuel

7052159

$43.99

6

Clamp, Hose

7080476

$6.39

6

Clamp, Hose

7080476

$6.39

6

Clamp, Hose

7080476

$6.39

6

Clamp, Hose

7080476

$6.39

6

Clamp, Hose

7080476

$6.39

6

Clamp, Hose

7080476

$6.39

6

Clamp, Hose

7080476

$6.39

7

T-Clip

7080482

$6.39

8

Fitting

7052329

Unavailable

9

Line, Fuel

8450046-1525

Unavailable

9

Line, Fuel

8450046-1525

Unavailable

9

Line, Fuel

8450046-1525

Unavailable

9

Line, Fuel

8450046-1525

Unavailable

10

SEPARATOR, FUEL/WATER [SEE FUEL/WATER SEPARATOR PG. B12, REF. 5]

-------

Unavailable

11

Fitting, Tee

7052111

Unavailable

12

Grommet, Vent

5410682

Unavailable

13

Cable Tie

7080483

Unavailable

14

Valve, Check

7051015

Unavailable

15

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

15

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

16

Valve, Vacuum Check

7052118

Unavailable

17

ASM., FUEL SENDER [SEE FUEL TANK PG. A9, REF. 19]

-------

Unavailable
