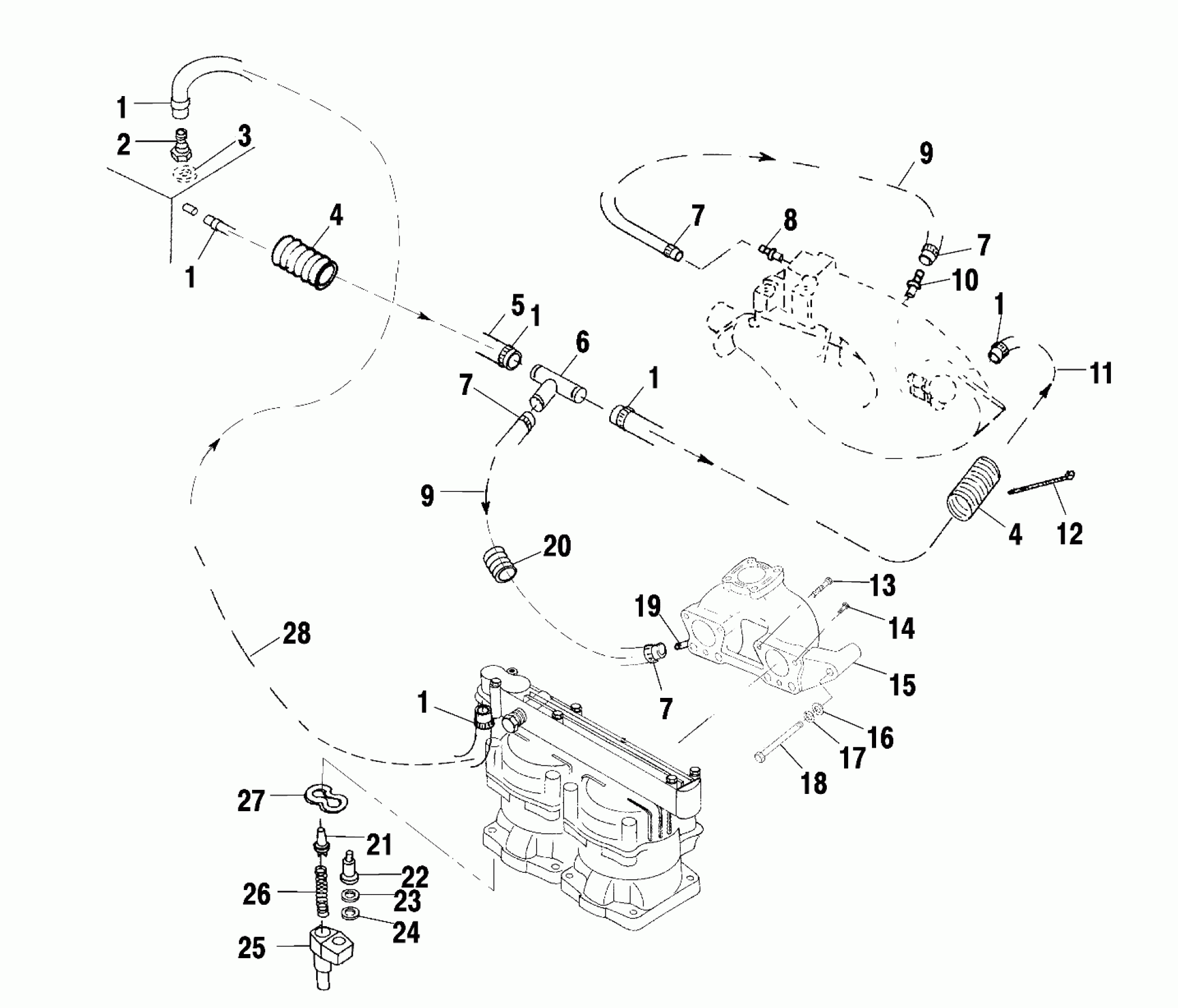

Polaris VIRAGE - W025197D COOLING SYSTEM - W025197D/W025197I (4971297129B08) Diagram

#

Description
Price

1

Clamp, Hose

7080475

Unavailable

1

Clamp, Hose

7080475

Unavailable

1

Clamp, Hose

7080475

Unavailable

1

Clamp, Hose

7080475

Unavailable

1

Clamp, Hose

7080475

Unavailable

1

Clamp, Hose

7080475

Unavailable

2

Fitting, Thru-Hull

5431444-133

Unavailable

3

Gasket

5811317

$0.87

4

Conduit, Flex

5521287-45

$7.38

4

Conduit, Flex

5521287-45

$7.38

5

Hose, Outlet, Pump

5411049

Unavailable

6

Fitting, Tee

5431784

Unavailable

7

Clamp, Hose

7080476

$6.35

7

Clamp, Hose

7080476

$6.35

7

Clamp, Hose

7080476

$6.35

7

Clamp, Hose

7080476

$6.35

8

Fitting, Screen, Exhaust

7052128

Unavailable

9

Hose, Water

8450054-100

Unavailable

9

Hose, Water

8450054-100

Unavailable

10

Fitting, Injector, Exhaust

5020747

$5.56

11

Hose, Inlet

5411050

Unavailable

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

13

Screw

7516727

Unavailable

14

Screw

7516725

Unavailable

15

Asm., Exhaust Manifold

1260694-329

Unavailable

16

Washer, Flat

7555856

$3.19

17

Washer, Lock

7552611

Unavailable

18

Screw

7517004

Unavailable

19

Fitting, Drain Exhaust

5020746

Unavailable

20

Conduit, Flex

5521398-13

$5.71

21

Valve, Pop-Off

5432799

$4.92

22

Thermostat, 143 Degrees F.

7051008

Unavailable

23

Gasket, Thermostat

5412014

Unavailable

24

Washer

7556174

Unavailable

25

Cover, Thermostat, Machined

5631136

Unavailable

26

Spring, Compression

7041310

$1.83

27

Seal, Thermostat Housing

5410860

Unavailable

28

Hose, Water Out

5411479

Unavailable
