SHROUD - W015197D (4964826482A003)

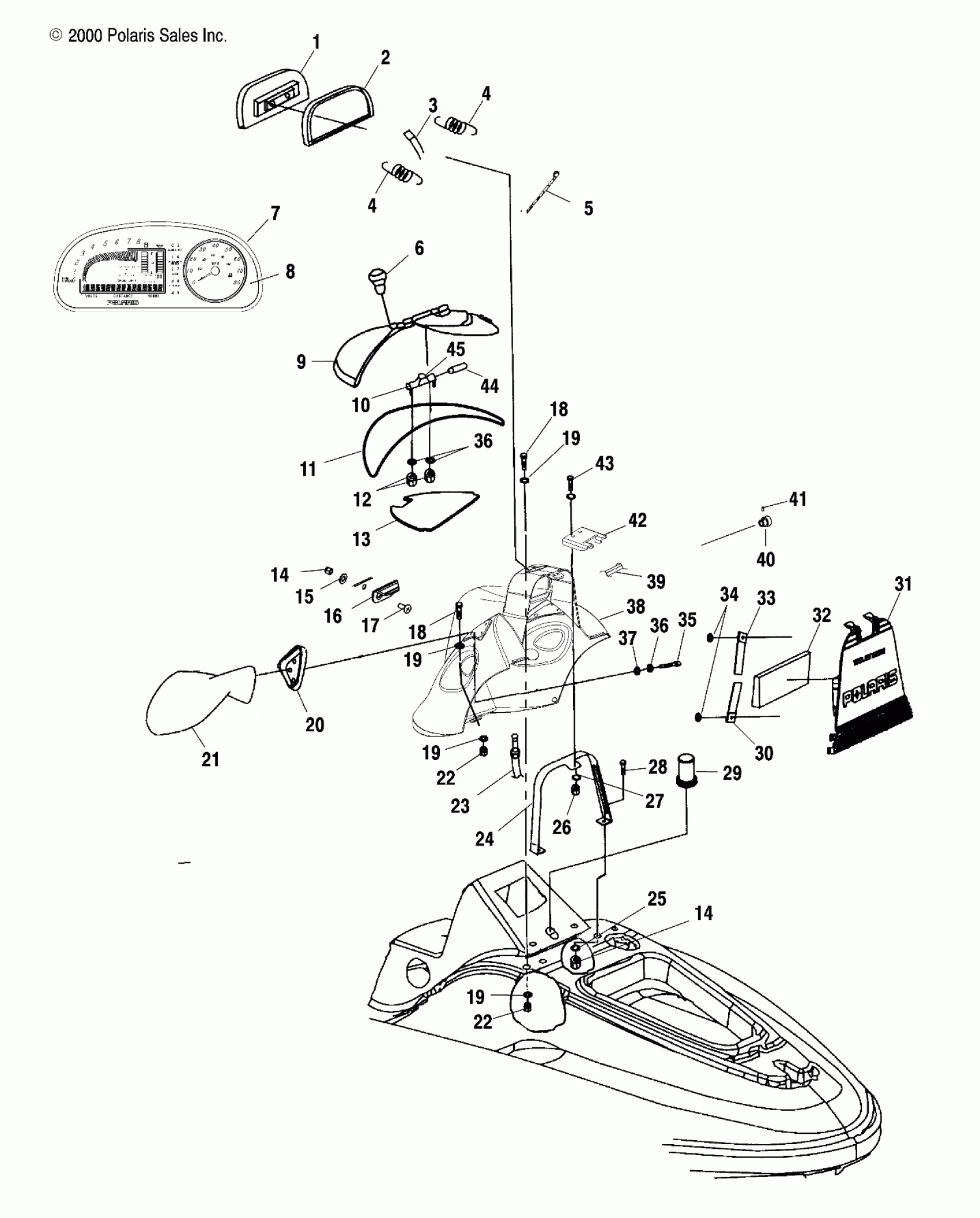

Polaris VIRAGE - W015197D SHROUD - W015197D (4964826482A003) Diagram
#
1
GAUGE-MFI,VIRAGE,RVS RPM LIMIT
3280365
Unavailable
2
GASKET-MFI
5411738
Unavailable
3
PITOT LINE,90DEG FORMED,190CM Substituted by 8450070-235
8450070-190
Unavailable
4
SPRING,MOUNTING,MFI
7041931
Unavailable
4
SPRING,MOUNTING,MFI
7041931
Unavailable
5
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
6
LATCH ASM,CONSOLE
2653011
Unavailable
7
MFI,BUTTON REPLACEMENT,KIT
2201593
Unavailable
8
BEZEL-MFI,OVERLAY
3280342
Unavailable
9
LID-CONSOLE,CAT BLUE
5434176-1119
Unavailable
10
SPRING-TORSION,CONSOLE,SS Substituted by 7042007
7041754
Unavailable
11
SEAL-BULB,CONSOLE LID
5521579
Unavailable
12
NUT, 6 MM.,S.S.(10)
7546705
$4.79
13
PAD-CONSOLE
5812235
Unavailable
14
NUT-6 MM X 1.00-NYLOK-SS
7546704
$1.75
14
NUT-6 MM X 1.00-NYLOK-SS
7546704
$1.75
15
WASHER-6.4MMX18X1.6,SS
7556094
$4.79
16
HOOK-CONSOLE,LATCH
5245455
Unavailable
17
SCREW (10)
7517669
Unavailable
18
SCREW(10)
7517668
Unavailable
18
SCREW(10)
7517668
Unavailable
19
WASHER,FLAT,S.S.(10)
7555874
$2.39
19
WASHER,FLAT,S.S.(10)
7555874
$2.39
19
WASHER,FLAT,S.S.(10)
7555874
$2.39
19
WASHER,FLAT,S.S.(10)
7555874
$2.39
20
GASKET-MIRROR,LH
5411557
Unavailable
20
GASKET-MIRROR,RH
5411558
Unavailable
21
MIRROR,LH,BLACK,ASM. (Incl. 20)
2631972-070
Unavailable
21
MIRROR,RH,BLACK,ASM. (Incl. 20)
2631973-070
Unavailable
22
NUT,HEX,(10)
7546804
$1.49
22
NUT,HEX,(10)
7546804
$1.49
23
CABLE,CHOKE,SINGLE CARB Substituted by 7081020
7080926
Unavailable
24
BRKT,SUPPORT,SHROUD
5244673
Unavailable
25
WASHER, FLAT, S.S.(10)
7555839
Unavailable
26
NUT, HEX, S.S.(10)
7541931
$4.79
27
WASHER, FLAT, S.S.(10)
7555837
Unavailable
28
BOLT(10)
7516807
Unavailable
29
GROMMET-DECK,WIRE HARNESS
5411664
Unavailable
30
STRAP-TOOL KIT,LOWER
2690151
Unavailable
31
COVER-WIRE,SHROUD,BLK
5433210-070
Unavailable
32
Kit, Tool (See Tool Kit Pg. C3)
-------
Unavailable
33
STRAP-TOOL KIT,UPPER
2690150
Unavailable
34
RING-RETAINING,.25 STUD
7710517
Unavailable
35
SCREW, S.S.(10)
7516805
Unavailable
36
WASHER, LOCK(10)
7552613
Unavailable
36
WASHER, LOCK(10)
7552613
Unavailable
37
WASHER-6.4MMX18X1.6,SS
7556094
$4.79
38
SHROUD-STEER,W/CHK,RV,CAT BLUM Substituted by 2202006
5434218-1119
Unavailable
39
BUMPER,DOOR/SHROUD
5812076
Unavailable
40
KNOB,CHOKE
2080004
Unavailable
41
Screw
2080005
Unavailable
42
PLATE,LATCH,RECEIVER
5244670
Unavailable
43
SCR-#10-32X3/4,FLAT,SOC,SS(10)
7517879
Unavailable
44
PIN-HINGE,CONSOLE
5333698
Unavailable
45
HINGE-CONSOLE,3/16 PIN
5433384
Unavailable
