PROPULSION - W015197D (4964826482B002)

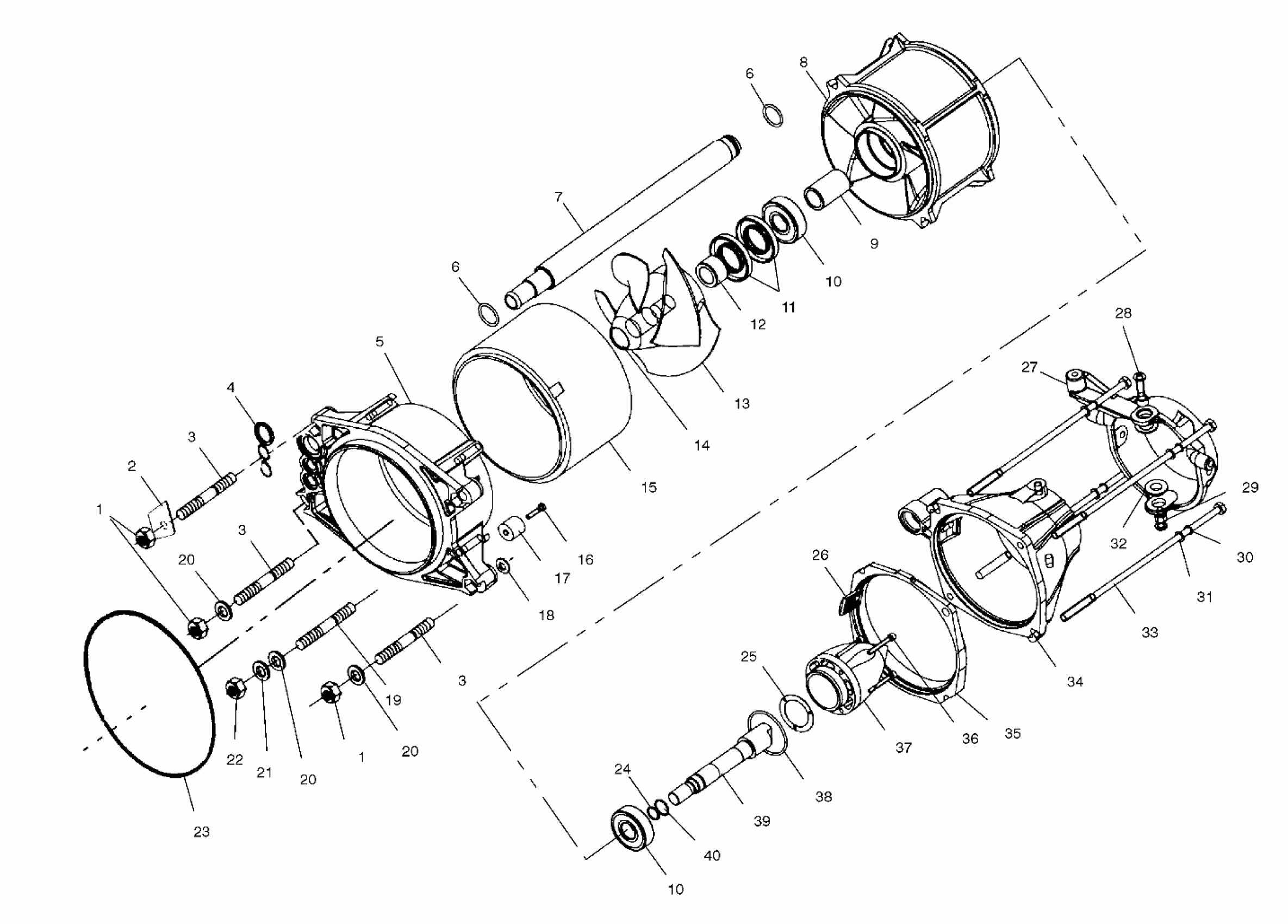

Polaris VIRAGE - W015197D PROPULSION - W015197D (4964826482B002) Diagram
#
1
NUT,HEX,S.S.(10)
7542455
Unavailable
1
NUT,HEX,S.S.(10)
7542455
Unavailable
2
BRKT,STEERING CABLE NUT
5244556
Unavailable
3
STUD,MOUNT,PUMP,1.38 INT.
5132355
Unavailable
3
STUD,MOUNT,PUMP,1.38 INT.
5132355
Unavailable
3
STUD,MOUNT,PUMP,1.38 INT.
5132355
Unavailable
4
SEAL,WATER PIPE
5411107
Unavailable
5
HSG,PUMP,W/O RING,INT STUD
5131573
Unavailable
6
O RING,(10)
5410735
Unavailable
6
O RING,(10)
5410735
Unavailable
7
PIPE,WATER,ENG.(X-PUMP)
5432269
Unavailable
8
STATOR,PUMP
5130983
Unavailable
9
Spacer
5010294
Unavailable
10
Bearing
3514008
Unavailable
10
Bearing
3514008
Unavailable
11
SEAL,BRG,STATOR
3610043
Unavailable
12
Spacer, Impeller
5010295
Unavailable
13
IMPELLER,NUJET,4.7
5132372
Unavailable
14
SEAL-IMPELLER/SHAFT
5411644
Unavailable
15
EXTENSION,PUMP
5131196
Unavailable
16
SCREW(10)
7522019
Unavailable
17
ANODE-ZINC Substituted by 2200745
5630598
Unavailable
18
WASHER,PUMPSTUD,SEAL
7555941
Unavailable
19
STUD,MOUNT,PUMP,LONG INT.
5132111
Unavailable
20
Washer
7555966
$2.63
20
Washer
7555966
$2.63
20
Washer
7555966
$2.63
21
WASHER, LOCK, S.S.(10)
7552607
Unavailable
22
NUT, HEX, S.S.,(10)
7542454
Unavailable
23
O-RING,PUMP HSG/HULL
5410652
Unavailable
24
O-RING,(10)
5410817
Unavailable
25
SEAL,TAILCONE
5811984
Unavailable
26
SCREEN,ENG.INLET
5431523
Unavailable
27
NOZZLE,STRG,SLT
5130999
Unavailable
28
BOLT, S.S.(10)
7515366
Unavailable
29
Collar
5130938
Unavailable
30
WASHER, LOCK, S.S.(10)
7552610
Unavailable
31
WASHER, FLAT, S.S.,(10)
7555835
Unavailable
32
BRG,STRG.NOZZLE,(10)
5431518
Unavailable
33
Bolt
7515389
Unavailable
34
NOZZLE,STAT.,0X4 WEDGE
5131569
Unavailable
35
WEDGE,PUMP,0X4,MOLDED
5432841
Unavailable
36
SCREW(10)
7512064
Unavailable
37
Cone, Pump
5431519
Unavailable
38
O-RING(10)
5410819
Unavailable
39
SHAFT-STUB
5132674
Unavailable
40
O-RING(10)
5410818
Unavailable
