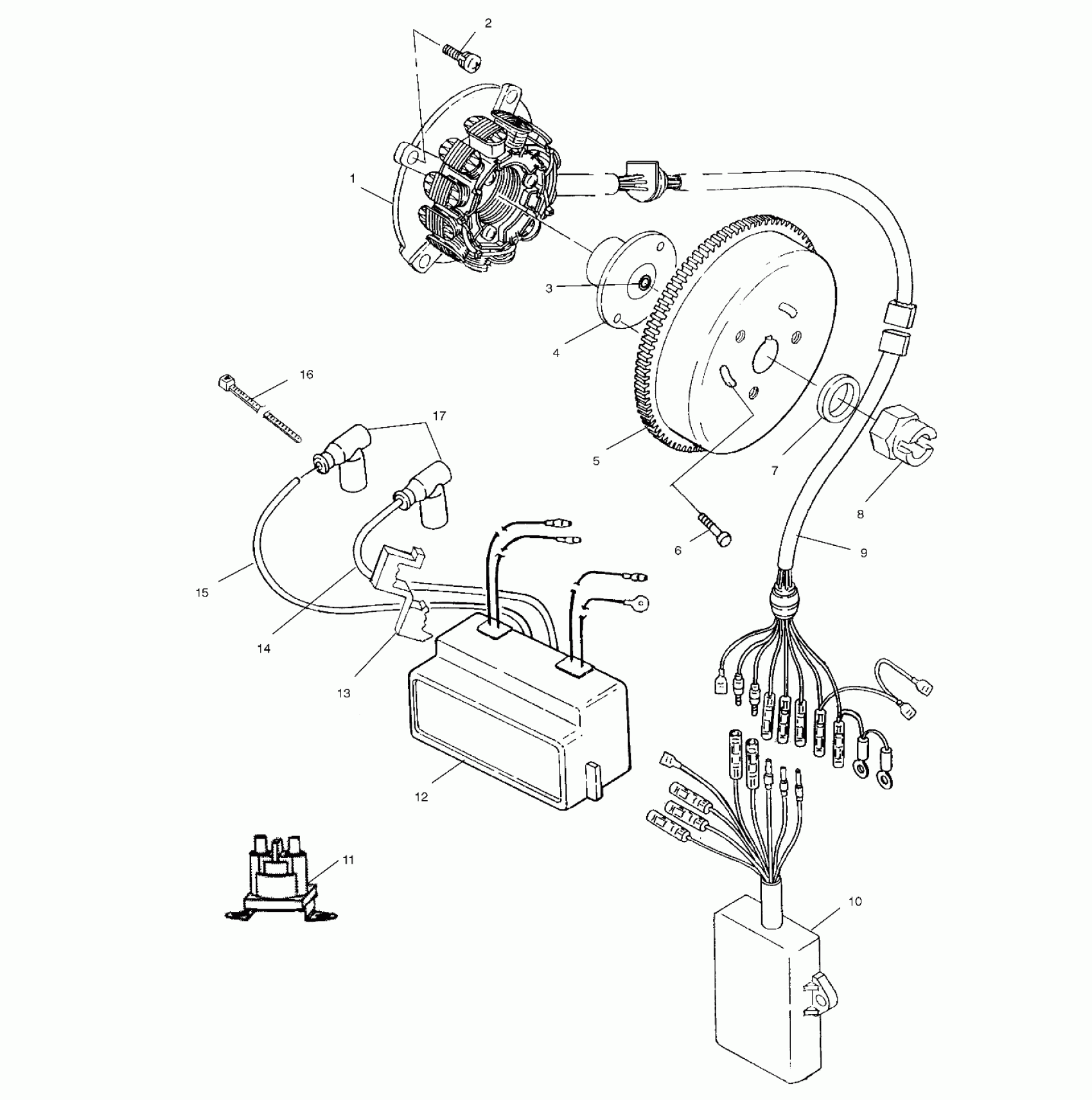

Polaris VIRAGE - W015197D MAGNETO - W015197D (4964826482C009) Diagram

#

Description

Price

1

STATOR ASM.TWIN PWC GEN-3 PVL

4010172

Unavailable

2

SCR-M6X1.0X25 HXS0CCS 12.9P

7517620

Unavailable

3

O-Ring

5411320

Unavailable

4

Holder, Magnet

5432282

Unavailable

5

FLYWHEEL ASM.PWC GEN-3 PVL

4010189

Unavailable

6

KIT,TIMING SCREWS,PVL(PWC)

2201228

Unavailable

7

WASHER(10)

7555907

$5.59

8

Nut

7546909

Unavailable

9

HARNESS-8 WIRE STATOR,2CYL

2460718

Unavailable

10

CONTROLLER-IGN PWC 700 SC [No Longer Available]

4010558

Unavailable

11

SOLENOID-STARTER,EXTERNAL

4010401

Unavailable

12

COIL,IGNITION,PVL,2ND GEN,2CYL

4010175

Unavailable

13

T-CLIP(10)

7080471

$3.59

14

SPARK PLUG WIRE,PVL 42CM Substituted by 4010173-71

4010173-42

Unavailable

15

SPARK PLUG WIRE,PVL 56CM Substituted by 4010173-71

4010173-56

Unavailable

16

STRAP, PANDUIT,4 IN.(10)

7080483

Unavailable

17

CAP, SPARKPLUG

4020155

$34.99
