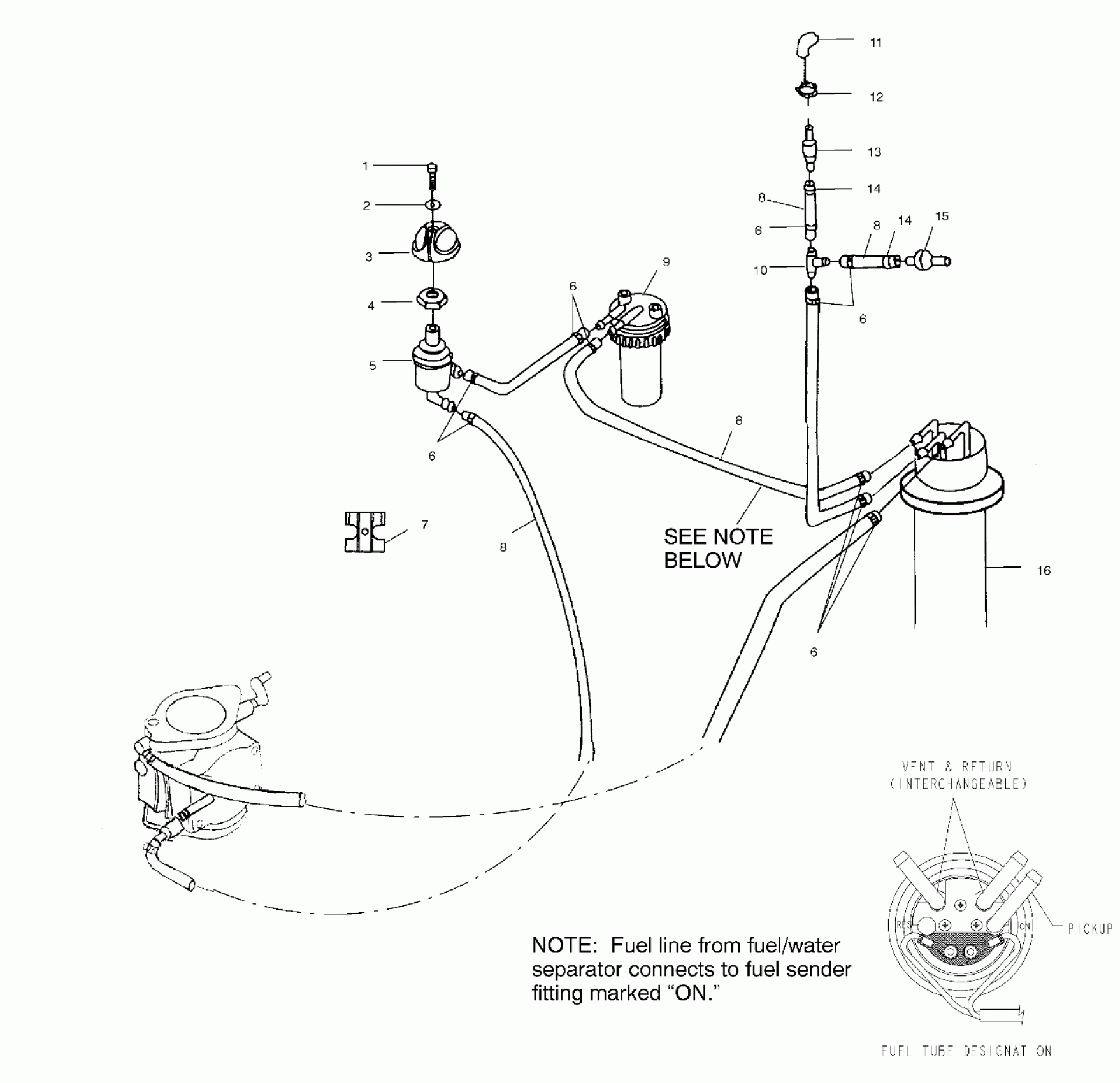

Polaris VIRAGE - W015197D FUEL SYSTEM - W015197D (4964826482A010) Diagram

#

Description
Price

1

SCREW, S.S.(10)

7516302

$3.99

2

WASHER, FLAT, S.S.(10)

7555840

$3.35

3

KNOB,FUELVALVE,BLK.

5432836-070

Unavailable

4

NUT, FUEL VALVE

5431451

Unavailable

5

VALVE,ON/OFF

7052159

$43.99

6

CLAMP, HOSE, S.S.(10)

7080476

$6.39

6

CLAMP, HOSE, S.S.(10)

7080476

$6.39

6

CLAMP, HOSE, S.S.(10)

7080476

$6.39

6

CLAMP, HOSE, S.S.(10)

7080476

$6.39

6

CLAMP, HOSE, S.S.(10)

7080476

$6.39

7

T-CLIP(10)

7080482

$6.39

8

FUEL LINE,1/4 ID(1525 CM.) Substituted by 8450046-250

8450046-1525

Unavailable

8

FUEL LINE,1/4 ID(1525 CM.) Substituted by 8450046-250

8450046-1525

Unavailable

8

FUEL LINE,1/4 ID(1525 CM.) Substituted by 8450046-250

8450046-1525

Unavailable

8

FUEL LINE,1/4 ID(1525 CM.) Substituted by 8450046-250

8450046-1525

Unavailable

9

Separator, Fuel/Water (See Fuel/Water Separator Pg. C1, Ref. 5)

-------

Unavailable

10

FITTING,TEE

7052111

Unavailable

11

Grommet, Vent

5410682

Unavailable

12

STRAP, PANDUIT,4 IN.(10)

7080483

Unavailable

13

VALVE,CHECK,RELIEF

7051015

Unavailable

14

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

14

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

15

VALVE,VACUUM CHECK

7052118

Unavailable

16

Asm., Fuel Sender (See Fuel Tank Pg. A9, Ref. 19)

-------

Unavailable
