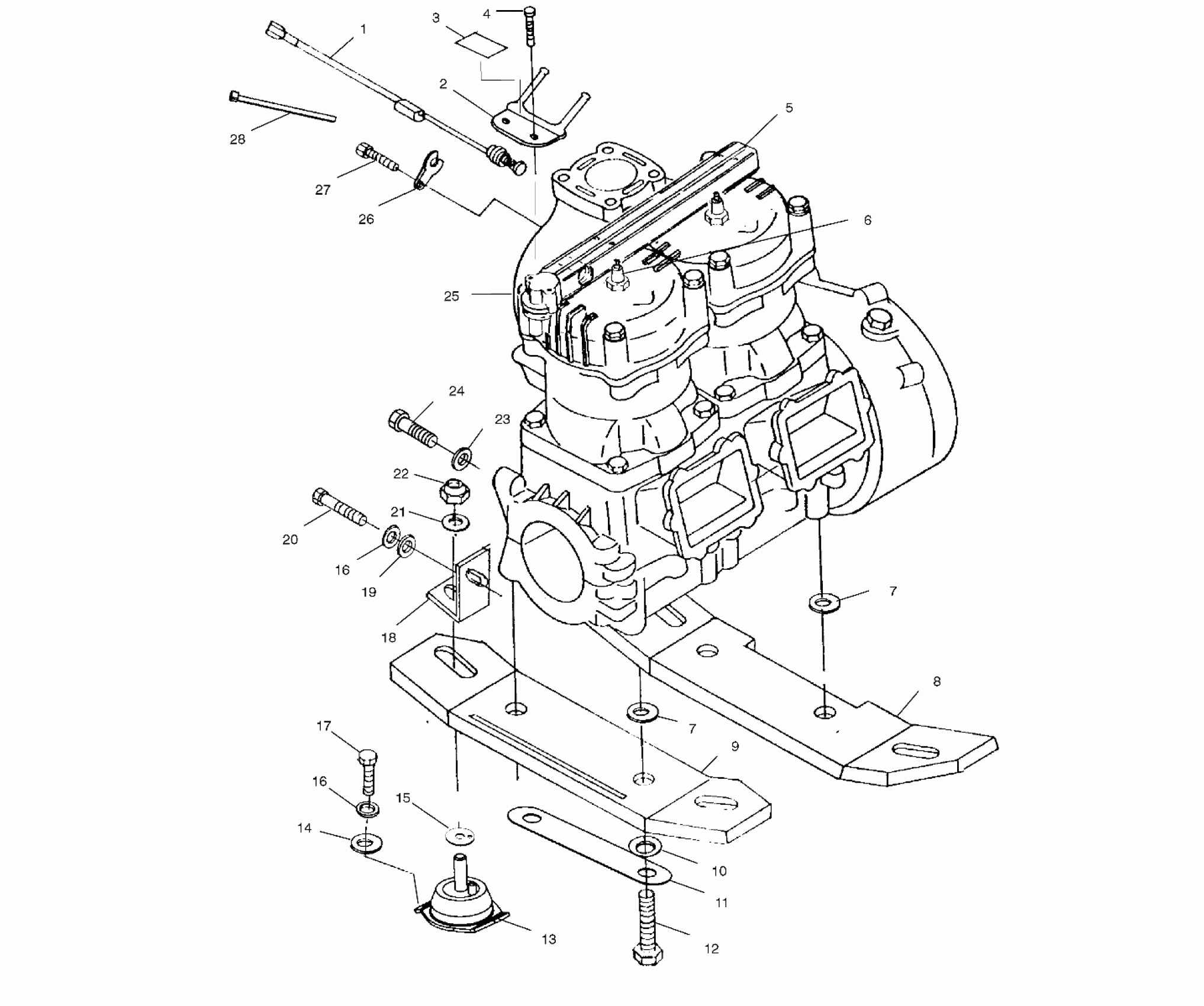

Polaris VIRAGE - W015197D ENGINE MOUNTING - W015197D (4964826482B007) Diagram

#

Description
Price

1

SWITCH,TEMP,W/CONNECTOR

2410187

$77.78

2

GROUND,SPARKPLUG,2CYL

5242488

Unavailable

3

DECAL,SPARKPLUG REC.

7077026

$2.94

4

SCREW,SHOULDER,S.S.(10)

7515149

Unavailable

5

Decal - Warning (See Cylinder and Manifold Pg. C5, Ref. 1)

----

Unavailable

6

Spark Plug, NGK BPR8ES (See Cylinder and Manifold Pg. C5, Ref. 5)

----

Unavailable

7

WASHER-FLAT,.44X1.25X.10,SS

7556184

$3.81

7

WASHER-FLAT,.44X1.25X.10,SS

7556184

$3.81

8

PLATE-FRONT MOUNT W/WASHER

5631166

$139.68

9

PLATE-REAR MOUNT W/WASHER

5631167

Unavailable

10

WASHER-FLAT,.44X.94X.06,18-8SS

7556170

Unavailable

11

LOCK-MOUNT PLATE

5245460

$13.10

12

SCREW, SS.

7517330

Unavailable

13

MOUNT-ENGINE,LORD,BENT,50-520

3021254

$73.81

14

WASHER(10)

7555866

Unavailable

15

SHIM,ENG.MT.(PWC)

5211727

Unavailable

16

WASHER, LOCK, S.S.(10)

7552610

Unavailable

16

WASHER, LOCK, S.S.(10)

7552610

Unavailable

17

SCREW(10)

7517627

Unavailable

18

BRKT,R.MUFFLER

1060142

$53.17

19

WASHER, FLAT, S.S.,(10)

7555835

$0.69

20

BOLT, S.S.(10)

7515357

Unavailable

21

WASHER, FLAT, S.S.(10)

7555848

Unavailable

22

NUT, NYLOK, S.S.(10) Substituted by 7547001

7542725

$3.59

23

WASHER,LOCK,SS.

7556055

Unavailable

24

BOLT,SS.

7517497

$3.97

25

KIT-SHORT BLK W70-SCSP 120267 The Short Block assembly contains a crankcase assembly, cylinder, and cylinder head assembly.

2201803

Unavailable

26

CLIP,RETAIN,TEMP.SW.

5240876

$4.99

27

BOLT,(1)

7516603

$10.32

28

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41
