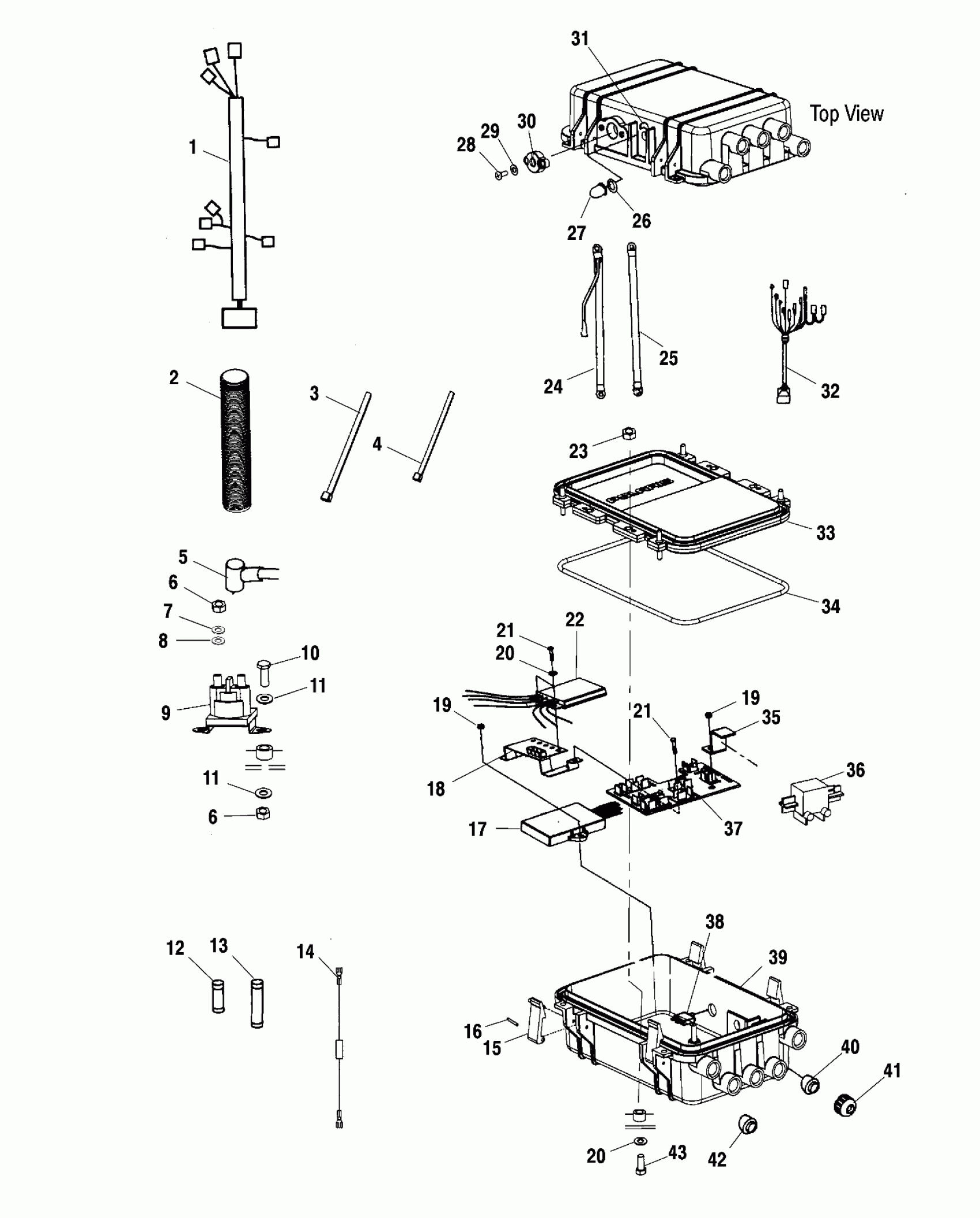

Polaris VIRAGE - W015197D ELECTRICAL BOX - W015197D (4964826482B013) Diagram

#

Description
Price

1

HARNESS,MIAN VIRAGE W/O SPLICE

2460955

$394.99

2

CONDUIT,FLEX,1.250ID

5521287-20

$5.71

3

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

4

STRAP, PANDUIT,4 IN.(10)

7080483

Unavailable

5

INSULATOR-CABLE

5410346

$7.73

6

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

6

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

7

NUT, 6 MM.,S.S.(10)

7546705

$4.76

8

WASHER, LOCK(10)

7552613

Unavailable

9

SOLENOID-STARTER,EXTERNAL

4010401

Unavailable

10

Screw

7517671

$1.97

11

WASHER, FLAT, S.S.(10)

7555839

Unavailable

11

WASHER, FLAT, S.S.(10)

7555839

Unavailable

12

FUSE,3AMP,AGW [No Longer Available]

4060161

Unavailable

13

FUSE,(10)

4060111

Unavailable

14

HARNESS-JUMPER,PWC

2460928

$13.89

15

LATCH,ELEC.BOX Substituted by 2620120

5432503

$102.38

16

PIN,LATCH,ELEC.BOX

5333544

$10.46

17

Controller, Ignition (See Magneto Pg. C9, Ref. 8)

----

Unavailable

18

ASM-STRAP,GROUNDING W/FUSES

2410250

Unavailable

19

NUT,NYLOK,SS

7547061

$0.56

19

NUT,NYLOK,SS

7547061

$0.56

20

WASHER, FLAT, S.S.(10)

7555837

$1.59

20

WASHER, FLAT, S.S.(10)

7555837

$1.59

21

BOLT, S.S.(10)

7512042

Unavailable

21

BOLT, S.S.(10)

7512042

Unavailable

22

REGULATOR-S/S 1 BUTTON 505

4010648

Unavailable

23

NUT,NYLOK,SS.

7547059

$4.76

24

CABLE-BATTERY/SOLENOID

4010238

Unavailable

25

CABLE-SOLENOID/STARTER

4010237

Unavailable

26

O-Ring

5411491

$1.03

27

BOOT,THREADED,RED

7080461

$13.99

28

BOLT,SS,(10)

7515113

Unavailable

29

WASHER(10)

7555836

$3.99

30

PLATE,STATOR,1 HOLE

5432574

$6.59

31

DECAL-"RESET ELEC SYSTEM"

7077691

Unavailable

32

HARNESS-8 WIRE STATOR,2CYL

2460718

Unavailable

33

COVER-ELECTRICAL BOX Substituted by 2631998

5433119

Unavailable

34

SEAL, E-BOX Substituted by 2620120

5432569

Unavailable

35

BRKT,COIL,2CYL

5244370

Unavailable

36

Coil, Ignition (See Magneto Pg. C9, Ref. 10)

----

Unavailable

37

TERMINAL BOARD,ASM

2410201

Unavailable

38

CKT.BREAKER,15A.(WATER.)

2434011

$20.48

39

ELECTRICAL BOX,IGNITION,ASM. (Incl. 15,16,33,34)

2632137

Unavailable

40

Grommet

5411235

Unavailable

41

CAP,GROMMET,ELEC.BOX

5432502

$2.62

42

PLUG,SEALING,WIRE

4010261

$1.19

43

SCREWM5X0.8X60(10)

7517825

Unavailable
