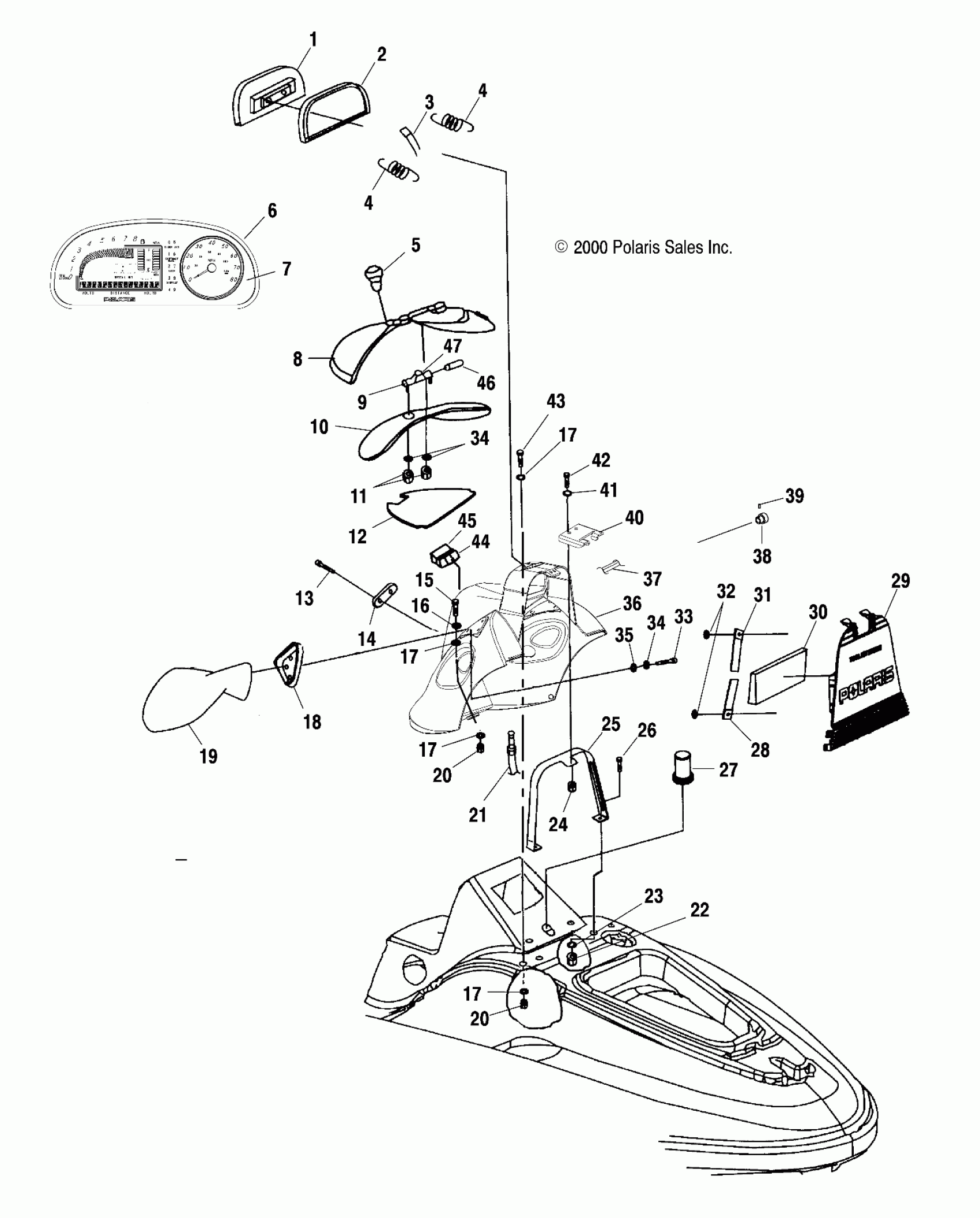

Polaris VIRAGE - W005197D SHROUD - W005197D (4955815581A005) Diagram

#

Description
Price

1

GAUGE-MFI,ANALOG/DIGITAL,BASIC

3280339

Unavailable

2

GASKET-MFI

5411738

Unavailable

3

PITOT LINE,90DEG FORMED,190CM Substituted by 8450070-235

8450070-190

Unavailable

4

SPRING,MOUNTING,MFI

7041931

Unavailable

4

SPRING,MOUNTING,MFI

7041931

Unavailable

5

LATCH,ASM,CONSOLE1/4 TURN

2632234

Unavailable

6

MFI,BUTTON REPLACEMENT,KIT

2201593

Unavailable

7

BEZEL-MFI,OVERLAY

3280342

Unavailable

8

LID,CONS,CATALINA BLUE MET Substituted by 2201997

5433709-311

Unavailable

9

SPRING-TORSION,CONSOLE,SS Substituted by 7042007

7041754

Unavailable

10

SEAL,LID,CONSOLE

5521478

Unavailable

11

NUT, 6 MM.,S.S.(10)

7546705

$4.79

12

PAD,CONSOLE

5811783

Unavailable

13

SCREW,SS.

7516609

Unavailable

14

PLATE,HOOK,CONSOLE

5211865

Unavailable

15

SCREW(10)

7517668

Unavailable

16

WASHER,LOCK,SS.

7556055

Unavailable

17

WASHER,FLAT,S.S.(10)

7555874

$2.39

17

WASHER,FLAT,S.S.(10)

7555874

$2.39

17

WASHER,FLAT,S.S.(10)

7555874

$2.39

17

WASHER,FLAT,S.S.(10)

7555874

$2.39

18

GASKET-MIRROR,LH

5411557

Unavailable

18

GASKET-MIRROR,RH

5411558

Unavailable

19

MIRROR,LH,BLACK,ASM. (Incl. 18)

2631972-070

Unavailable

19

MIRROR,RH,BLACK,ASM. (Incl. 18)

2631973-070

Unavailable

20

NUT,HEX,(10)

7546804

$1.49

20

NUT,HEX,(10)

7546804

$1.49

21

CABLE,CHOKE,SINGLE CARB Substituted by 7081020

7080926

Unavailable

22

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

23

WASHER, FLAT, S.S.(10)

7555839

Unavailable

24

NUT, HEX, S.S.(10)

7541931

$4.79

25

BRKT,SUPPORT,SHROUD

5244673

Unavailable

26

BOLT(10)

7516717

Unavailable

27

GROMMET-DECK,WIRE HARNESS

5411664

Unavailable

28

STRAP-TOOL KIT,LOWER

2690151

Unavailable

29

COVER-WIRE,SHROUD,BLK

5433210-070

Unavailable

30

Kit, Tool (See Tool Kit Pg. C12)

-------

Unavailable

31

STRAP-TOOL KIT,UPPER

2690150

Unavailable

32

RING-RETAINING,.25 STUD

7710517

Unavailable

33

SCREW, S.S.(10)

7516805

Unavailable

34

WASHER, LOCK(10)

7552613

Unavailable

34

WASHER, LOCK(10)

7552613

Unavailable

35

WASHER-6.4MMX18X1.6,SS

7556094

$4.79

36

SHRD,STR W/CH,R,CAT BLU MT Substituted by 2202006

5433589-311

Unavailable

37

BUMPER,DOOR/SHROUD

5812076

Unavailable

38

KNOB,CHOKE

2080004

Unavailable

39

Screw

2080005

Unavailable

40

PLATE,LATCH,RECEIVER

5244670

Unavailable

41

WASHER, FLAT, S.S.(10)

7555837

Unavailable

42

SCR,(10)#10-32X3/4

7517818

Unavailable

43

BOLT, SS.(10)

7512045

$4.99

44

GASKET,HOOK,CONSOLE

5811552

Unavailable

45

HOOK,CONSOLE,LATCH 1/4 TURN

5433266

Unavailable

46

PIN-HINGE,CONSOLE

5333698

Unavailable

47

HINGE-CONSOLE,3/16 PIN

5433384

Unavailable
