REVERSE - W005197D (4955815581B005)

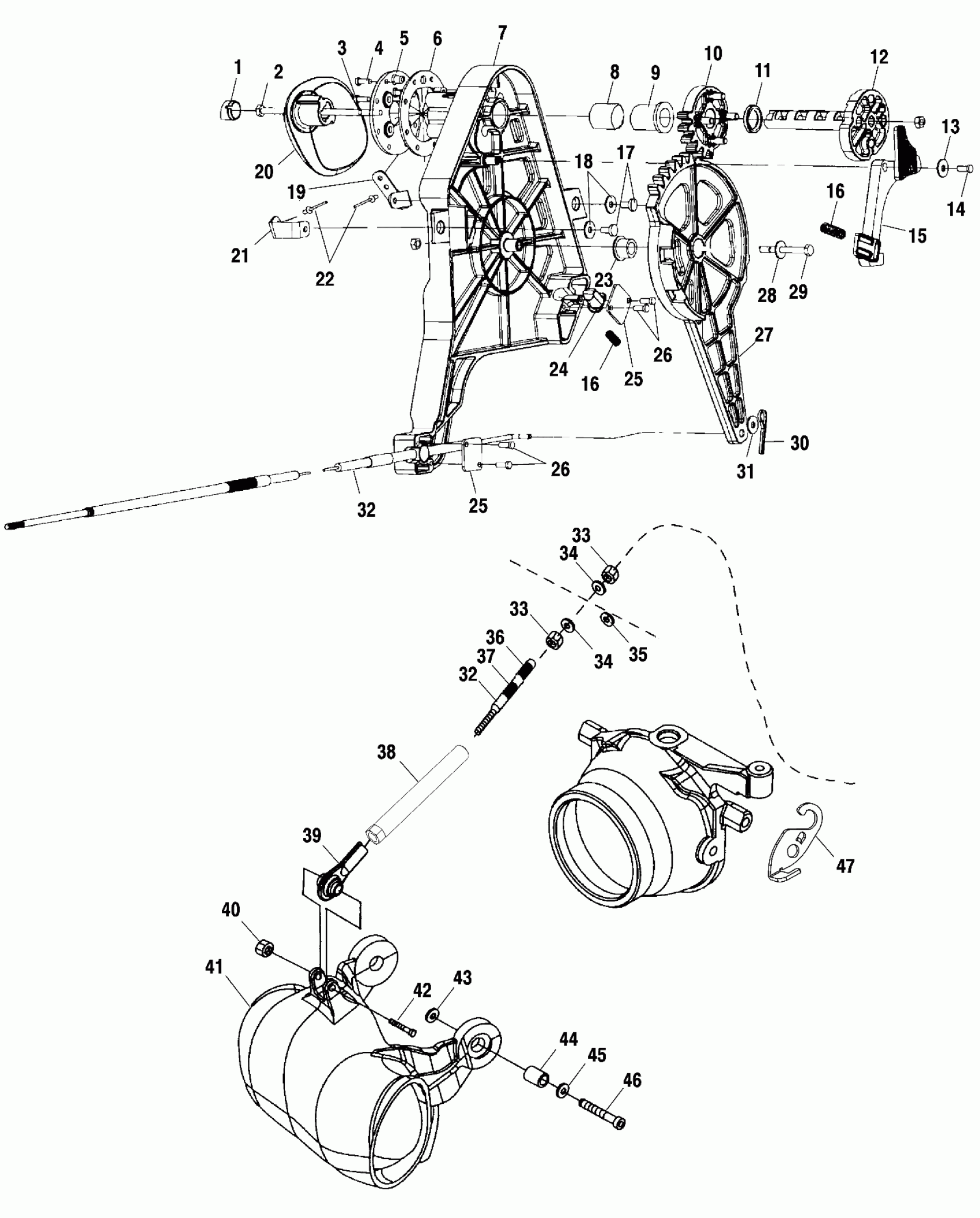

Polaris VIRAGE - W005197D REVERSE - W005197D (4955815581B005) Diagram
#
1
CAP,REVERSE HANDLE,BLK
5433677-070
Unavailable
2
SCR-M6X1.00X145-HX/FL-SS
7516816
$23.99
3
SCREW (10)
7517669
Unavailable
4
RIVET-POP 3/16(10)
7661040
Unavailable
5
FLANGE-BASE,REVERSE
5433646
Unavailable
6
GASKET-REVERSE,MS
5811982
Unavailable
7
PLATE-BASE,REVERSE
5433643
Unavailable
8
BSHG-.750X1.00X1.00,ACETEL
5433911
Unavailable
9
BSHG-FLG,.750X1.00X1.00,ACETEL
5433910
Unavailable
10
PINION-REVERSE
5433645
Unavailable
11
BUSHING-CAN,REVERSE
5433674
Unavailable
12
SHAFT-CAM,REVERSE [No Longer Available]
5433675
Unavailable
13
WASHER, FLAT, S.S.(10)
7555839
Unavailable
14
SCREW(10)
7517331
$2.07
15
ARM,REVERSE LOCK Substituted by 5433676
5433872
Unavailable
16
SPRING,COMPRESSION
7041888
$13.19
16
SPRING,COMPRESSION
7041888
$13.19
17
SCR-M6X1.0X12 PH/PAN HD-SS
7517717
Unavailable
18
WASHER-6.4MMX18X1.6,SS
7556094
$4.79
19
BRKT,REVERSE PLATE,FWD Substituted by 5245635
5244288
Unavailable
20
HANDLE-REVERSE,BLACK
5433605-070
Unavailable
21
BRKT,REVERSE PLATE,REAR
5244289
Unavailable
22
RIVET-POP 3/16(.376-.750)AL-SS Substituted by 7621511
7661041
Unavailable
23
BSHG-FLG,.500X.750X.563,AF
5433647
Unavailable
24
PLUNGER-DETENT,REVERSE
5433673
Unavailable
25
PLATE,CABLE
5240257
Unavailable
25
PLATE,CABLE
5240257
Unavailable
26
SCREW(10)
7512049
Unavailable
26
SCREW(10)
7512049
Unavailable
27
ARM-REVERSE
5433954
Unavailable
28
WASHER, FLAT
7555952
Unavailable
29
BOLT(10)
7516806
Unavailable
30
PIN, COTTER(10)
7661010
$1.49
31
WASHER, FLAT, S.S.(10)
7555837
Unavailable
32
CABLE,REVERSE
7080899
Unavailable
32
CABLE,REVERSE
7080899
Unavailable
33
NUT (10)
7542528
Unavailable
33
NUT (10)
7542528
Unavailable
34
Washer
1860103
Unavailable
34
Washer
1860103
Unavailable
35
WASHER, LOCK,S.S.(10)
7571625
Unavailable
36
SEAL,ROD
5411818
Unavailable
37
SEAL,ROD
5411819
Unavailable
38
ASM-GUIDE TUBE,REVERSE,.75
7080950
Unavailable
39
ROD,END,1/4-28X.375
7061062
Unavailable
40
NUT,NYLOK,S.S.(10)
7542133
Unavailable
41
GATE,REVERSE,DIRECTIONAL Substituted by 5434049
5631036
Unavailable
42
SCREW1/4-20X1.75HX(10)
7517749
Unavailable
43
WASHER(10)
7555866
Unavailable
44
Collar
5020683
Unavailable
45
WASHER,FLAT,S.S.(10)
7555874
$2.39
46
BOLT, S.S.(10)
7515368
Unavailable
47
BRKT-REVERSE TOP
5244902
Unavailable
