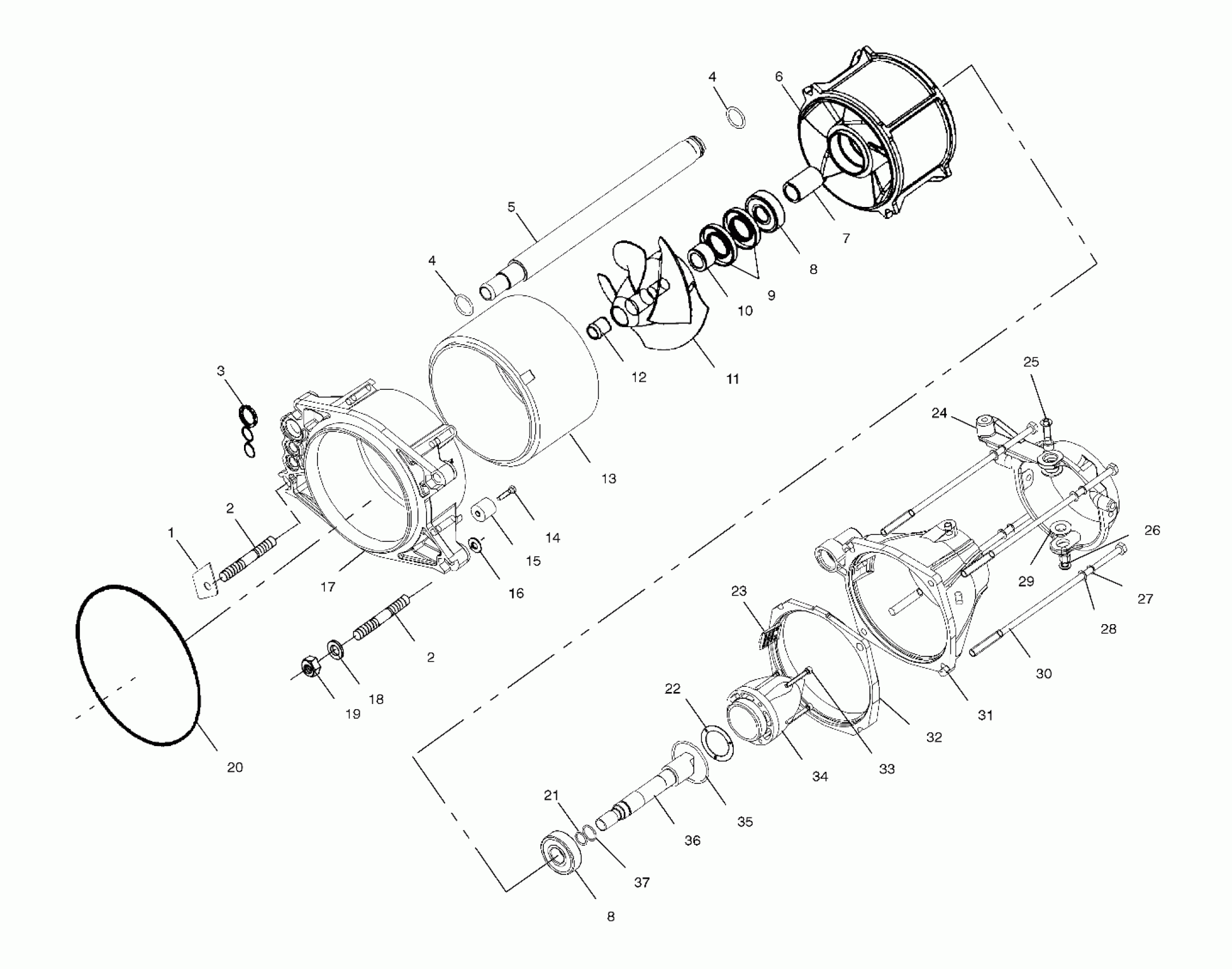

Polaris VIRAGE - W005197D PROPULSION - W005197D (4955815581B004) Diagram

#

Description
Price

1

BRKT,STEERING CABLE NUT

5244556

Unavailable

2

STUD,MOUNT,PUMP,LONG INT.

5132111

Unavailable

2

STUD,MOUNT,PUMP,LONG INT.

5132111

Unavailable

3

SEAL,WATER PIPE

5411107

Unavailable

4

O RING,(10)

5410735

$0.79

4

O RING,(10)

5410735

$0.79

5

PIPE,WATER,ENG.(X-PUMP)

5432269

$30.71

6

STATOR,PUMP

5130983

Unavailable

7

Spacer

5010294

Unavailable

8

Bearing

3514008

Unavailable

8

Bearing

3514008

Unavailable

9

SEAL,BRG,STATOR

3610043

Unavailable

10

Spacer, Impeller

5010295

Unavailable

11

IMPELLER,NUJET,4.7

5132372

$318.63

12

SEAL-IMPELLER/SHAFT

5411644

Unavailable

13

EXTENSION,PUMP

5131196

$204.99

14

SCREW(10)

7522019

$0.95

15

ANODE-ZINC Substituted by 2200745

5630598

Unavailable

16

WASHER,PUMPSTUD,SEAL

7555941

$7.14

17

HSG,PUMP,W/O RING,INT STUD

5131573

Unavailable

18

Washer

7555966

$2.62

19

NUT,HEX,S.S.(10)

7542455

Unavailable

20

O-RING,PUMP HSG/HULL

5410652

Unavailable

21

O-RING,(10)

5410817

Unavailable

22

SEAL,TAILCONE

5811984

Unavailable

23

SCREEN,ENG.INLET

5431523

Unavailable

24

NOZZLE,STRG,SLT

5130999

Unavailable

25

BOLT, S.S.(10)

7515366

Unavailable

26

Collar

5130938

Unavailable

27

WASHER, LOCK, S.S.(10)

7552610

Unavailable

28

WASHER, FLAT, S.S.,(10)

7555835

$0.69

29

BRG,STRG.NOZZLE,(10)

5431518

Unavailable

30

Bolt

7515389

Unavailable

31

NOZZLE,STAT.,0X4 WEDGE

5131569

Unavailable

32

WEDGE,PUMP,0X4,MOLDED

5432841

Unavailable

33

SCREW(10)

7512064

Unavailable

34

Cone, Pump

5431519

Unavailable

35

O-RING(10)

5410819

$0.79

36

SHAFT, STUB Substituted by 5132674

5020697

$47.62

37

O-RING(10)

5410818

$0.79
