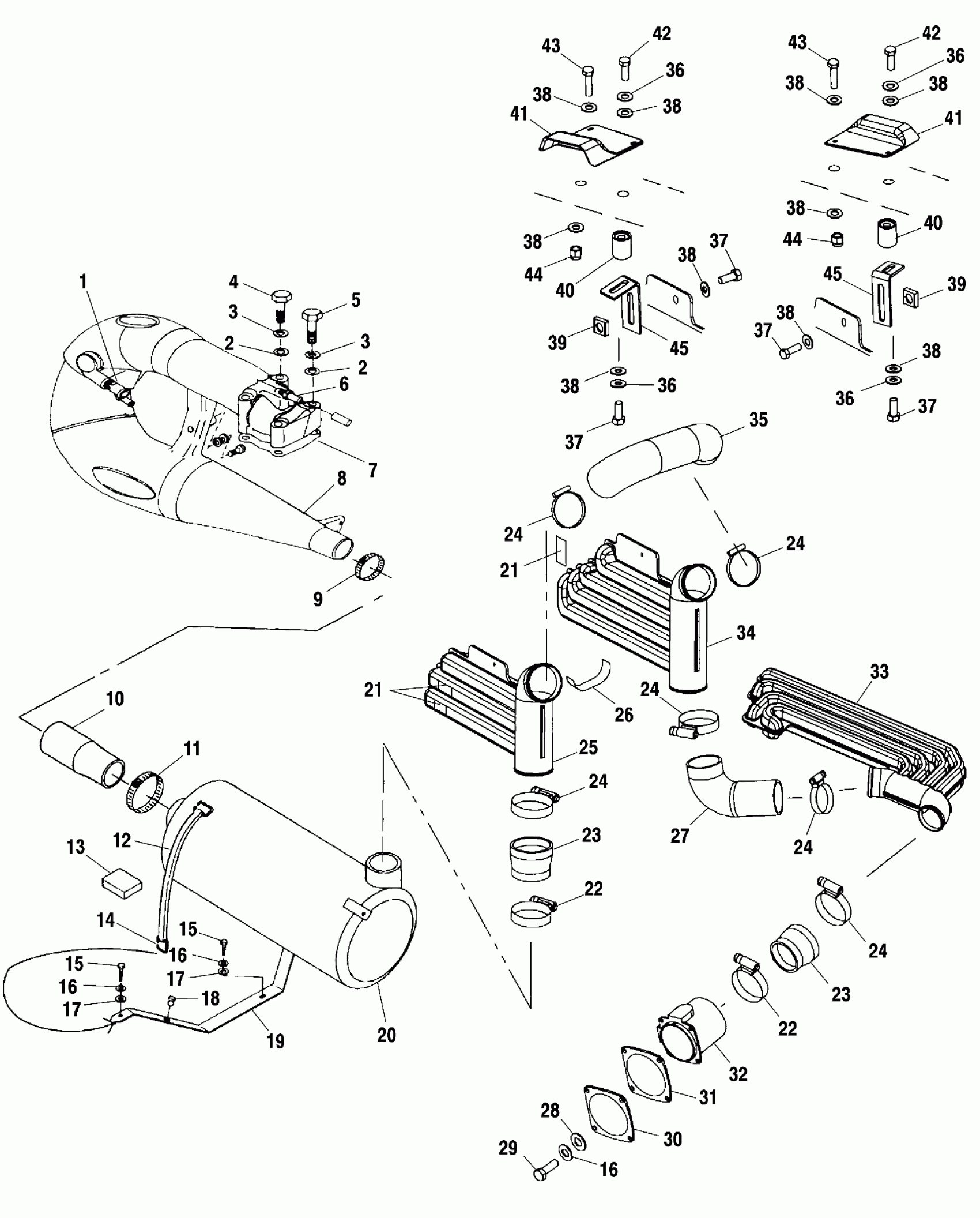

Polaris VIRAGE - W005197D EXHAUST SYSTEM - W005197D (4955815581B007) Diagram

#

Description
Price

1

FITTING,WATER INLET

5020668

Unavailable

2

WASHER, FLAT, S.S.(10)

7555856

Unavailable

2

WASHER, FLAT, S.S.(10)

7555856

Unavailable

3

WASHER, LOCK,SS.(10)

7552611

Unavailable

3

WASHER, LOCK,SS.(10)

7552611

Unavailable

4

SCREW(10)

7517268

Unavailable

5

BOLT, S.S.(10)

7517004

Unavailable

6

Fitting, Screen, Exhaust (See Cooling System Pg. B11, Ref. 8)

-------

Unavailable

7

Gasket, Exhaust (See Battery Box Pg. B9, Ref. 5)

-------

Unavailable

8

EXHAUST,PIPE,PWC,RED

1261023-093

Unavailable

9

CLAMP, HOSE(10)

7080446

$11.19

10

HOSE,PIPE/SILENCER

5411165

Unavailable

11

CLAMP, HOSE, S.S.(10)

7080451

$7.19

12

STRAP-BATTERY

5430621

$20.22

13

PAD,FOAM,LONG

5811342

Unavailable

14

HOOK,'D',SST/SS,(10)

5224472

$2.19

15

BOLT(10)

7515127

Unavailable

15

BOLT(10)

7515127

Unavailable

16

WASHER, LOCK, S.S.(10)

7555838

Unavailable

16

WASHER, LOCK, S.S.(10)

7555838

Unavailable

16

WASHER, LOCK, S.S.(10)

7555838

Unavailable

17

WASHER, FLAT, S.S.(10)

7555839

Unavailable

17

WASHER, FLAT, S.S.(10)

7555839

Unavailable

18

Bumper, Rubber

5410414

$3.19

19

Cradle, Silencer

5222696

Unavailable

20

SILENCER,EXHAUST,RED

1260581-093

Unavailable

21

PAD-RESONATOR,VIRAGE

5812094

Unavailable

21

PAD-RESONATOR,VIRAGE

5812094

Unavailable

22

CLAMP, HOSE(10)

7080445

Unavailable

22

CLAMP, HOSE(10)

7080445

Unavailable

23

HOSE,EXHAUST,3.00X2.25L

5411951

Unavailable

23

HOSE,EXHAUST,3.00X2.25L

5411951

Unavailable

24

CLAMP,HOSE,3.75,SS

7080907

$11.19

24

CLAMP,HOSE,3.75,SS

7080907

$11.19

24

CLAMP,HOSE,3.75,SS

7080907

$11.19

24

CLAMP,HOSE,3.75,SS

7080907

$11.19

24

CLAMP,HOSE,3.75,SS

7080907

$11.19

24

CLAMP,HOSE,3.75,SS

7080907

$11.19

25

RESONATOR,EXHAUST,2CYL,#1

5433810

Unavailable

26

PAD,RESONATOR BRKT

5830197

Unavailable

27

HOSE,EXHST,3.00,CRSOVR 2

5411863

Unavailable

28

WASHER(10)

7555836

$3.99

29

SCREW, S.S.(10)

7515116

Unavailable

30

PLATE-EXHAUST SEAL

5245072

Unavailable

31

SEAL,EXH.FITTING

5810529

Unavailable

32

FITTING,EXHAUST,2 5/8 ID

5132446

Unavailable

33

RESONATOR,EXH,MS,3CYL,#3

5433632

Unavailable

34

RESONATOR,EXHAUST,2CYL,#2

5433811

Unavailable

35

HOSE,EXHAUST,CROSSOVER (Incl. Conduit)

5411932

Unavailable

35

CONDUIT,HOSE,3.0ID X 12

5521561

Unavailable

36

WASHER, LOCK(10)

7552613

Unavailable

36

WASHER, LOCK(10)

7552613

Unavailable

36

WASHER, LOCK(10)

7552613

Unavailable

36

WASHER, LOCK(10)

7552613

Unavailable

37

SCR-M6X1.0X12 PH/PAN HD-SS

7517717

Unavailable

37

SCR-M6X1.0X12 PH/PAN HD-SS

7517717

Unavailable

37

SCR-M6X1.0X12 PH/PAN HD-SS

7517717

Unavailable

37

SCR-M6X1.0X12 PH/PAN HD-SS

7517717

Unavailable

38

WASHER-6.4MMX18X1.6,SS

7556094

$4.79

38

WASHER-6.4MMX18X1.6,SS

7556094

$4.79

38

WASHER-6.4MMX18X1.6,SS

7556094

$4.79

38

WASHER-6.4MMX18X1.6,SS

7556094

$4.79

38

WASHER-6.4MMX18X1.6,SS

7556094

$4.79

38

WASHER-6.4MMX18X1.6,SS

7556094

$4.79

38

WASHER-6.4MMX18X1.6,SS

7556094

$4.79

38

WASHER-6.4MMX18X1.6,SS

7556094

$4.79

38

WASHER-6.4MMX18X1.6,SS

7556094

$4.79

38

WASHER-6.4MMX18X1.6,SS

7556094

$4.79

39

NUT,CAGE,M6X1.0

7547151

Unavailable

39

NUT,CAGE,M6X1.0

7547151

Unavailable

40

MOUNT-RUBBER,25X30XM6,FF SS

5411851

Unavailable

40

MOUNT-RUBBER,25X30XM6,FF SS

5411851

Unavailable

41

PROTECTOR,SEAT,LH,VIRAGE

5433787

Unavailable

41

PROTECTOR,SEAT,RH,VIRAGE

5433788

Unavailable

41

PROTECTOR,SEAT,LH,VIRAGE

5433787

Unavailable

41

PROTECTOR,SEAT,RH,VIRAGE

5433788

Unavailable

42

BOLT(10)

7516809

Unavailable

42

BOLT(10)

7516809

Unavailable

43

BOLT(10)

7516807

Unavailable

43

BOLT(10)

7516807

Unavailable

44

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

44

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

45

BRKT,RESONATOR,MS,LH

5244270

Unavailable

45

BRKT,RESONATOR,MS,LH

5244270

Unavailable
