- VIRAGE - W005197D
ELECTRICAL BOX - W005197I (4955815581C001)

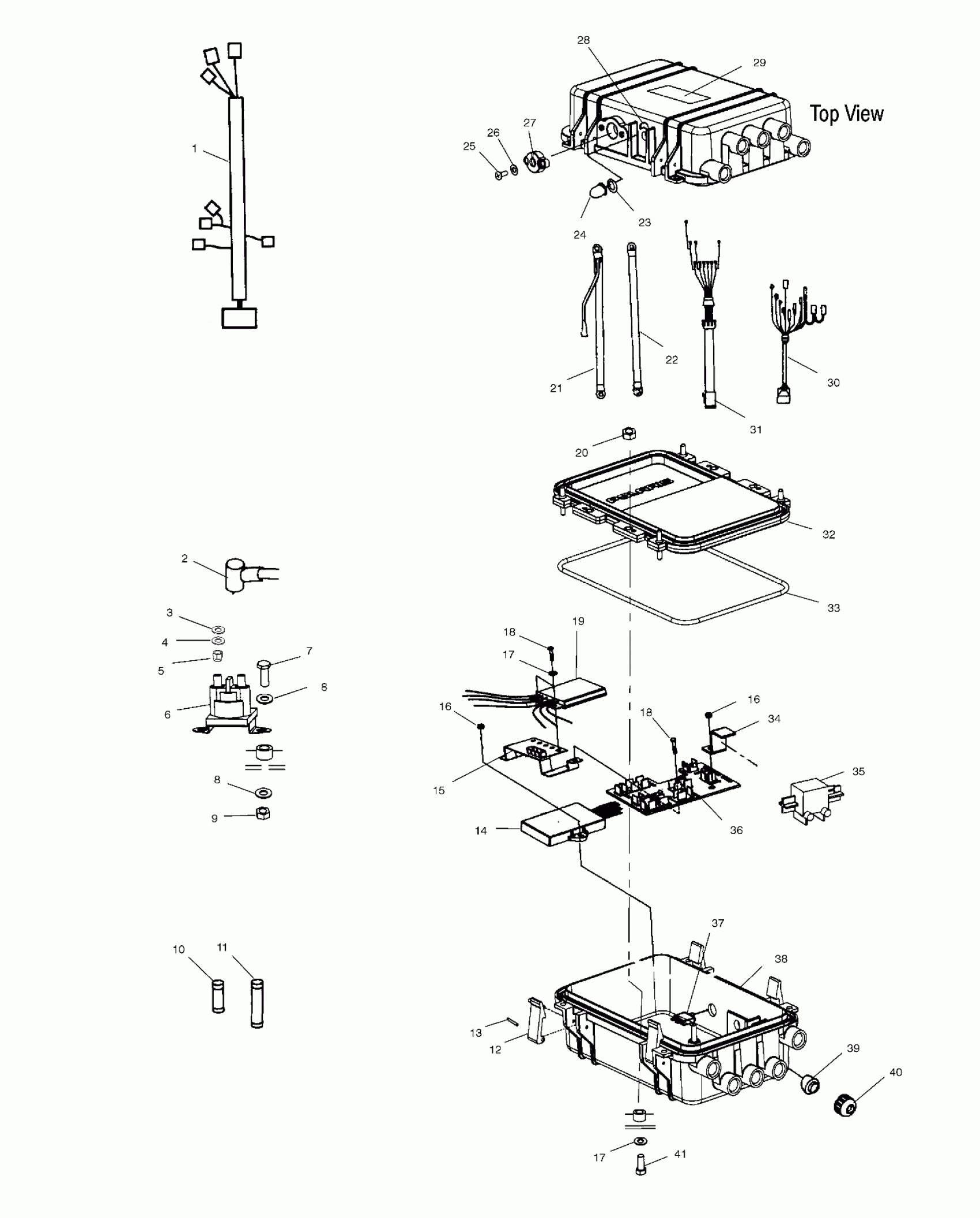

Polaris VIRAGE - W005197D ELECTRICAL BOX - W005197I (4955815581C001) Diagram
#
1
HARNESS-MAIN,VIRAGE
2460898
Unavailable
2
INSULATOR-CABLE
5410346
$6.39
3
NUT, 6 MM.,S.S.(10)
7546705
$4.79
4
WASHER, LOCK(10)
7552613
Unavailable
5
WASHER(10)
7555882
$2.07
6
Solenoid, Starter (See Magneto Pg. C8, Ref. 8)
-------
Unavailable
7
Screw
7517671
Unavailable
8
WASHER, FLAT, S.S.(10)
7555839
Unavailable
8
WASHER, FLAT, S.S.(10)
7555839
Unavailable
9
NUT-6 MM X 1.00-NYLOK-SS
7546704
$1.75
10
FUSE,3AMP,AGW [No Longer Available]
4060161
Unavailable
11
FUSE,(10)
4060111
Unavailable
12
LATCH,ELEC.BOX Substituted by 2620120
5432503
Unavailable
13
PIN,LATCH,ELEC.BOX
5333544
Unavailable
14
Controller, Ignition (See Magneto Pg. C8, Ref. 7)
-------
Unavailable
15
STRAP,GROUNDING,E-BOX Substituted by 5244646
5244335
Unavailable
16
NUT,NYLOK,SS
7547061
Unavailable
16
NUT,NYLOK,SS
7547061
Unavailable
17
WASHER, FLAT, S.S.(10)
7555837
Unavailable
17
WASHER, FLAT, S.S.(10)
7555837
Unavailable
18
BOLT, S.S.(10)
7512042
$2.62
18
BOLT, S.S.(10)
7512042
$2.62
19
REGULATOR,1 BUTTON S/S LR Substituted by 4010648
4010304
Unavailable
20
NUT,NYLOK,SS.
7547059
$4.79
21
CABLE-BATTERY/SOLENOID
4010238
Unavailable
22
CABLE-SOLENOID/STARTER
4010237
Unavailable
23
O-Ring
5411491
Unavailable
24
BOOT,THREADED,RED
7080461
Unavailable
25
BOLT,SS,(10)
7515113
Unavailable
26
WASHER(10)
7555836
$3.99
27
PLATE,STATOR,1 HOLE
5432574
Unavailable
28
DECAL-"RESET ELEC SYSTEM"
7077691
Unavailable
29
DECAL,WARN,HI.VOLT.
7073713
Unavailable
30
HARNESS-8 WIRE STATOR,2CYL
2460718
Unavailable
31
HARNESS-PIGTAIL
2460826
Unavailable
32
COVER-ELECTRICAL BOX Substituted by 2631998
5433119
Unavailable
33
SEAL, E-BOX Substituted by 2620120
5432569
Unavailable
34
BRKT,COIL,2CYL
5244370
Unavailable
35
Coil, Ignition (See Magneto Pg. C8, Ref. 9)
-------
Unavailable
36
TERMINAL BOARD,ASM
2410201
Unavailable
37
CKT.BREAKER,15A.(WATER.)
2434011
Unavailable
38
ELECTRICAL BOX,IGNITION,ASM. (Incl. 12,13,32,33)
2632137
Unavailable
39
Grommet
5411235
Unavailable
40
CAP,GROMMET,ELEC.BOX
5432502
Unavailable
41
SCREWM5X0.8X60(10)
7517825
Unavailable
