Description

Price

1

Decal, Warning

7075383

Unavailable

2

BOLT(10)

7516806

Unavailable

3

DECAL,SPARKPLUG REC.

7077026

$2.95

4

PLUG,PIPE(10)

7051527

Unavailable

5

SPARKPLUG, BPR-8ES(10)

3070174

Unavailable

6

BOLT(10)

7516722

Unavailable

7

SCREW, S.S.

7517352

Unavailable

8

O-RING(10)

5410917

$1.49

9

O-RING

5410932

$20.22

10

O-Ring

5410931

Unavailable

11

NUT

7547021

$6.99

12

CYLINDER,81MM,PWC,KONIG

3021019

Unavailable

13

GASKET,CARB.

5830043

Unavailable

14

Screw

7517306

Unavailable

15

RETAINER,SS.

7080654

$18.32

16

BRKT,OILPUMP CABLE

5241134

Unavailable

17

BOLT(10)

7516807

Unavailable

18

MANIFOLD,INTAKE,(TWIN),SC

5630656

Unavailable

19

STUFFER,REED BLOCK Substituted by 5433151

5432104

Unavailable

20

REEDVALVE ASM. Substituted by 1201743

1201689

Unavailable

21

GASKET,CYL.BASE

5830123

Unavailable

22

HEAD,CYLINDER 81MM SING CARB

3021117

Unavailable

23

RING,HEAD,81MM-SS

5241944

Unavailable

24

BRKT,HEAD,TWIN,FIRE RED

5241768-093

Unavailable

25

COVER,HEAD,RED,BIG BORE

5630527-093

Unavailable

26

GASKET,WATER MANIF.

5830061

Unavailable

27

MANIFOLD,OUT,FIRE RED Substituted by 1202061-093

5630826-093

Unavailable

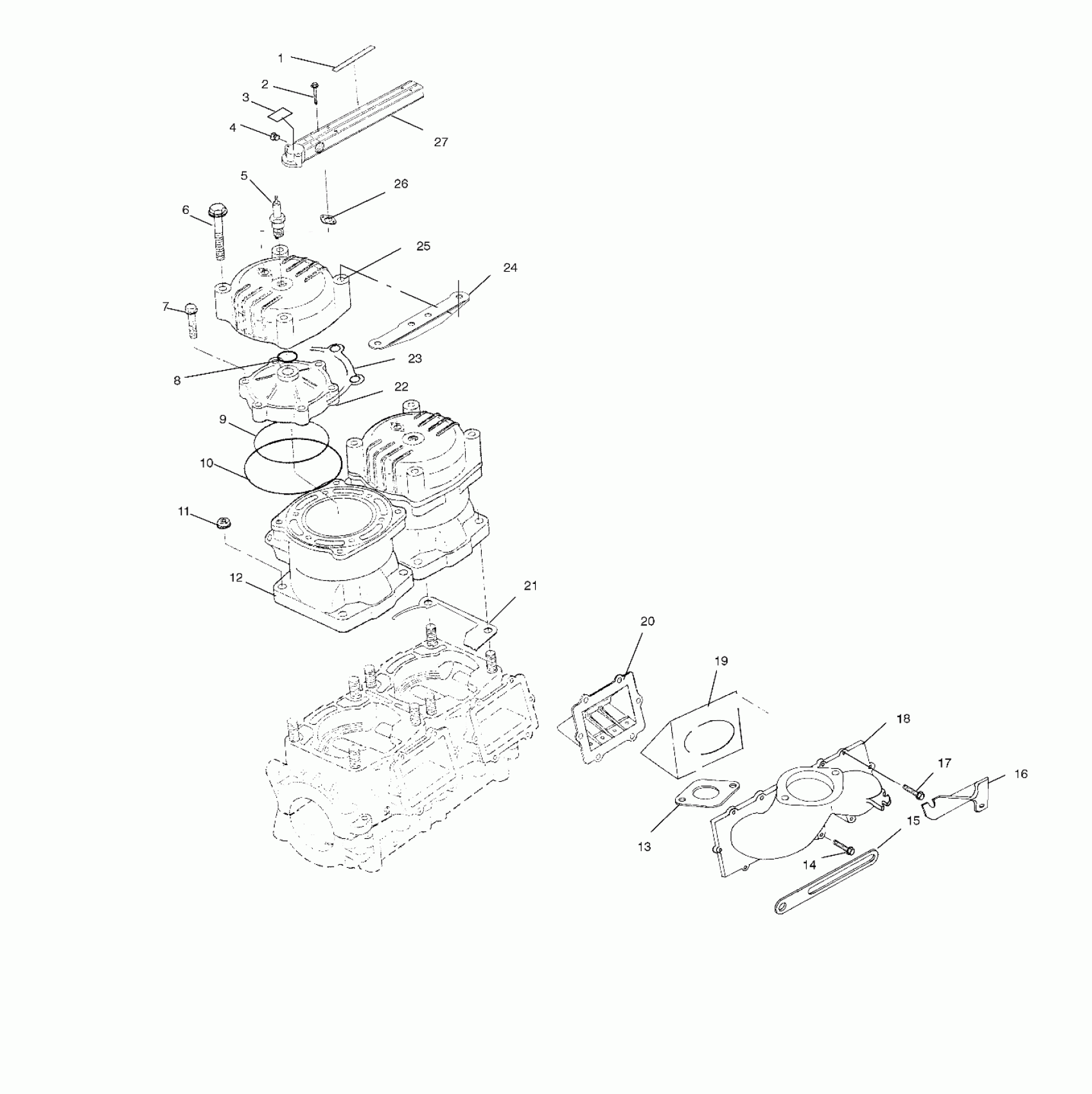

Polaris VIRAGE - W005197D CYLINDER & MANIFOLD - W005197I (4955815581C004) Diagram

Decal, Warning

BOLT(10)

DECAL,SPARKPLUG REC.

PLUG,PIPE(10)

SPARKPLUG, BPR-8ES(10)

BOLT(10)

SCREW, S.S.

O-RING(10)

O-RING

O-Ring

NUT

CYLINDER,81MM,PWC,KONIG

GASKET,CARB.

Screw

RETAINER,SS.

BRKT,OILPUMP CABLE

BOLT(10)

MANIFOLD,INTAKE,(TWIN),SC

STUFFER,REED BLOCK Substituted by 5433151

REEDVALVE ASM. Substituted by 1201743

GASKET,CYL.BASE

HEAD,CYLINDER 81MM SING CARB

RING,HEAD,81MM-SS

BRKT,HEAD,TWIN,FIRE RED

COVER,HEAD,RED,BIG BORE

GASKET,WATER MANIF.

MANIFOLD,OUT,FIRE RED Substituted by 1202061-093
