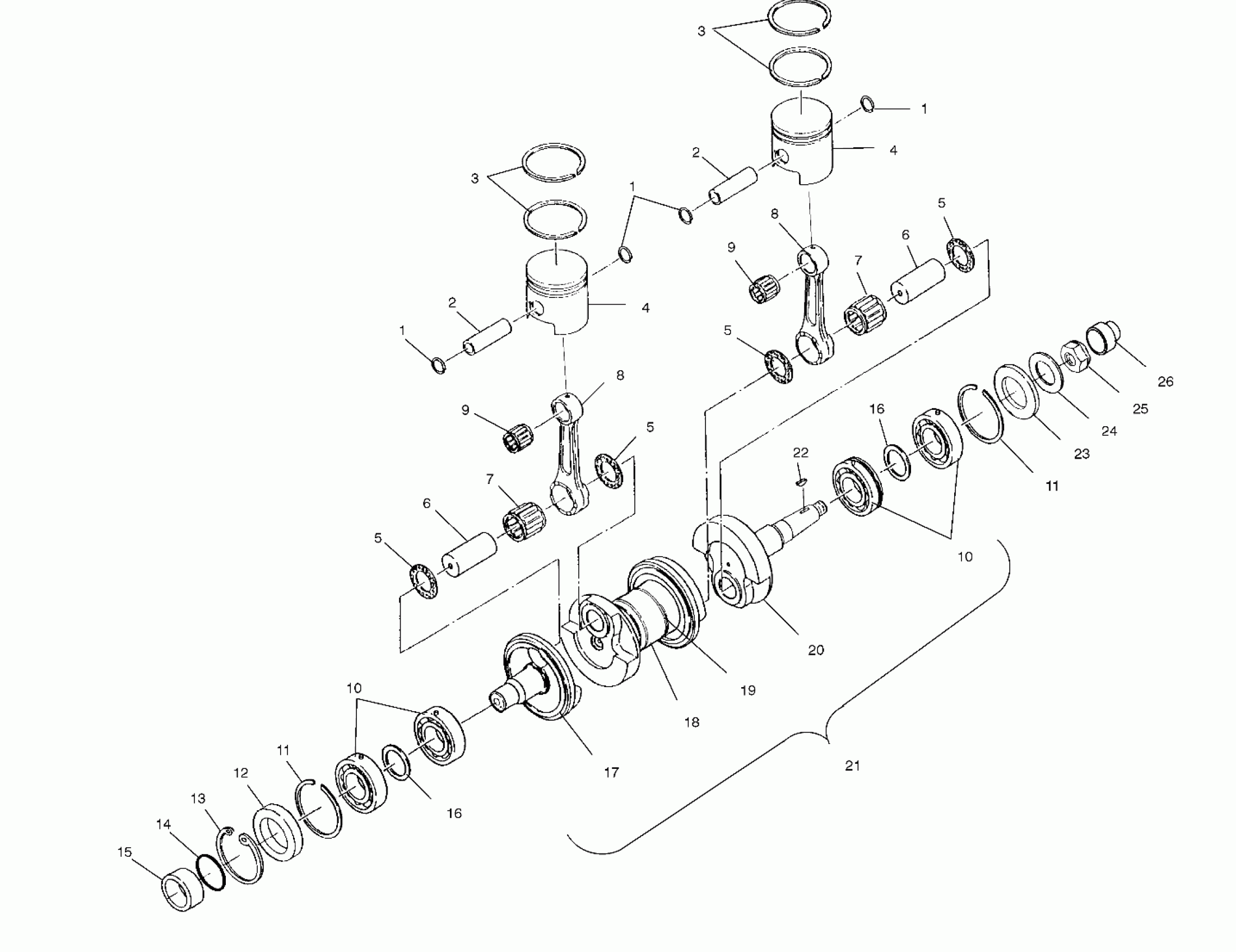

Polaris VIRAGE - W005197D CRANKSHAFT and PISTON - W005197I (4955815581C005) Diagram

#

Description
Price

1

CIRCLIP,PISTON,20MM.,(10)

3022950

Unavailable

1

CIRCLIP,PISTON,20MM.,(10)

3022950

Unavailable

1

CIRCLIP,PISTON,20MM.,(10)

3022950

Unavailable

2

PIN,PSTN,20/12X60 NITRIDED

3021091

Unavailable

2

PIN,PSTN,20/12X60 NITRIDED

3021091

Unavailable

3

KIT,PISTONRING,81MM.25 O/S,CKS (.25mm OS)

2200917

Unavailable

3

KIT,PISTONRING,81MM,STD,CKS (Std.)(2 Rings)

2200918

Unavailable

3

KIT,PISTONRING,81MM.50 O/S,CKS (.50 mm OS) NOTE: If the number stamped on the head of piston reads ELKO 2194a use the above 3 kits.

2200916

Unavailable

3

KIT,PISTONRINGS,.25 O/S,PWC (.25mm OS)

2200903

Unavailable

3

KIT,PISTONRINGS,.50 O/S,PWC (.50 mm OS) NOTE: If the number stamped on the head of piston reads ELKO 2102/6 use the above 3 kits.

2200904

Unavailable

3

KIT,PISTONRINGS,STD,PWC (Std.)(2 Rings)

2200902

Unavailable

3

KIT,PISTONRING,81MM.25 O/S,CKS (.25mm OS)

2200917

Unavailable

3

KIT,PISTONRING,81MM,STD,CKS (Std.)(2 Rings)

2200918

Unavailable

3

KIT,PISTONRING,81MM.50 O/S,CKS (.50 mm OS) NOTE: If the number stamped on the head of piston reads ELKO 2194a use the above 3 kits.

2200916

Unavailable

3

KIT,PISTONRINGS,.25 O/S,PWC (.25mm OS)

2200903

Unavailable

3

KIT,PISTONRINGS,.50 O/S,PWC (.50 mm OS) NOTE: If the number stamped on the head of piston reads ELKO 2102/6 use the above 3 kits.

2200904

Unavailable

3

KIT,PISTONRINGS,STD,PWC (Std.)(2 Rings)

2200902

Unavailable

4

PSTN,KIT,81MM,STD NTRD PIN (Std.)(Incl.1,2,3)

2201626

Unavailable

4

PSTN,81MM PWC,.25 NTRD PIN (.25 mm OS)(Incl.1,2,3)

2201627

Unavailable

4

PSTN,KIT,81MM,.50 NTRD PIN (.50 mm OS)(Incl.1,2,3)

2201628

Unavailable

4

PSTN,KIT,81MM,STD NTRD PIN (Std.)(Incl.1,2,3)

2201626

Unavailable

4

PSTN,81MM PWC,.25 NTRD PIN (.25 mm OS)(Incl.1,2,3)

2201627

Unavailable

4

PSTN,KIT,81MM,.50 NTRD PIN (.50 mm OS)(Incl.1,2,3)

2201628

Unavailable

5

Washer, Thrust

-------

Unavailable

5

Washer, Thrust

-------

Unavailable

5

Washer, Thrust

-------

Unavailable

5

Washer, Thrust

-------

Unavailable

6

PIN, CRANKSHAFT

-------

Unavailable

6

PIN, CRANKSHAFT

-------

Unavailable

7

BEARING, CONNECTING ROD

-------

Unavailable

7

BEARING, CONNECTING ROD

-------

Unavailable

8

KIT,CONN.ROD,MAPE (Incl. 5-7)

2201022

$305.56

8

KIT,CONN.ROD,MAPE (Incl. 5-7)

2201022

$305.56

9

BEARING,CONNECT.ROD (20 mm)

3584001

Unavailable

9

BEARING,CONNECT.ROD (20 mm)

3584001

Unavailable

10

BEARING,BALL

3585503

$31.99

10

BEARING,BALL

3585503

$31.99

11

RING,RETAINING,(10) (72 mm)

7710441

Unavailable

11

RING,RETAINING,(10) (72 mm)

7710441

Unavailable

12

SEAL,TYPE BA SL

5411524

Unavailable

13

RING,RETAINING(10) (72 mm)

7710435

Unavailable

14

O RING,(10)

5410613

$1.99

15

COLLAR,CRANKSHAFT

5131195

Unavailable

16

BUSHING(10)

7555905

$3.99

16

BUSHING(10)

7555905

$3.99

17

CRANKWEB,PTO,BIGBORE

5131083

Unavailable

18

CRANKWEB,CTR,BIGBORE

5131084

Unavailable

19

Labyrinth

5131086

Unavailable

20

CRANKWEB,MAG.

5131085

Unavailable

21

KIT,CRANKSHAFT,2CYL,PWC,MAPE (Incl. 10,16-20,22)

2201243

Unavailable

22

KEY,WOODRUFF(10)

7721117

$24.99

23

Seal

3610044

$24.27

24

Washer (See Magneto Pg. C8, Ref. 5)

-------

Unavailable

25

Nut, Pump Drive (See Magneto Pg. C8, Ref. 6)

-------

Unavailable

26

COUPLER,PUMP DRIVE

5432576

Unavailable
