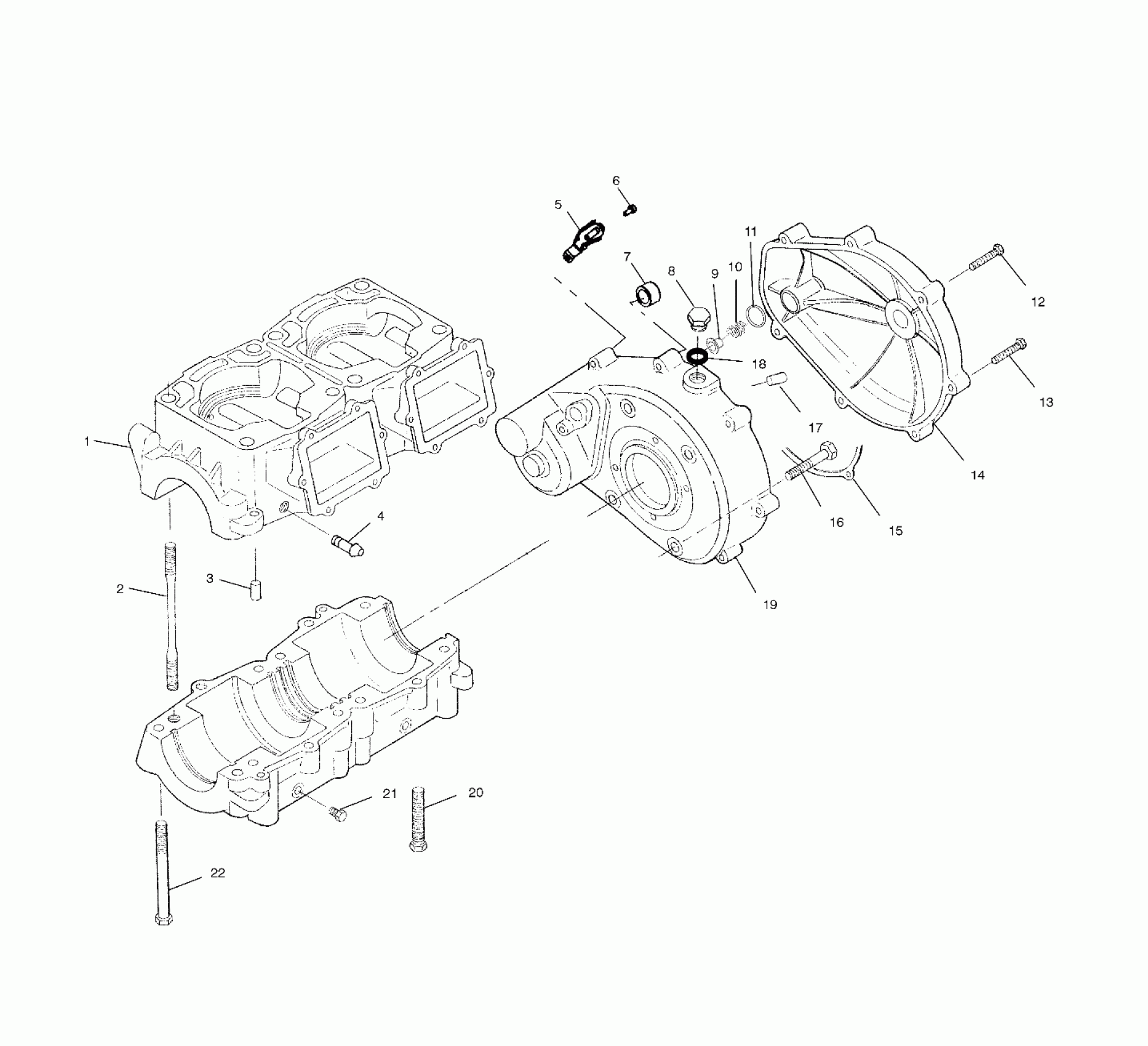

Polaris VIRAGE - W005197D CRANKCASE - W005197I (4955815581C003) Diagram

#

Description
Price

1

CRANKCASE,KIT,700 PWC (Incl. 2-4,20-22)

2201619

Unavailable

2

STUD,CYL.FLANGE,152MM,SPS

5131677

Unavailable

3

PIN-DOWEL,M8 X 16 SS

7663001

$11.11

4

Fitting

7052145

$9.52

5

CLAMP-STATOR WIRES

5243231

Unavailable

6

SCREW,(10)

7517431

$5.56

7

Bushing

3569805

$3.17

8

PLUG-TIMING HOLE,3/4X16,NYLON

5433130

$24.27

9

BUSHING,PLASTIC

3574214

$5.00

10

Spring

7041457

Unavailable

11

Bushing

3569806

Unavailable

12

Screw

7517676

Unavailable

13

BOLT(10)

7516806

Unavailable

14

COVER,FLYWHEEL ASM. (Incl. 11)

1201923

$90.48

15

GASKET,FLYWHEEL COVER

5811550

Unavailable

16

BOLT(10)

7516723

Unavailable

17

Pin, Dowel

7663002

$4.76

18

O-Ring

5411564

$4.03

19

FLYWHEEL,HOUSING (Incl. 7,17)

1201938

$163.49

20

SCREW Substituted by 7516720

7517628

Unavailable

21

PLUG Substituted by 7052311

7051529

Unavailable

22

BOLT, S.S

7516913

Unavailable
