SHROUD - W025198C/D/I (4971357135A03)

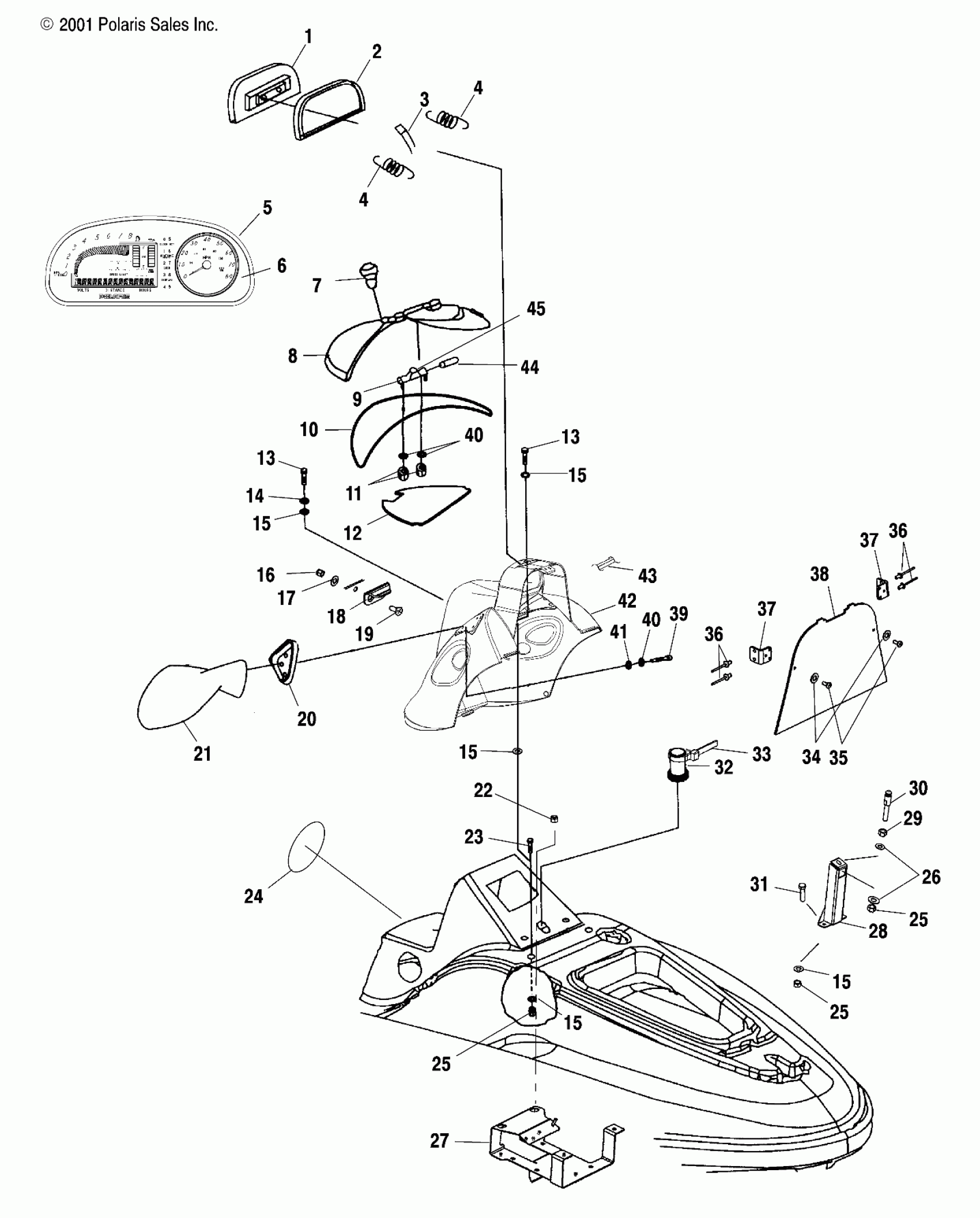

Polaris VIRAGE TXI - W025198C SHROUD - W025198C/D/I (4971357135A03) Diagram
#
1
Gauge, MFI
3280365
Unavailable
2
Gasket, MFI
5411738
Unavailable
3
Line, Pitot, Formed End
8450070-190
Unavailable
4
Spring, MFI Mounting
7041931
Unavailable
4
Spring, MFI Mounting
7041931
Unavailable
5
Kit, MFI Button Replacement
2201593
Unavailable
6
Bezel, MFI, Overlay
3280342
Unavailable
7
Asm., Console Latch
2653011
Unavailable
8
Lid, Console
5434564-1131
Unavailable
9
Spring, Torsion, Console
7042007
Unavailable
10
Seal
5521596
Unavailable
11
Nut
7546705
$4.79
12
Pad, Console
5812235
Unavailable
13
Screw
7517668
Unavailable
13
Screw
7517668
Unavailable
14
Washer, Lock
7556055
Unavailable
15
Washer, Flat
7555831
Unavailable
15
Washer, Flat
7555831
Unavailable
15
Washer, Flat
7555831
Unavailable
15
Washer, Flat
7555831
Unavailable
15
Washer, Flat
7555831
Unavailable
16
NUT-6 MM X 1.00-NYLOK-SS
7546704
$1.75
17
WASHER-6.4MMX18X1.6,SS
7556094
$4.79
18
Hook, Console
5245455
Unavailable
19
Screw
7517669
Unavailable
20
Gasket, Mirror, LH
5411557
Unavailable
20
Gasket, Mirror, RH
5411558
Unavailable
21
Asm., Mirror, LH
2631972-070
Unavailable
21
Asm., Mirror, RH
2631973-070
Unavailable
22
NUT-6 MM X 1.00-NYLOK-SS
7546704
$1.75
23
Screw
7516807
Unavailable
24
Grommet, Access
5411674
Unavailable
25
NUT, NYLOK
7546804
$1.49
25
NUT, NYLOK
7546804
$1.49
25
NUT, NYLOK
7546804
$1.49
26
Washer, Flat
7555835
Unavailable
27
Bracket, EMM
5245934
Unavailable
28
Post, Door Latch
1821213
Unavailable
29
Nut
7547187
Unavailable
30
Pin
5132781
Unavailable
31
Screw
7517539
Unavailable
32
Grommet, Deck, Wire Harness
5411664
Unavailable
33
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
34
Washer, Flat
7555837
Unavailable
35
Screw
7511873
Unavailable
36
Rivet
7621220
$2.39
36
Rivet
7621220
$2.39
37
Bracket, Shroud Cover
5245451
Unavailable
37
Bracket, Shroud Cover
5245451
Unavailable
38
Cover, Shroud
5812284
Unavailable
39
Screw
7516805
Unavailable
40
Washer, Lock
7552613
Unavailable
40
Washer, Lock
7552613
Unavailable
41
WASHER-6.4MMX18X1.6,SS
7556094
$4.79
42
Shroud, Steering
5434561-1131
Unavailable
43
Bumper, Door/Shroud
5812076
Unavailable
44
Pin, Hinge
5333698
Unavailable
45
Hinge, Console
5433384
Unavailable
