HULL and BODY - W025198C/D/I (4971357135A05)

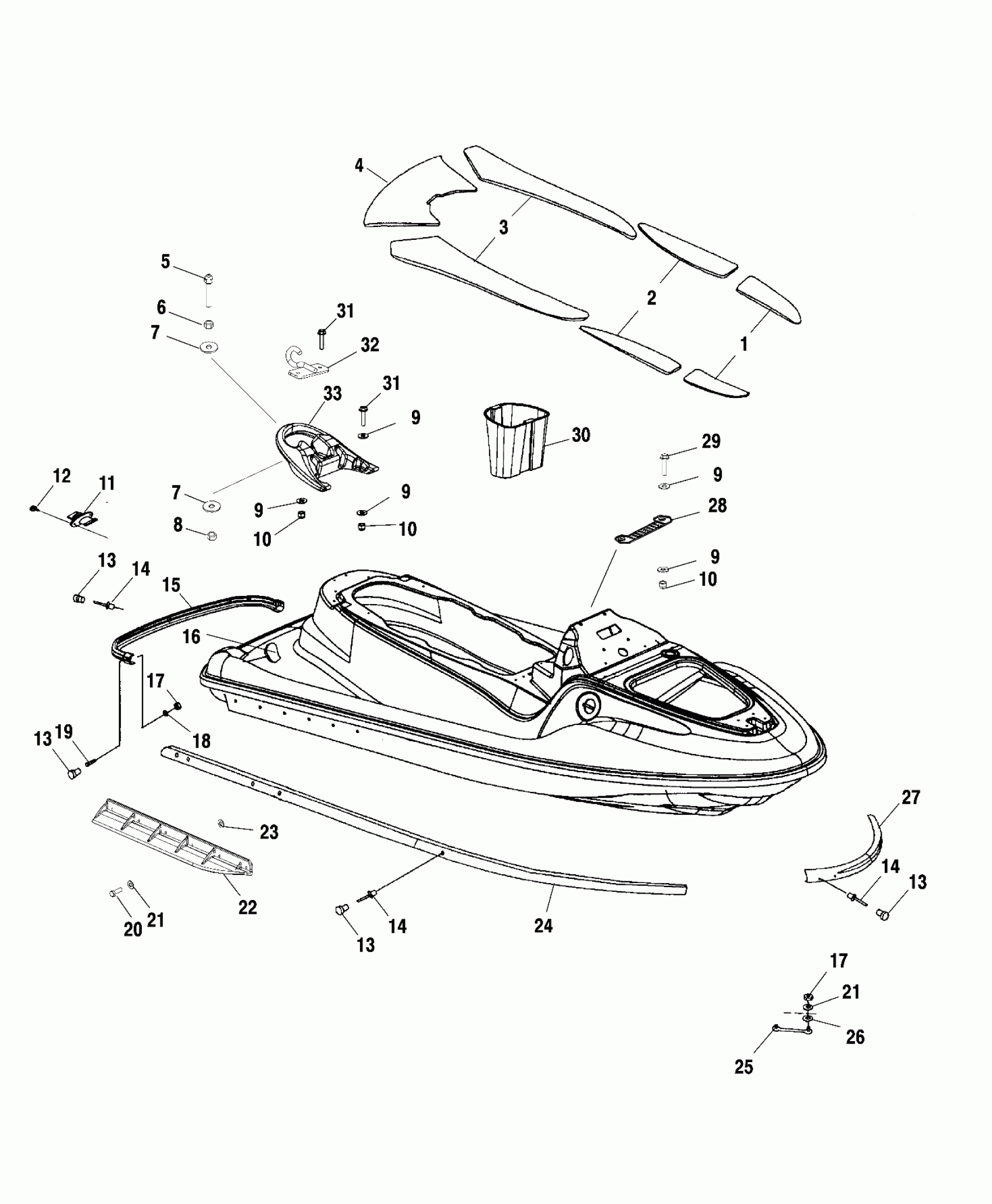

Polaris VIRAGE TXI - W025198C HULL and BODY - W025198C/D/I (4971357135A05) Diagram
#
1
Pad, Footwell, Front, LH
5812370-318
Unavailable
1
Pad, Footwell, Front, RH
5812371-318
Unavailable
2
Pad, Footwell, Center, LH
5812372-318
Unavailable
2
Pad, Footwell, Center, RH
5812373-318
Unavailable
3
Pad, Footwell, Rear, LH
5812374-318
Unavailable
3
Pad, Footwell, Rear, RH
5812375-318
Unavailable
4
Pad, Boarding
5812376-318
Unavailable
5
Plunger, Latch
5020753
Unavailable
6
Nut
7542454
Unavailable
7
WASHER, FLAT
7555846
$5.59
7
WASHER, FLAT
7555846
$5.59
8
Nut, Nylok
7542455
Unavailable
9
WASHER-6.4MMX18X1.6,SS
7556094
$4.79
9
WASHER-6.4MMX18X1.6,SS
7556094
$4.79
9
WASHER-6.4MMX18X1.6,SS
7556094
$4.79
9
WASHER-6.4MMX18X1.6,SS
7556094
$4.79
9
WASHER-6.4MMX18X1.6,SS
7556094
$4.79
10
NUT-6 MM X 1.00-NYLOK-SS
7546704
$1.75
10
NUT-6 MM X 1.00-NYLOK-SS
7546704
$1.75
10
NUT-6 MM X 1.00-NYLOK-SS
7546704
$1.75
11
Asm., Bilge Plug
1060125
Unavailable
12
Screw
7511882
Unavailable
13
Plug, Bumper, Rear
5431994-070
Unavailable
13
Plug, Bumper, Rear
5431994-070
Unavailable
13
Plug, Bumper, Rear
5431994-070
Unavailable
13
Plug, Bumper, Rear
5431994-070
Unavailable
14
Rivet
7621511
Unavailable
14
Rivet
7621511
Unavailable
14
Rivet
7621511
Unavailable
15
Bumper, Rear
5433531-070
Unavailable
16
Pad, Heel, LH
5811918
Unavailable
16
Pad, Heel, RH
5811919
Unavailable
17
Nut, Nylok
7542133
Unavailable
17
Nut, Nylok
7542133
Unavailable
18
Washer, Flat
7555836
$3.99
19
Bolt, Carriage
7517320-070
Unavailable
20
Screw
7515198
Unavailable
21
Washer, Flat
7555839
Unavailable
21
Washer, Flat
7555839
Unavailable
22
Sponson, LH
5432274-070
Unavailable
22
Sponson, RH
5432275-070
Unavailable
23
Washer, Rubber
5811440
$2.07
24
Rail, Rub, Side, LH
5521568-070
Unavailable
24
Rail, Rub, Side, RH
5521569-070
Unavailable
25
STRAP, BOW
2670150
Unavailable
26
Washer, Dish, Rubber
7555870
Unavailable
27
Bumper, Front
5411758-070
Unavailable
28
Plate, Seat Tongue
5433671
Unavailable
29
Screw
7517798
$3.99
30
Bucket, Rear Storage
5433473
Unavailable
31
Screw
7517644
Unavailable
31
Screw
7517644
Unavailable
32
Hook, Tow
2632218
Unavailable
33
Handle, Grab
5433474-070
Unavailable
