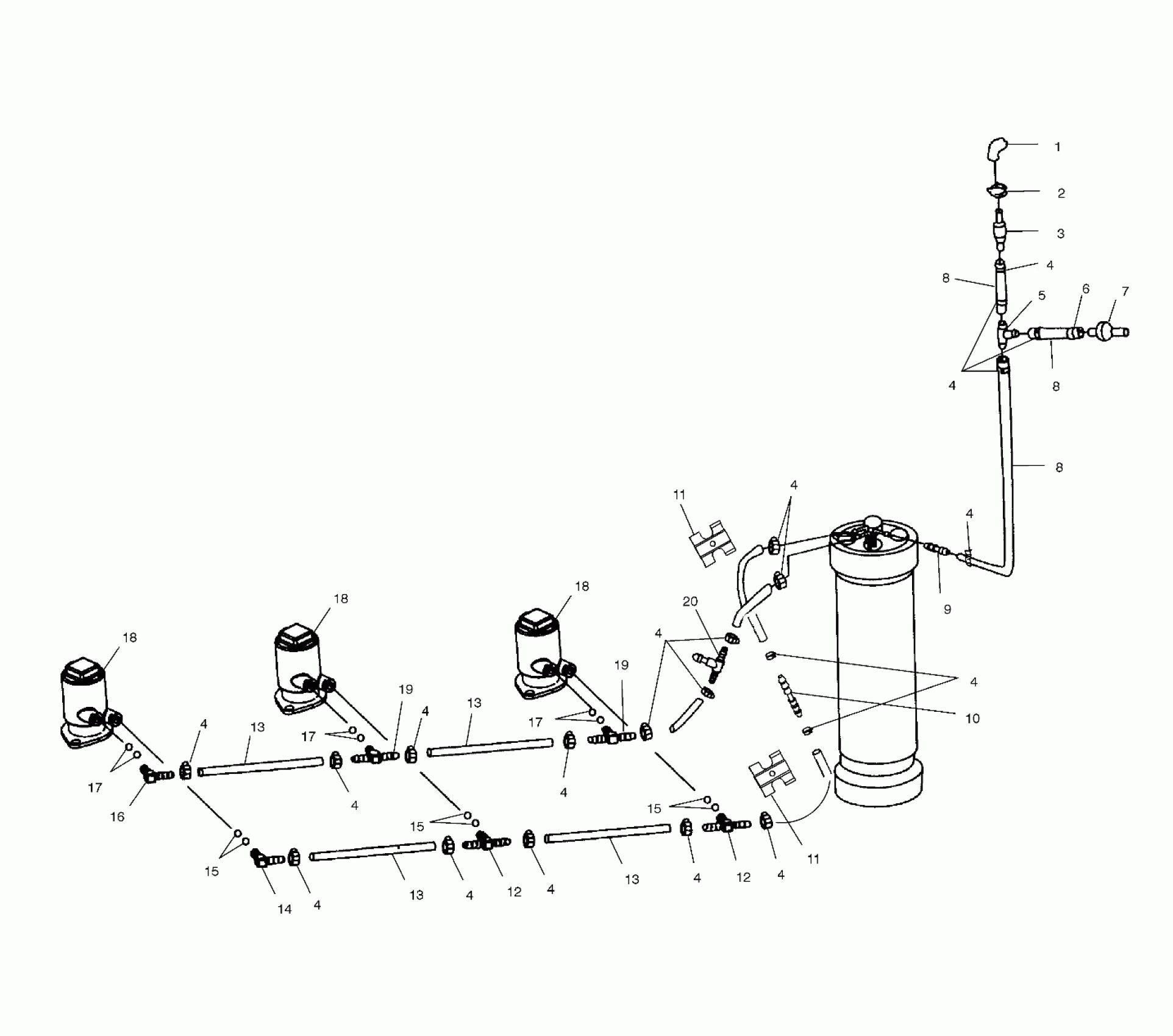

Polaris VIRAGE TXI - W025198C FUEL SYSTEM - W025198C/D/I (4971357135A10) Diagram

#

Description
Price

1

Grommet, Vent

5410682

Unavailable

2

Cable Tie

7080483

Unavailable

3

Valve, Relief Check

7051015

Unavailable

4

Clamp

7080476

$6.39

4

Clamp

7080476

$6.39

4

Clamp

7080476

$6.39

4

Clamp

7080476

$6.39

4

Clamp

7080476

$6.39

4

Clamp

7080476

$6.39

4

Clamp

7080476

$6.39

4

Clamp

7080476

$6.39

4

Clamp

7080476

$6.39

4

Clamp

7080476

$6.39

4

Clamp

7080476

$6.39

4

Clamp

7080476

$6.39

4

Clamp

7080476

$6.39

4

Clamp

7080476

$6.39

4

Clamp

7080476

$6.39

5

Fitting, Tee

7052111

Unavailable

6

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

7

Value, Vacuum Check

7052118

Unavailable

8

Line, Fuel

8450046-1525

Unavailable

8

Line, Fuel

8450046-1525

Unavailable

8

Line, Fuel

8450046-1525

Unavailable

9

Connector

7052253

Unavailable

10

Fitting

7052329

Unavailable

11

T-Clip

7080482

$6.39

11

T-Clip

7080482

$6.39

12

Fitting, T, Large

7052230

Unavailable

12

Fitting, T, Large

7052230

Unavailable

13

Line, Fuel

8450085

Unavailable

13

Line, Fuel

8450085

Unavailable

13

Line, Fuel

8450085

Unavailable

13

Line, Fuel

8450085

Unavailable

14

L-Fitting, Large

7052229

Unavailable

15

O-Ring, DFI Fitting, Large

5411601

Unavailable

15

O-Ring, DFI Fitting, Large

5411601

Unavailable

15

O-Ring, DFI Fitting, Large

5411601

Unavailable

16

L-Fitting, Small

7052227

Unavailable

17

O-Ring, DFI Fitting, Small

5411599

Unavailable

17

O-Ring, DFI Fitting, Small

5411599

Unavailable

17

O-Ring, DFI Fitting, Small

5411599

Unavailable

18

INJECTOR [See Manifold/Ignition Pg. C3, Ref. 6]

-------

Unavailable

18

INJECTOR [See Manifold/Ignition Pg. C3, Ref. 6]

-------

Unavailable

18

INJECTOR [See Manifold/Ignition Pg. C3, Ref. 6]

-------

Unavailable

19

T-Fitting, Small

7052228

Unavailable

19

T-Fitting, Small

7052228

Unavailable

20

FICHT w/Cap, Shrader Valve

2872602

Unavailable
