EXHAUST SYSTEM - W025198C/D/I (4971357135B03)

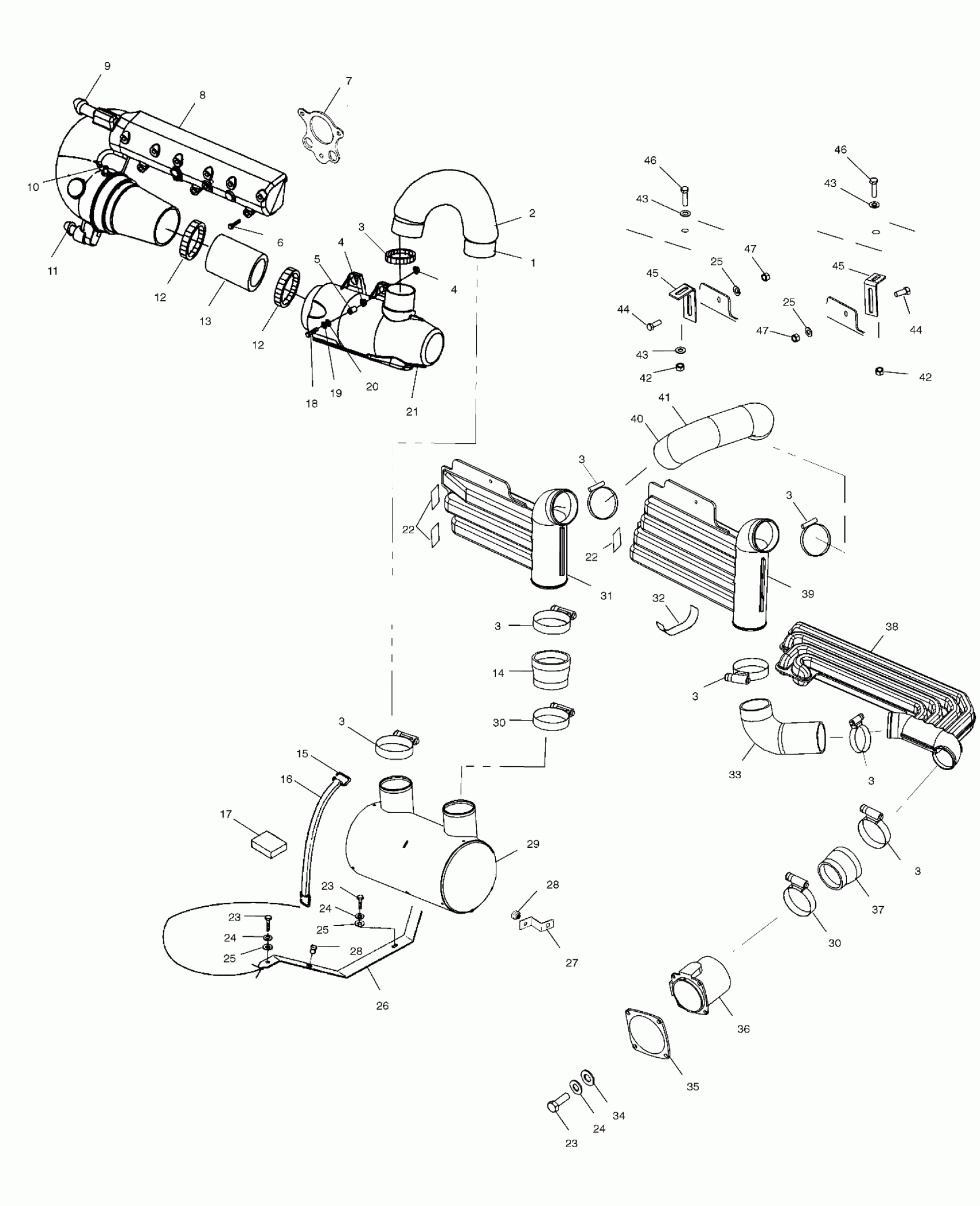

Polaris VIRAGE TXI - W025198C EXHAUST SYSTEM - W025198C/D/I (4971357135B03) Diagram
#
1
Hose, Pipe/Silencer
5411993
Unavailable
2
Conduit
5521546
Unavailable
3
CLAMP, HOSE
7080907
$11.19
3
CLAMP, HOSE
7080907
$11.19
3
CLAMP, HOSE
7080907
$11.19
3
CLAMP, HOSE
7080907
$11.19
3
CLAMP, HOSE
7080907
$11.19
3
CLAMP, HOSE
7080907
$11.19
3
CLAMP, HOSE
7080907
$11.19
3
CLAMP, HOSE
7080907
$11.19
4
Grommet, Rubber
5411547
Unavailable
4
Grommet, Rubber
5411547
Unavailable
5
Tube, Spacer
5132567
Unavailable
6
Screw
7517562
$13.59
7
Gasket, Exhaust, Flange
5811045
Unavailable
8
Asm., Manifold, Exhaust [Incl. 10,11]
1261125-329
Unavailable
9
Fitting, Exhaust Screen
7052105
Unavailable
10
Fitting, Exhaust Injector
7052251
Unavailable
11
Fitting, Water Inlet
7052071
Unavailable
12
Clamp
7080972
Unavailable
12
Clamp
7080972
Unavailable
13
Hose, Exhaust Pipe Coupler
5411887
Unavailable
14
Hose, 3x3
5412061
Unavailable
15
D-Hook
5224472
$2.19
16
Strap, Rubber
5430621
$20.22
17
Pad
5811341
Unavailable
18
Screw
7516911
Unavailable
19
Washer, Lock
7552608
Unavailable
20
Washer, Flat
7555841
Unavailable
21
Pipe, Exhaust
1261110-329
Unavailable
22
Pad
5812094
Unavailable
22
Pad
5812094
Unavailable
23
Screw
7515127
Unavailable
23
Screw
7515127
Unavailable
23
Screw
7515127
Unavailable
24
Washer, Lock
7555838
Unavailable
24
Washer, Lock
7555838
Unavailable
24
Washer, Lock
7555838
Unavailable
25
Washer, Flat
7555839
Unavailable
25
Washer, Flat
7555839
Unavailable
25
Washer, Flat
7555839
Unavailable
25
Washer, Flat
7555839
Unavailable
26
Cradle, Silencer
5241732
Unavailable
27
Bracket, Silencer, Short
5243742
Unavailable
28
Bumper, Rubber
5410414
$3.19
28
Bumper, Rubber
5410414
$3.19
29
Silencer, Exhaust
1261085-067
Unavailable
30
Clamp, Hose
7080445
Unavailable
30
Clamp, Hose
7080445
Unavailable
31
Resonator 1
5433812
Unavailable
32
Pad, Resonator Bracket
5830197
Unavailable
33
Hose, Crossover
5411863
Unavailable
34
Washer, Flat
7555836
$3.99
35
Seal
5810529
Unavailable
36
Fitting, Exhaust
5132457
Unavailable
37
Hose, Exhaust
5411951
Unavailable
38
Resonator 3
5433629
Unavailable
39
Resonator 2
5433813
Unavailable
40
Hose, Crossover [Incl. 41]
5411932
Unavailable
41
Conduit
5521561
Unavailable
42
NUT-6 MM X 1.00-NYLOK-SS
7546704
$1.75
42
NUT-6 MM X 1.00-NYLOK-SS
7546704
$1.75
43
Washer, Rubber Dish
7555870
Unavailable
43
Washer, Rubber Dish
7555870
Unavailable
43
Washer, Rubber Dish
7555870
Unavailable
44
Screw
7517870
Unavailable
44
Screw
7517870
Unavailable
45
Bracket
5245130
Unavailable
45
Bracket
5245130
Unavailable
46
Screw
7517798
$3.99
46
Screw
7517798
$3.99
47
Nut, Nylok
7542133
Unavailable
47
Nut, Nylok
7542133
Unavailable
