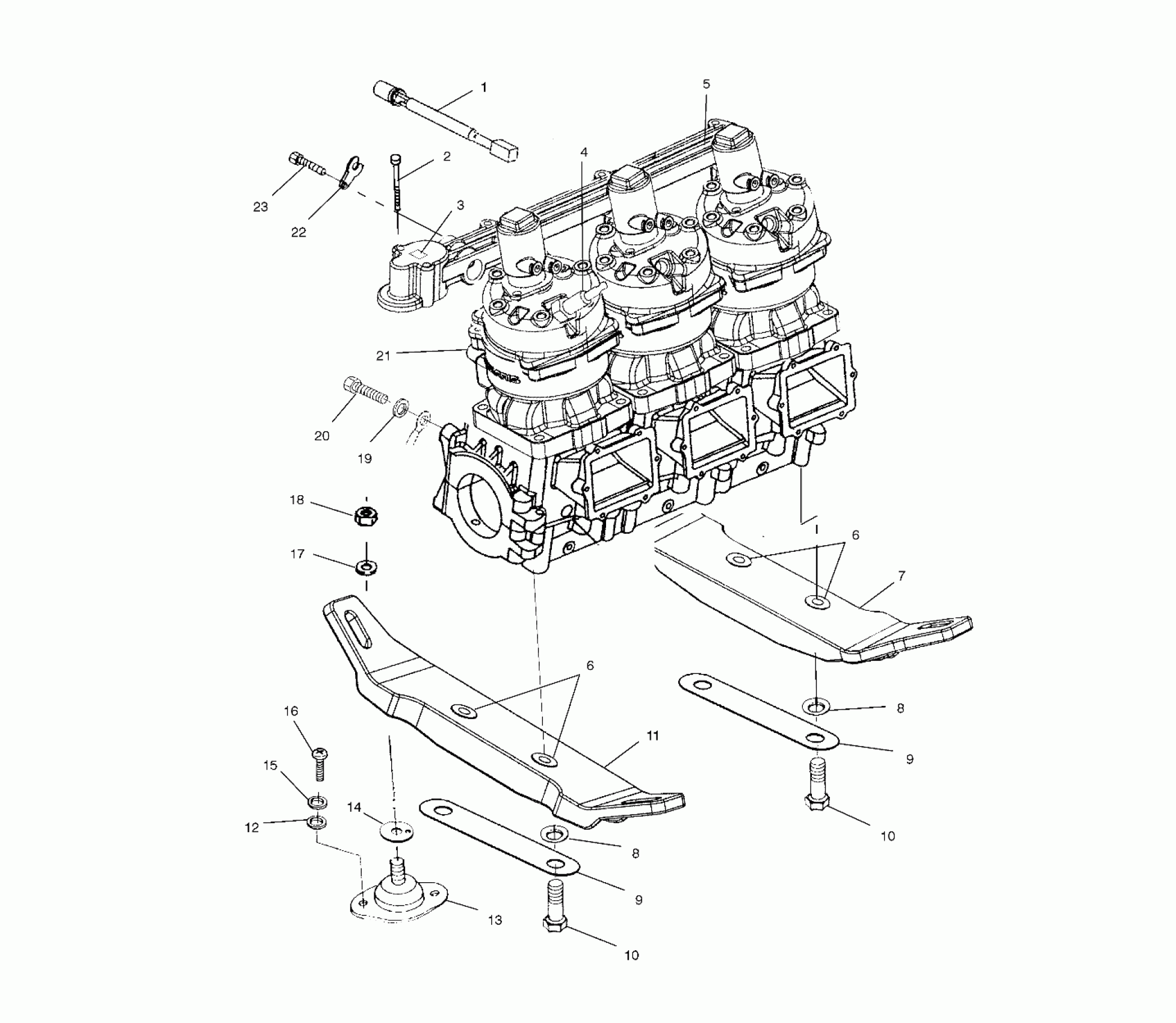

Polaris VIRAGE TXI - W025198C ENGINE MOUNTING - W025198C/D/I (4971357135C01) Diagram

#

Description
Price

1

Sensor, Water Temp

2410125

Unavailable

2

Screw

7515149

Unavailable

3

Decal, Spark Plug

7077026

$2.94

4

SPARK PLUG [See Manifold/Ignition Pg. C3, Ref. 19]

----

Unavailable

5

DECAL, WARNING [See Manifold/Ignition Pg. C3, Ref. 2]

----

Unavailable

6

Washer

7556184

$3.81

6

Washer

7556184

$3.81

7

Plate, Mount, Front

5631166-329

$139.68

8

Washer, Flat

7556170

Unavailable

8

Washer, Flat

7556170

Unavailable

9

Plate, Lock

5245460

$13.10

9

Plate, Lock

5245460

$13.10

10

Screw

7517330

Unavailable

10

Screw

7517330

Unavailable

11

Plate, Rear Mount

5631167-329

Unavailable

12

Washer, Flat

7555866

Unavailable

13

Mount, Engine

3021254

$73.81

14

Shim, Engine Mount

5211727

Unavailable

15

Washer, Lock

7552610

Unavailable

16

Screw

7517627

Unavailable

17

Washer, Flat

7555848

Unavailable

18

Nut, Nylok

7542725

$3.59

19

Washer, Lock

7556055

Unavailable

20

Screw

7517497

$3.97

21

Kit, Short Block, NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly.

2201705

Unavailable

22

Clip, Retainer

5244176

$4.76

23

BOLT

7516603

$10.32
