CRANKSHAFT and PISTON - W025198C/D/I (4971357135C05)

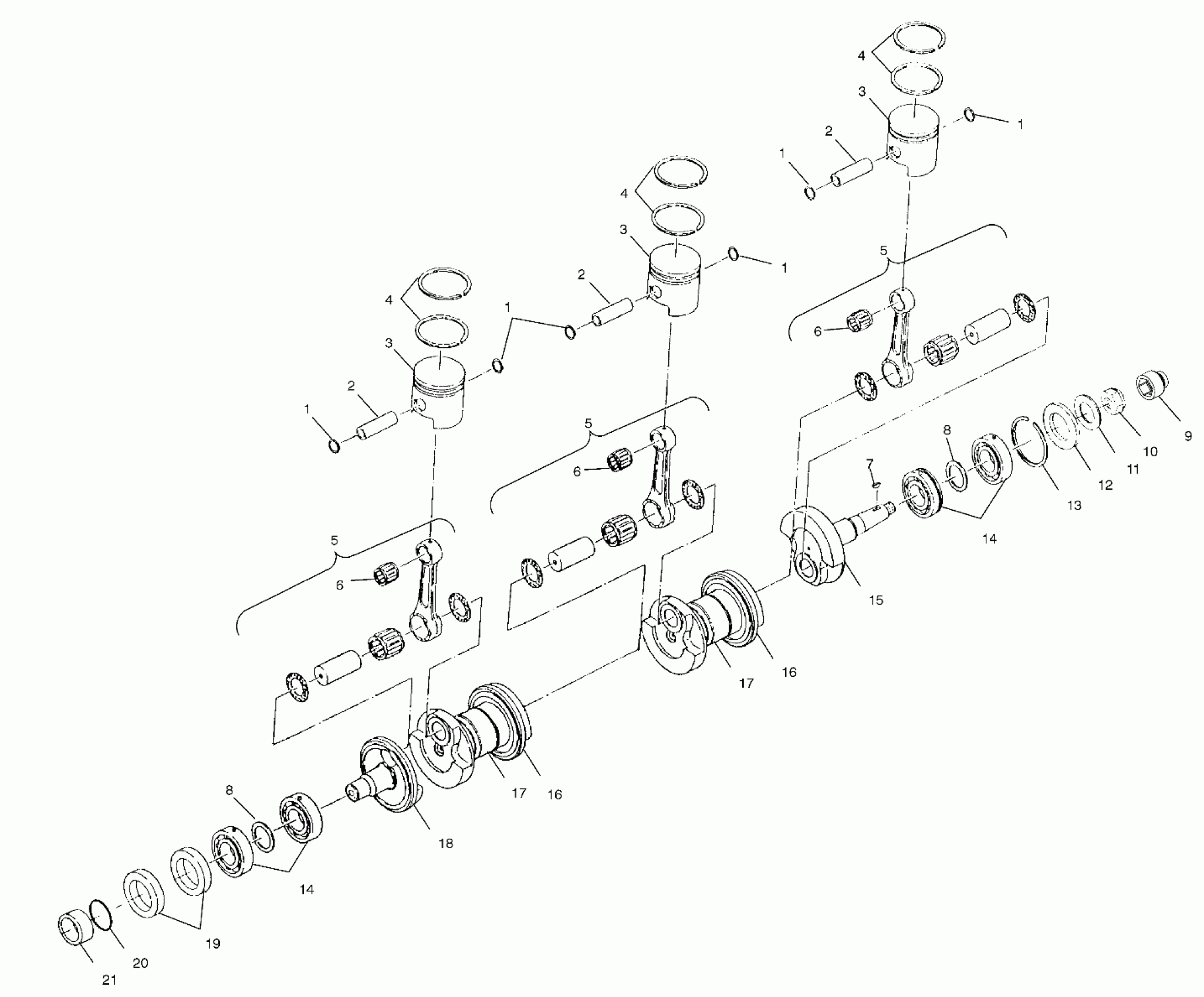

Polaris VIRAGE TXI - W025198C CRANKSHAFT and PISTON - W025198C/D/I (4971357135C05) Diagram
#
-
Kit, Crankshaft, 1200 Triple [Incl. 6,8,14-18]
2201444
Unavailable
1
Circlip, Piston
3023031
Unavailable
1
Circlip, Piston
3023031
Unavailable
1
Circlip, Piston
3023031
Unavailable
1
Circlip, Piston
3023031
Unavailable
1
Circlip, Piston
3023031
Unavailable
2
Pin, Piston
3023030
Unavailable
2
Pin, Piston
3023030
Unavailable
2
Pin, Piston
3023030
Unavailable
3
Kit, Piston Asm. [Std.][Incl.1,2,4]
2201706
Unavailable
3
Kit, Piston Asm. [.25 mm O/S] [Incl.1,2,4]
2201707
Unavailable
3
Kit, Piston Asm. [.50 mm O/S] [Incl. 1,2,4]
2201708
Unavailable
3
Kit, Piston Asm. [Std.][Incl.1,2,4]
2201706
Unavailable
3
Kit, Piston Asm. [.25 mm O/S] [Incl.1,2,4]
2201707
Unavailable
3
Kit, Piston Asm. [.50 mm O/S] [Incl. 1,2,4]
2201708
Unavailable
3
Kit, Piston Asm. [Std.][Incl.1,2,4]
2201706
Unavailable
3
Kit, Piston Asm. [.25 mm O/S] [Incl.1,2,4]
2201707
Unavailable
3
Kit, Piston Asm. [.50 mm O/S] [Incl. 1,2,4]
2201708
Unavailable
4
Kit, Piston Rings [Standard]
2201449
Unavailable
4
Kit, Piston Rings [.25 mm O/S]
2201450
Unavailable
4
Kit, Piston Rings [.50 mm O/S]
2201451
Unavailable
4
Kit, Piston Rings [Standard]
2201449
Unavailable
4
Kit, Piston Rings [.25 mm O/S]
2201450
Unavailable
4
Kit, Piston Rings [.50 mm O/S]
2201451
Unavailable
4
Kit, Piston Rings [Standard]
2201449
Unavailable
4
Kit, Piston Rings [.25 mm O/S]
2201450
Unavailable
4
Kit, Piston Rings [.50 mm O/S]
2201451
Unavailable
5
Kit, Connecting Rod Asm.
2201445
Unavailable
5
Kit, Connecting Rod Asm.
2201445
Unavailable
5
Kit, Connecting Rod Asm.
2201445
Unavailable
6
Bearing
3552112
Unavailable
6
Bearing
3552112
Unavailable
6
Bearing
3552112
Unavailable
7
KEY, WOODRUFF
7721117
$24.99
8
Bushing
7555905
$3.99
8
Bushing
7555905
$3.99
9
Coupler, Pump Drive
5432576
Unavailable
10
Nut
7546909
Unavailable
11
WASHER
7555907
$5.59
12
Seal
3610044
$24.27
13
Ring, Retaining
7710441
Unavailable
14
Bearing, Ball, Deep Groove
3585503
$31.99
14
Bearing, Ball, Deep Groove
3585503
$31.99
15
Crankweb, MAG, 70 mm
5131744
Unavailable
16
Crankweb, Center, 70 mm
5131745
Unavailable
16
Crankweb, Center, 70 mm
5131745
Unavailable
17
Labyrinth
5131086
Unavailable
17
Labyrinth
5131086
Unavailable
18
Crankweb, PTO, 70 mm
5131746
Unavailable
19
Seal
5411937
Unavailable
20
O-RING
5410613
$1.99
21
Collar, Crankshaft
5131195
Unavailable
