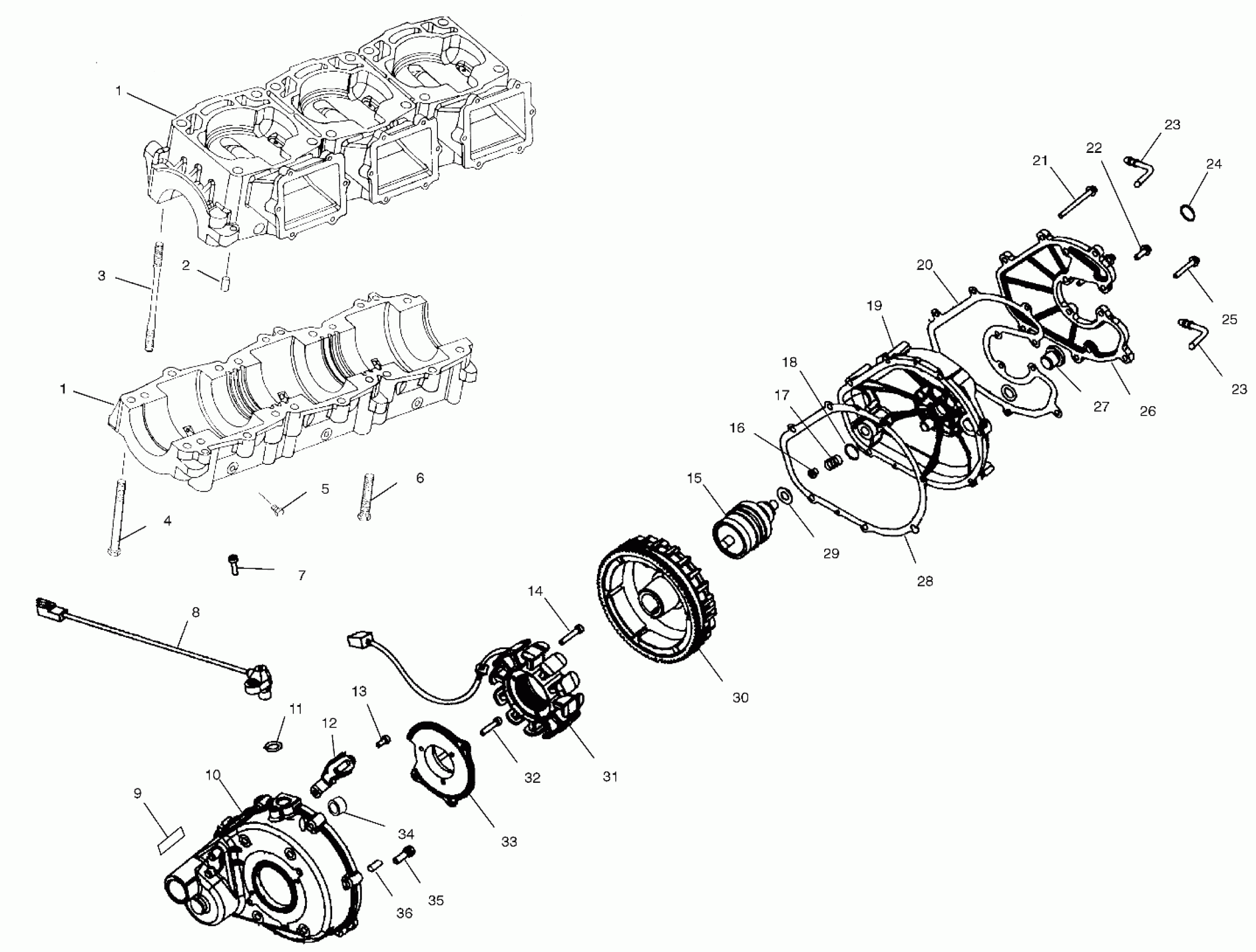

Polaris VIRAGE TXI - W025198C CRANKCASE - W025198C/D/I (4971357135C02) Diagram

#

Description
Price

1

Kit, Crankcase, 1200 [Incl. 2-6]

2201562

$1,019.99

1

Kit, Crankcase, 1200 [Incl. 2-6]

2201562

$1,019.99

2

PIN-DOWEL,M8 X 16 SS

7663001

$11.11

3

Stud, Cylinder Flange

5131677

Unavailable

4

Screw

7516913

Unavailable

5

Plug

7051529

Unavailable

6

Screw

7517628

Unavailable

7

Screw

7517619

$1.75

8

Sensor, Crank Position

2410128

Unavailable

9

Decal, Emissions

7079899

Unavailable

10

Asm., Flywheel Housing [Incl. 34,36]

1202023

Unavailable

11

O-Ring

5411564

$4.03

12

Clamp, Stator Wires

5243231

Unavailable

13

SCREW

7517431

$5.56

14

Screw

7517602

Unavailable

15

Asm., Bendix

4060119

$292.59

16

Bushing

3574214

$5.00

17

Spring

7041457

Unavailable

18

Bushing

3569806

Unavailable

19

Cover, Flywheel

1201911

$111.11

20

Gasket, Water Jacket Cover

5812011

Unavailable

21

Screw

7517662

Unavailable

22

Screw

7516809

Unavailable

23

Fitting, 90 Degree

7052156

$30.00

23

Fitting, 90 Degree

7052156

$30.00

24

O-Ring

5411293

Unavailable

25

Screw

7516806

Unavailable

26

Cover, Water Jacket

5630981-329

$98.41

27

Plug, Timing Hole

5433820

$24.27

28

Gasket, Flywheel Cover

5811550

Unavailable

29

Washer, Thrust

7555908

$3.17

30

Asm., Flywheel

4010168

Unavailable

31

Stator, Ignition

4010320

$464.99

32

Screw

7517620

$2.54

33

Plate, Stator Mount

5631069

Unavailable

34

Bushing

3569805

$3.17

35

Screw

7516723

Unavailable

36

Dowel, Pin

7663002

$4.76
