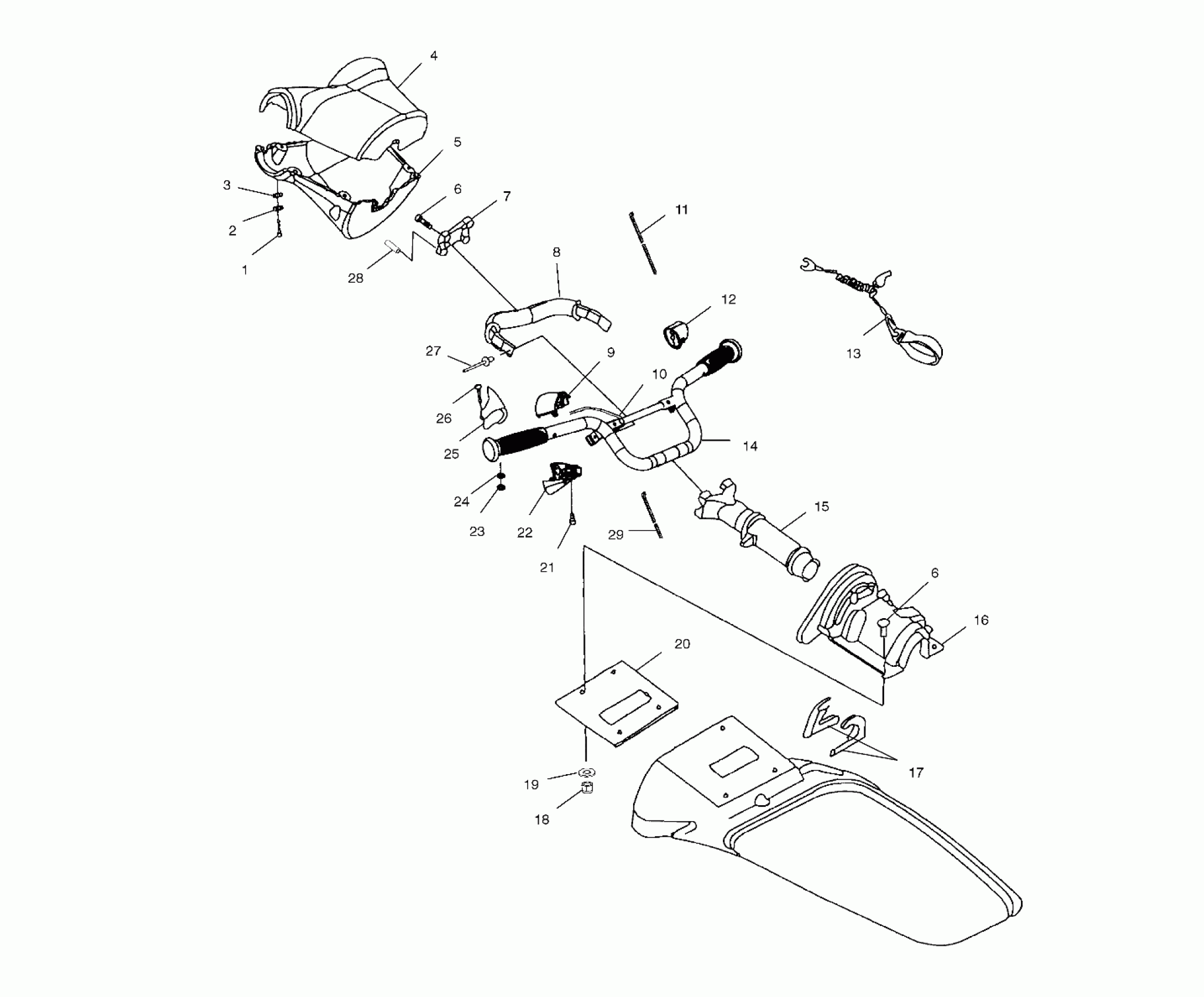

Polaris VIRAGE TXI - W015198D STEERING - W015198D (4964846484A013) Diagram

#

Description
Price

1

SCR-M6X1.0X12 PH/PAN HD-SS

7517717

$1.11

2

WASHER, LOCK(10)

7552613

Unavailable

3

WASHER(10)

7555836

$3.99

4

PAD-HANDLEBAR,TOP,BLK

5433901-070

$65.87

5

PAD-HANDLEBAR,BOTTOM,BLK

5433899-070

$29.52

6

SCREW (10)

7517660

$6.35

6

SCREW (10)

7517660

$6.35

7

CLAMP-HANDLEBAR,PWC W/PIN

5631017

Unavailable

8

HANDLE-GRAB,HANDLEBAR,BLACK

5433355-070

Unavailable

9

BLOCK-THROTTLE,SPLIT

5433081

$49.21

10

CABLE,THROTTLE Substituted by 7081021

7080787

Unavailable

11

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

12

BUTTON-START/STOP,LH,COMPLETE

5434236

$222.22

12

SWITCH-STOP/BILGE/RVS

2410238

Unavailable

13

LANYARD,W/WHISTLE

7080675

Unavailable

14

ASM-HANDLEBAR,W/GRIP,HAVASU RD

1820994-292

$180.16

15

COLUMN-STEERING,W/PIN

5132317

$130.95

16

HOUSING,STEERING Substituted by 2873571

5433136

Unavailable

17

BEARING,STEERING

5433135

Unavailable

18

NUT, HEX, S.S.(10)

7542335

Unavailable

19

WASHER, FLAT, S.S.(10)

7555831

Unavailable

20

GASKET,HSG,STRNG.

5811551

$6.49

21

SCR,#12-16X3/4

7517787

Unavailable

22

CLAMP,BLOCK,THRTL,NO TAP

5433737

$12.70

23

RING,RETAIN.EXT.,S.S.(10)

7710426

Unavailable

24

WASHER, FLAT, S.S.(10)

7555840

$3.33

25

LEVER-THROTTLE,THUMB

5433079

Unavailable

26

PIN,RETAINING

7661053

$12.21

27

RIVET

7621478

Unavailable

28

PIN,ROLL,3/16X1.25,SS

7661099

$0.95

29

STRAP, PANDUIT,4 IN.(10)

7080483

Unavailable
