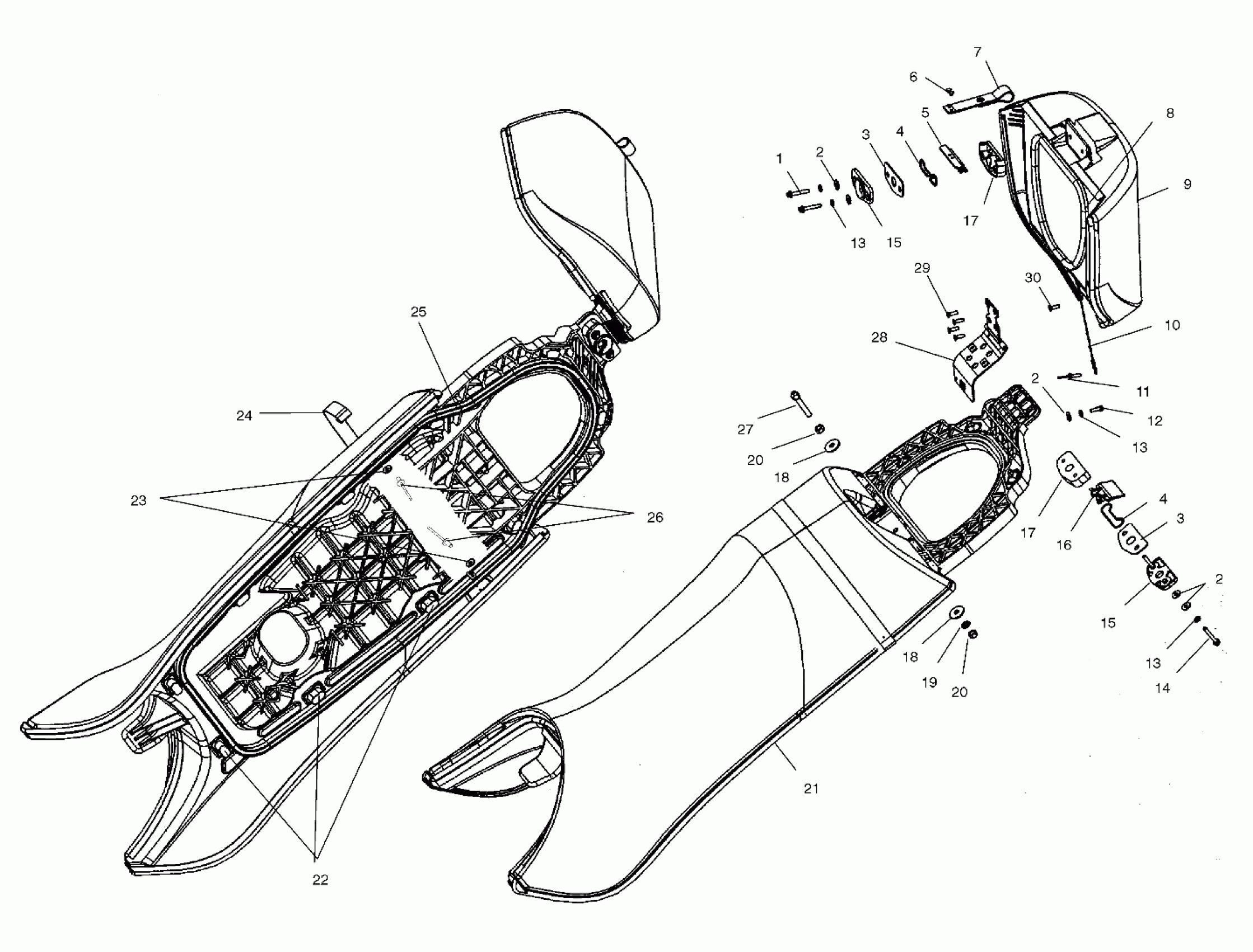

Polaris VIRAGE TXI - W015198D SEAT - W015198D (4964846484A011) Diagram

#

Description
Price

-

ASM-SEAT,FINAL,VIRAGEFFI,BLACK (Incl. 1-30)

2682775-303

$560.45

1

BOLT(10)

7516806

Unavailable

2

WASHER, FLAT, S.S.(10)

7555839

Unavailable

2

WASHER, FLAT, S.S.(10)

7555839

Unavailable

2

WASHER, FLAT, S.S.(10)

7555839

Unavailable

3

PLATE,SEATBASE LATCH

5211314

$4.92

3

PLATE,SEATBASE LATCH

5211314

$4.92

4

SPRING,SEATBASE LATCH

7042036

Unavailable

4

SPRING,SEATBASE LATCH

7042036

Unavailable

5

HANDLE,SEAT LATCH,W/HOLES

5433779

$10.63

6

RIVET

7621478

Unavailable

7

STRAP,SEAT LATCH,VIRAGE

5812025

Unavailable

8

SEAL,SEAT,REAR,MS

5411807

Unavailable

9

ASM-SEAT,REAR,VIRAGE,BLACK

2682774-303

$206.38

9

COVER-SEAT,REAR,EURO,VIRAGE,BL

2682663-303

$130.95

10

CABLE,LIMITER,HINGE,8.0

7080914

$23.02

11

RIVET-POP 3/16 (.523-.750)AL-B [No Longer Available]

7661044

Unavailable

12

SCR,M6X1.0X20 Substituted by 7516805

7517805

$0.71

13

WASHER, LOCK, S.S.(10)

7555838

Unavailable

13

WASHER, LOCK, S.S.(10)

7555838

Unavailable

13

WASHER, LOCK, S.S.(10)

7555838

Unavailable

14

SCREW,M6X1.0X45

7517806

$1.56

15

PLATE,LATCH,BOT.SEAT BASE

5431357

$5.71

15

PLATE,LATCH,BOT.SEAT BASE

5431357

$5.71

16

HANDLE, SEAT

5431358

Unavailable

17

PLATE,TOP,SEATBASE LATCH

5431359

Unavailable

17

PLATE,TOP,SEATBASE LATCH

5431359

Unavailable

18

WASHER, FLAT(10)

7555846

$5.56

18

WASHER, FLAT(10)

7555846

$5.56

19

WASHER, LOCK, S.S.(10)

7552607

$1.39

20

NUT, HEX, S.S.,(10)

7542454

Unavailable

20

NUT, HEX, S.S.,(10)

7542454

Unavailable

21

ASM-SEAT,MAIN,VIRAGE FFI,BLACK

2682772-303

Unavailable

21

COVER-SEAT,MAIN,EURO,VIRAGE,BL

2682665-303

$163.49

22

BUMPER-SEAT

5521490

Unavailable

23

WASHER-SEAT STRAP,2 HOLE

5245090

Unavailable

24

STRAP-SEAT,VIRAGE,4 HOLE,BLK

2682677-303

Unavailable

25

SEAL,SEAT,MAIN,MS

5521536

$61.87

26

RIVET-POP,1/8(.126-.375)AL-AL(50)

7661108

Unavailable

27

PLUNGER,LATCH

5020753

Unavailable

28

ASM-HINGE,SEAT,VIRAGE

1013431

$70.24

29

SCREW (10)

7517669

Unavailable

30

SCR-M6X1.0X12 PH/PAN HD-SS

7517717

$1.11
