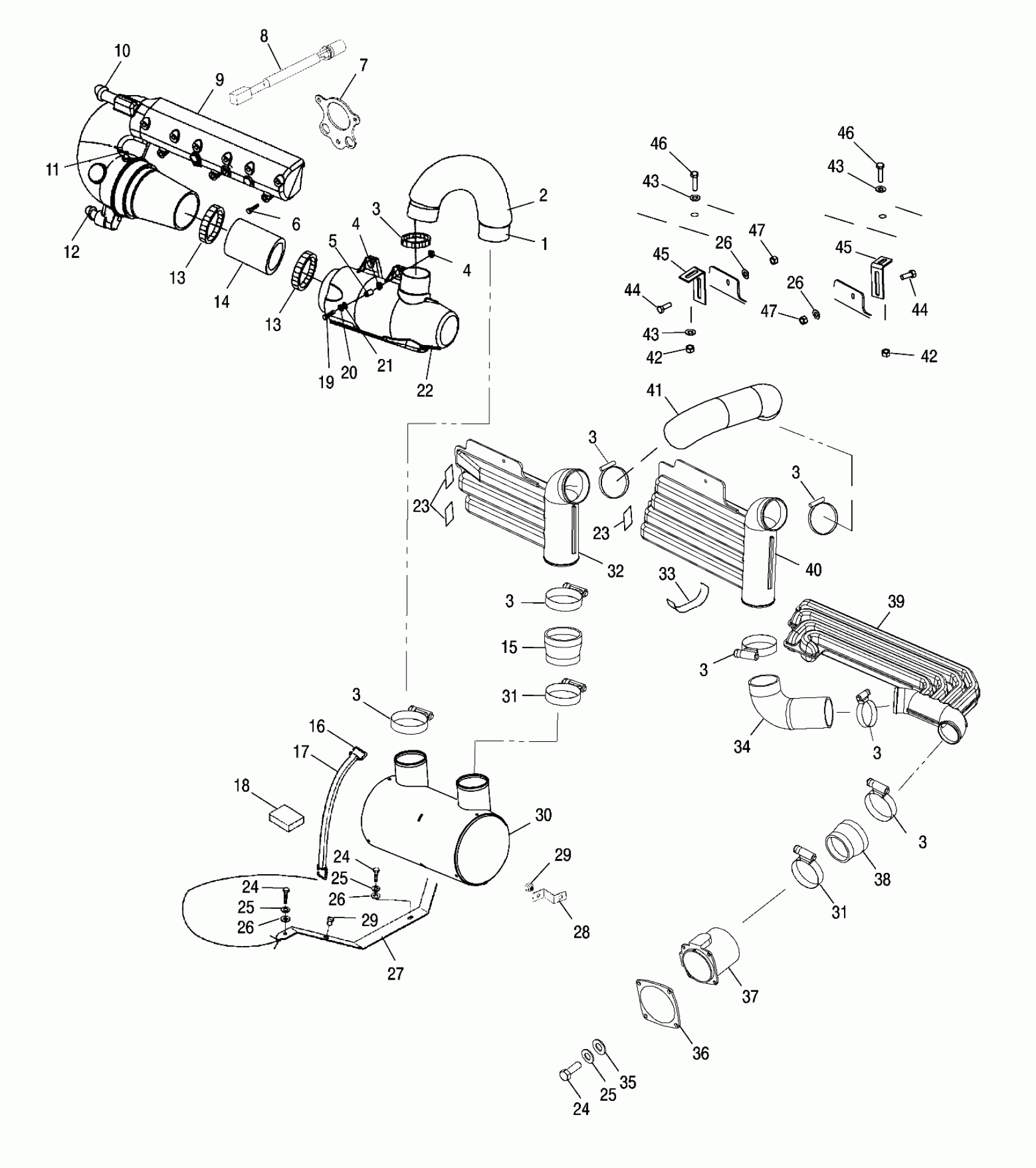

Polaris VIRAGE TXI - W015198D EXHAUST SYSTEM - W015198D (4964846484B003) Diagram

#

Description
Price

1

HOSE-LOG/SILENCER

5411993

Unavailable

2

CONDUIT-HOSE,3.0IDX36 Substituted by 5521547

5521546

Unavailable

3

CLAMP,HOSE,3.75,SS

7080907

$11.19

3

CLAMP,HOSE,3.75,SS

7080907

$11.19

3

CLAMP,HOSE,3.75,SS

7080907

$11.19

3

CLAMP,HOSE,3.75,SS

7080907

$11.19

3

CLAMP,HOSE,3.75,SS

7080907

$11.19

3

CLAMP,HOSE,3.75,SS

7080907

$11.19

3

CLAMP,HOSE,3.75,SS

7080907

$11.19

3

CLAMP,HOSE,3.75,SS

7080907

$11.19

4

GROMMET,RBR.MLD.

5411547

Unavailable

4

GROMMET,RBR.MLD.

5411547

Unavailable

5

TUBE-SPACER,.402X.5X18GA SS23.

5132567

Unavailable

6

SCR-M8X1.25X95-HX/FL-SS

7517562

$13.59

7

GASKET,EXH.FLNG

5811045

Unavailable

8

Sensor, Water Temperature

2410125

Unavailable

9

ASM-MANIFOLD EX LOG (Incl. 11,12)

1261125

Unavailable

10

FITTING,SCREEN,EXH.

7052105

Unavailable

11

FITTING-INJECTOR,EXHAUST,090

7052251

Unavailable

12

FITTING,WATER INLET

5020668

Unavailable

13

CLAMP-HOSE CONSTANT TORQUE 550

7080972

Unavailable

13

CLAMP-HOSE CONSTANT TORQUE 550

7080972

Unavailable

14

HOSE,COVER,EXHAUST PIPE

5411887

Unavailable

15

HOSE-EXHAUST,3.00X2.50L

5412061

Unavailable

16

HOOK,'D',SST/SS,(10)

5224472

$2.19

17

STRAP-BATTERY

5430621

$20.22

18

PAD,FOAM,SHORT

5811341

Unavailable

19

Screw

7516911

Unavailable

20

WASHER, LOCK, SS.(10)

7552608

Unavailable

21

WASHER, FLAT(10)

7555841

Unavailable

22

WELD-EXHAUST PIPE,PWC 2

1261110

Unavailable

23

PAD-RESONATOR,VIRAGE

5812094

Unavailable

23

PAD-RESONATOR,VIRAGE

5812094

Unavailable

24

BOLT(10)

7515127

Unavailable

24

BOLT(10)

7515127

Unavailable

24

BOLT(10)

7515127

Unavailable

25

WASHER, LOCK, S.S.(10)

7555838

Unavailable

25

WASHER, LOCK, S.S.(10)

7555838

Unavailable

25

WASHER, LOCK, S.S.(10)

7555838

Unavailable

26

WASHER, FLAT, S.S.(10)

7555839

Unavailable

26

WASHER, FLAT, S.S.(10)

7555839

Unavailable

26

WASHER, FLAT, S.S.(10)

7555839

Unavailable

26

WASHER, FLAT, S.S.(10)

7555839

Unavailable

27

CRADLE,SILENCER

5241732

Unavailable

28

BRKT,SILENCER,SHORT

5243742

Unavailable

29

Bumper, Rubber

5410414

$3.19

29

Bumper, Rubber

5410414

$3.19

30

WELD-EXHAUST SILENCER,LOG,BLK

1261085-067

Unavailable

31

CLAMP, HOSE(10)

7080445

Unavailable

31

CLAMP, HOSE(10)

7080445

Unavailable

32

RESONATOR,EXHAUST,3CYL,#1

5433812

Unavailable

33

PAD,RESONATOR BRKT

5830197

Unavailable

34

HOSE-CROSSOVER,VIRAGE,DUAL DR

5434031

Unavailable

35

WASHER(10)

7555836

$3.99

36

SEAL,EXH.FITTING

5810529

Unavailable

37

FITTING,EXHAUST,2 5/8 ID

5132446

Unavailable

38

HOSE,EXHAUST,3.00X2.25L

5411951

Unavailable

39

RESONATOR-EXHAUST,MS,3 CYL,#3

5433629

Unavailable

40

RESONATOR,EXHAUST,3CYL,#2

5433813

Unavailable

41

HOSE-CROSSOVER,VIRAGE,DUAL DUR

5434032

Unavailable

42

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

42

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

43

WASHER,RUBBER(10)

7555870

Unavailable

43

WASHER,RUBBER(10)

7555870

Unavailable

43

WASHER,RUBBER(10)

7555870

Unavailable

44

SCR-1/4-20X1.0,SS,CARRIAGE(10)

7517870

Unavailable

44

SCR-1/4-20X1.0,SS,CARRIAGE(10)

7517870

Unavailable

45

BRKT-RESONATOR,VIRAGE 3 CYL

5245130

Unavailable

45

BRKT-RESONATOR,VIRAGE 3 CYL

5245130

Unavailable

46

SCR,M6X1.0X25 SS(10)

7517798

$3.99

46

SCR,M6X1.0X25 SS(10)

7517798

$3.99

47

NUT,NYLOK,S.S.(10)

7542133

Unavailable

47

NUT,NYLOK,S.S.(10)

7542133

Unavailable
