ELECTRICAL BOX - W015198D (4964846484B011)

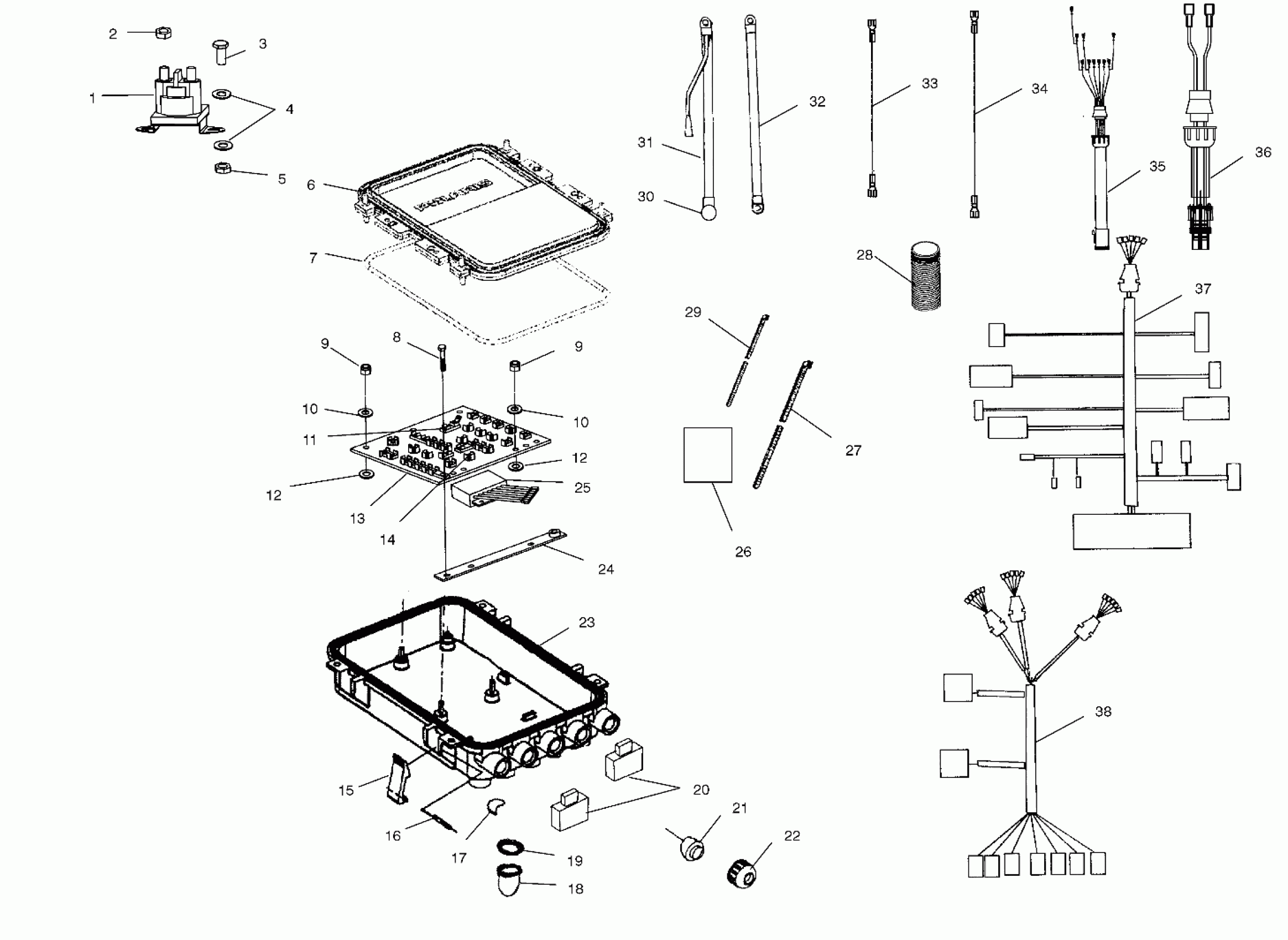

Polaris VIRAGE TXI - W015198D ELECTRICAL BOX - W015198D (4964846484B011) Diagram
#
1
Solenoid, Starter
4010858
Unavailable
2
Nut
7546705
$4.79
3
Screw
7517671
Unavailable
4
Washer
7555839
Unavailable
5
NUT-6 MM X 1.00-NYLOK-SS
7546704
$1.75
6
Cover, Electrical Box
5433119
Unavailable
7
Seal, Plastic
5432569
Unavailable
8
Screw
7512072
Unavailable
9
Nut
7547061
Unavailable
9
Nut
7547061
Unavailable
10
Washer, Flat
7555837
Unavailable
10
Washer, Flat
7555837
Unavailable
11
Fuse, 1/4 Amp
4060111
Unavailable
12
Washer, Dish, Rubber
7555870
Unavailable
12
Washer, Dish, Rubber
7555870
Unavailable
13
Asm., Terminal Board
2410155
Unavailable
14
Fuse, 3 Amp
4060161
Unavailable
15
Latch
5432503
Unavailable
16
Pin, Latch
5333544
Unavailable
17
Decal - "Reset Electrical System"
7077691
Unavailable
18
Boot, Threaded
7080461
Unavailable
19
O-Ring
5411491
Unavailable
20
Breaker, Circuit, 15 Amp
2434011
Unavailable
21
Grommet, Solid
5411235
Unavailable
22
Cap, Grommet
5432502
Unavailable
23
Asm., Electrical Box (Incl. 6,7,15,16) (Incl. 6,7,15,16)
2632140
Unavailable
24
Plate, Bottom
5244372
Unavailable
25
Cut-Off, Start/Stop
4010346
Unavailable
26
Anchor, Cable Tie
7080464
Unavailable
27
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
28
Conduit
5521287-20
$5.75
29
Cable Tie, 4"
7080483
Unavailable
30
INSULATOR-CABLE
5410346
$6.39
31
Cable, Battery/Solenoid
4010288
Unavailable
32
Cable, Solenoid/Starter
4010237
Unavailable
33
Wire, Power, Red/White
2460804
Unavailable
34
Wire, Power, Red/Purple
2460803
Unavailable
35
Harness, RVS
2460796
Unavailable
36
Harness, Bilge Pump
2460753
Unavailable
37
Asm., Harness, Engine
2460980
Unavailable
38
Asm., Harness, Main
2460953
Unavailable
