SHROUD - W025199D/W025199I (4971327132A03)

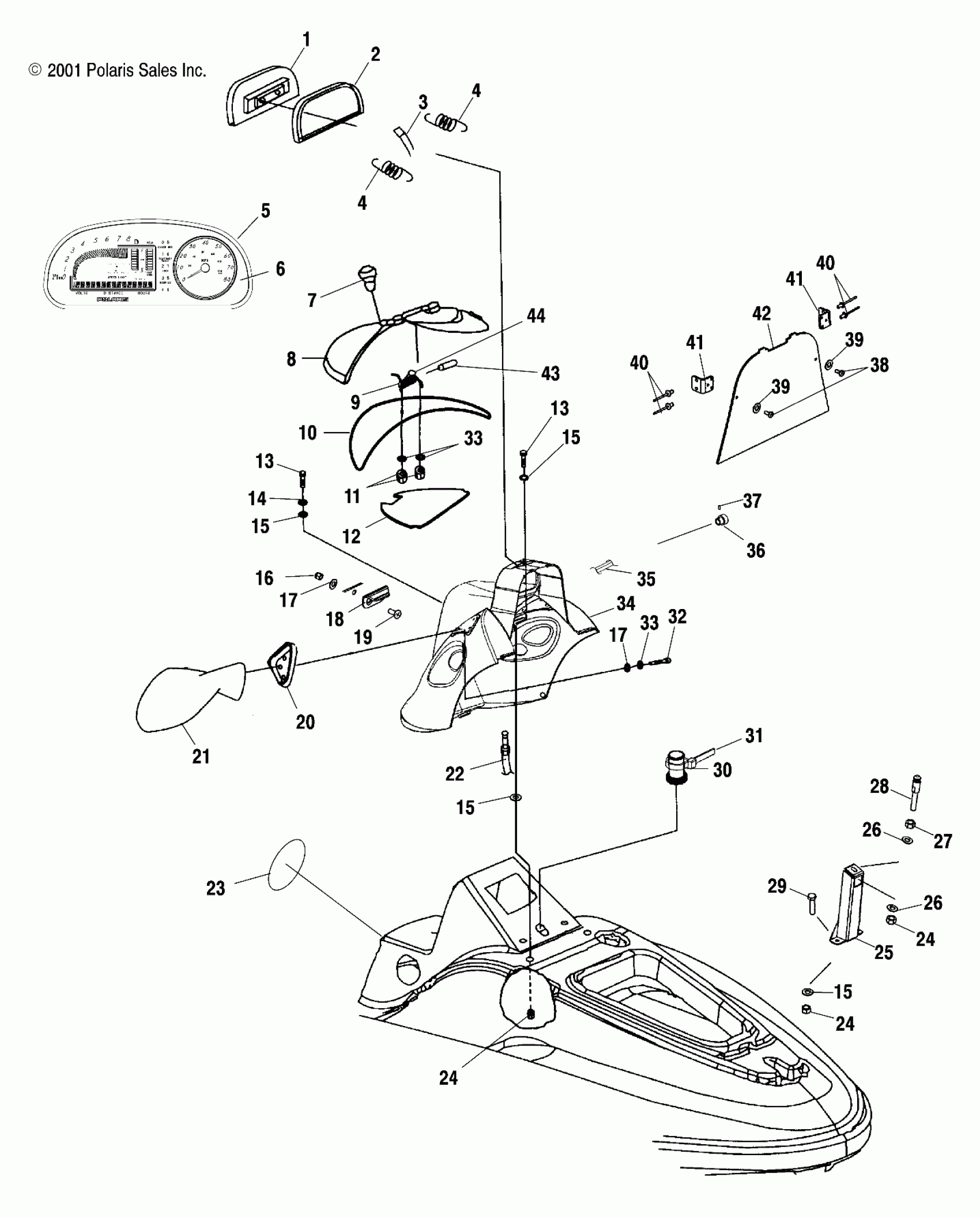

Polaris VIRAGE TX - W025199D SHROUD - W025199D/W025199I (4971327132A03) Diagram
#
1
Gauge, MFI
3280365
Unavailable
2
Gasket, MFI
5411738
Unavailable
3
Line, Pitot, Formed End
8450070-190
Unavailable
4
Spring, MFI Mounting
7041931
Unavailable
4
Spring, MFI Mounting
7041931
Unavailable
5
Kit, MFI Button Replacement
2201593
Unavailable
6
Bezel, MFI, Overlay
3280342
Unavailable
7
Asm., Console Latch
2653011
Unavailable
8
Lid, Console
5434564-1093
Unavailable
9
Spring, Torsion, Console
7042007
Unavailable
10
Seal
5521596
Unavailable
11
Nut
7546705
$4.79
12
Pad, Console
5812235
Unavailable
13
Screw
7517668
Unavailable
13
Screw
7517668
Unavailable
14
Washer, Lock
7556055
Unavailable
15
Washer, Flat
7555831
Unavailable
15
Washer, Flat
7555831
Unavailable
15
Washer, Flat
7555831
Unavailable
15
Washer, Flat
7555831
Unavailable
16
NUT-6 MM X 1.00-NYLOK-SS
7546704
$1.75
17
WASHER-6.4MMX18X1.6,SS
7556094
$4.79
17
WASHER-6.4MMX18X1.6,SS
7556094
$4.79
18
Hook, Console
5245455
Unavailable
19
Screw
7517669
Unavailable
20
Gasket, Mirror, LH
5411557
Unavailable
20
Gasket, Mirror, RH
5411558
Unavailable
21
Asm., Mirror, LH
2631972-070
Unavailable
21
Asm., Mirror, RH
2631973-070
Unavailable
22
Cable, Choke
7081055
Unavailable
23
Grommet
5411674
Unavailable
24
NUT, NYLOK
7546804
$1.49
24
NUT, NYLOK
7546804
$1.49
24
NUT, NYLOK
7546804
$1.49
25
Post, Latch
1821213
Unavailable
26
Washer
7555835
Unavailable
26
Washer
7555835
Unavailable
27
Nut
7547187
Unavailable
28
Pin
5132781
Unavailable
29
Screw
7517539
Unavailable
30
Grommet, Deck, Wire Harness
5411664
Unavailable
31
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
32
Screw
7516805
Unavailable
33
Washer, Lock
7552613
Unavailable
33
Washer, Lock
7552613
Unavailable
34
Shroud, Steering
5434560-1093
Unavailable
35
Bumper, Door/Shroud
5812076
Unavailable
36
Knob
7081037
Unavailable
37
Screw
2080005
Unavailable
38
Screw
7511873
Unavailable
39
Washer, Flat
7555837
Unavailable
39
Washer, Flat
7555837
Unavailable
40
Rivet
7621220
$2.39
40
Rivet
7621220
$2.39
41
Bracket, Shroud Cover
5245451
Unavailable
41
Bracket, Shroud Cover
5245451
Unavailable
42
Cover, Shroud, Front
5812284
Unavailable
43
Pin, Hinge
5333698
Unavailable
44
Hinge, Console
5433384
Unavailable
