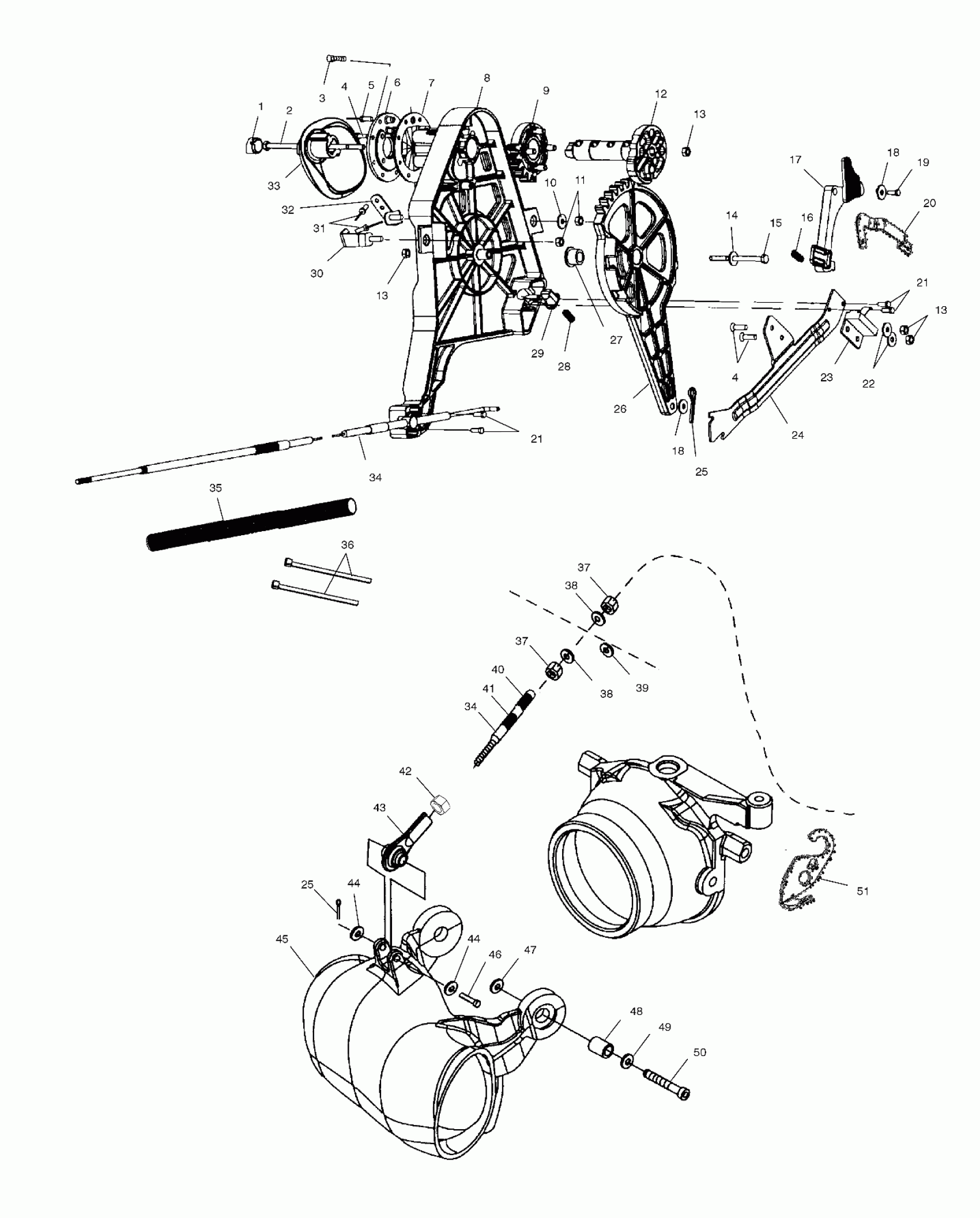

Polaris VIRAGE TX - W025199D REVERSE - W025199D/W025199I (4971327132B03) Diagram

#

Description
Price

1

Cap

5433677-070

Unavailable

2

SCR-M6X1.00X145-HX/FL-SS

7516816

$23.99

3

Screw

7516805

Unavailable

4

Screw

7517669

Unavailable

4

Screw

7517669

Unavailable

5

Rivet

7661040

Unavailable

6

Flange

5434066

Unavailable

7

Gasket

5811982

Unavailable

8

Plate, Base

5433643

Unavailable

9

Pinion

5434067

Unavailable

10

WASHER-6.4MMX18X1.6,SS

7556094

$4.79

11

Nut

7546705

$4.79

12

Shaft, Cam

5433955

Unavailable

13

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

13

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

13

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

14

Washer, Flat

7555856

Unavailable

15

Screw

7516806

Unavailable

16

Spring, Compression

7041888

$13.19

17

Reverse, Lock

5433676

Unavailable

18

Washer, Flat

7555837

Unavailable

18

Washer, Flat

7555837

Unavailable

19

Screw

7511882

Unavailable

20

Bracket, Arm Lock

5412058

Unavailable

21

Screw

7512049

Unavailable

21

Screw

7512049

Unavailable

22

Washer, Flat

7555857

Unavailable

23

Switch, Limit

2410241

Unavailable

24

Bracket, Reverse, Support

5245180

Unavailable

25

Pin, Cotter

7661010

$1.49

25

Pin, Cotter

7661010

$1.49

26

Arm, Reverse

5433871

Unavailable

27

Bushing

5433647

Unavailable

28

Spring, Compression

7041995

Unavailable

29

Plunger

5433673

Unavailable

30

Bracket, Reverse Plate, Rear

5245634

Unavailable

31

Rivet

7661041

Unavailable

32

Bracket, Reverse Plate, Forward

5245635

Unavailable

33

Handle, Reverse

5433605-070

Unavailable

34

Cable, Reverse

7080899

Unavailable

34

Cable, Reverse

7080899

Unavailable

35

Conduit

4010051-100

$13.75

36

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

37

Nut, Jam

7542528

Unavailable

37

Nut, Jam

7542528

Unavailable

38

Washer, Flat

7556232

Unavailable

38

Washer, Flat

7556232

Unavailable

39

Washer, Lock

7571625

Unavailable

40

Seal, Rod

5411818

Unavailable

41

Seal, Rod

5412206

Unavailable

42

Nut

7542150

Unavailable

43

Rod End

7061062

Unavailable

44

Washer, Flat

7555839

Unavailable

44

Washer, Flat

7555839

Unavailable

45

Gate, Reverse, Directional

5434049

Unavailable

46

Pin, Clevis

7661117

Unavailable

47

Washer

7555866

Unavailable

48

Collar

5020683

Unavailable

49

Washer, Flat

7555874

$2.39

50

Screw

7515368

Unavailable

51

Bracket, Reverse Stop

5434272

Unavailable
