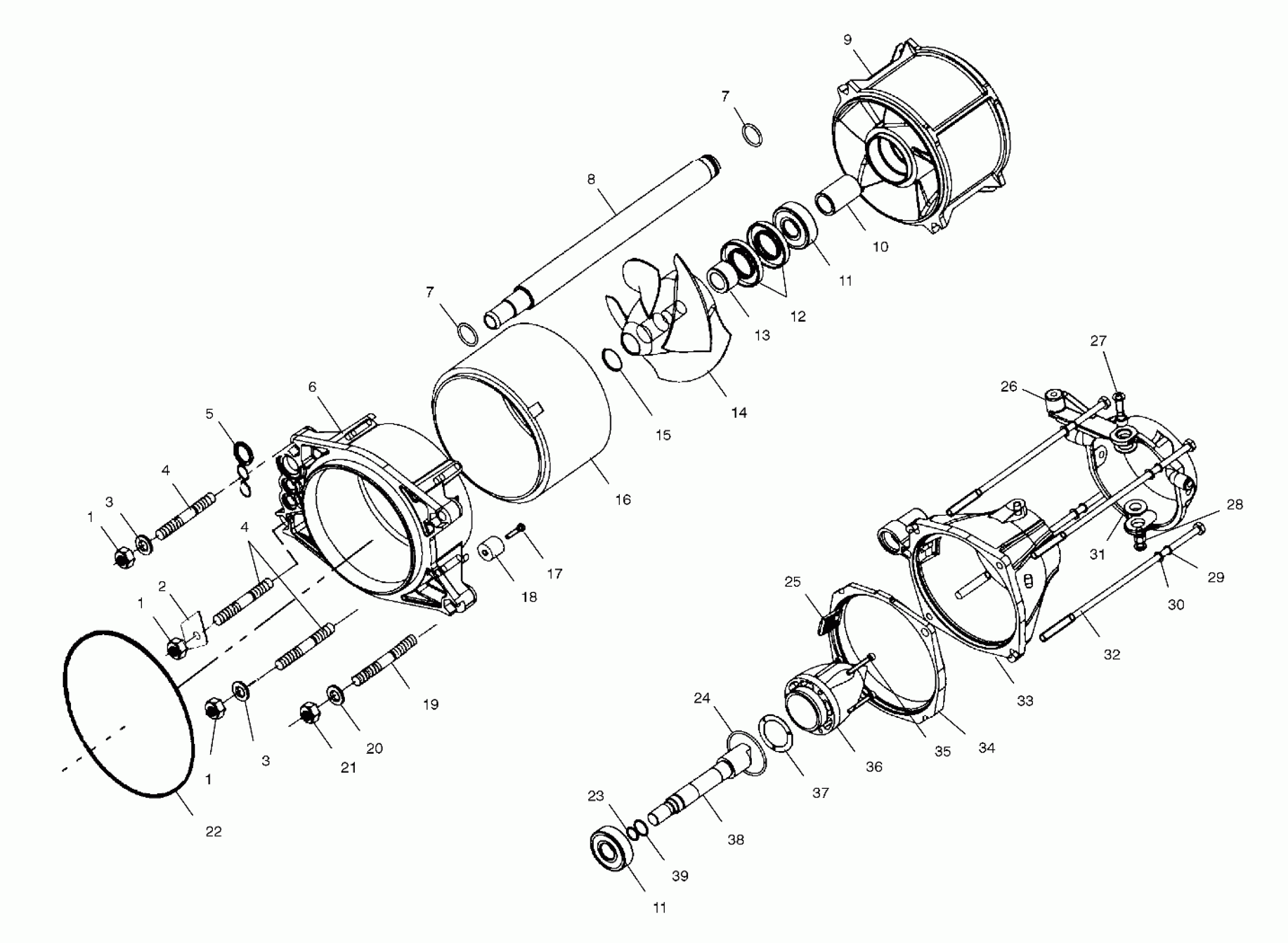

Polaris VIRAGE TX - W025199D PROPULSION - W025199D/W025199I (4971327132B02) Diagram

#

Description
Price

1

Nut, Nylok

7542455

Unavailable

1

Nut, Nylok

7542455

Unavailable

1

Nut, Nylok

7542455

Unavailable

2

Bracket, Steering Cable Nut

5244556

Unavailable

3

Washer, Flat

7555853

$2.63

3

Washer, Flat

7555853

$2.63

4

Stud, Mounting, Pump

5132355

Unavailable

4

Stud, Mounting, Pump

5132355

Unavailable

5

Seal, Water Pipe

5411107

Unavailable

6

Housing, Pump

5131573

Unavailable

7

O-Ring

5410735

Unavailable

7

O-Ring

5410735

Unavailable

8

Pipe, Water, Engine

5432269

Unavailable

9

Stator

5132088

Unavailable

10

Spacer, Bearing

5010294

Unavailable

11

Bearing

3514008

Unavailable

11

Bearing

3514008

Unavailable

12

Seal, Stator Bearing

3610043

Unavailable

13

Spacer, Impeller

5010295

Unavailable

14

Impeller

5131554

Unavailable

15

O-Ring

5410731

Unavailable

16

Extension, Pump

5131196

Unavailable

17

Screw

7522019

Unavailable

18

Anode, Zinc

5630598

Unavailable

19

Stud, Mounting, Pump, Long

5132111

Unavailable

20

Washer, Lock

7552607

Unavailable

21

Nut

7542454

Unavailable

22

O-Ring

5410652

Unavailable

23

O-Ring

5410817

Unavailable

24

O-Ring

5410819

Unavailable

25

Screen, Engine Inlet

5431523

Unavailable

26

Nozzle, Steering

5130999

Unavailable

27

Screw

7515366

Unavailable

28

Collar

5130938

Unavailable

29

Washer, Lock

7552610

Unavailable

30

Washer, Flat

7555835

Unavailable

31

Bearing, Steering Nozzle

5431518

Unavailable

32

Bolt

7515389

Unavailable

33

Nozzle, Stationary

5131569

Unavailable

34

Wedge, Pump

5432841

Unavailable

35

Screw

7512064

Unavailable

36

Cone, Pump

5431519

Unavailable

37

Seal, Tail Cone

5811984

Unavailable

38

Shaft, Stub

5132674

Unavailable

39

O-Ring

5410818

Unavailable
