Description

Price

1

Cap, Oil Tank

5432843

Unavailable

2

Rivet

7661042

Unavailable

3

Inlet, Oil

5433914

Unavailable

4

Gasket, Oil Inlet

5811554

Unavailable

5

CLAMP, HOSE

7080481

Unavailable

5

CLAMP, HOSE

7080481

Unavailable

6

Elbow, 90 Degree

7052130

Unavailable

7

Sender, Oil Level

2410131

Unavailable

8

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

9

Conduit, Convoluted

4010051-30

Unavailable

10

Line, Fuel

8450003-1525

Unavailable

10

Line, Fuel

8450003-1525

Unavailable

11

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

11

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

12

Filter, Oil

2530015

Unavailable

13

CLAMP-HOSE,.875-SS

7080474

$8.40

13

CLAMP-HOSE,.875-SS

7080474

$8.40

14

FUEL LINE

8450059-150

Unavailable

15

Tank, Oil

5434542

Unavailable

16

Valve, Check, Vacuum

7052118

Unavailable

17

Cable Tie

7080483

Unavailable

17

Cable Tie

7080483

Unavailable

18

Hose, Oil Fill

5411756

Unavailable

19

Rivet

7621229

Unavailable

20

Chain, Beaded

7080710

Unavailable

21

Coupling, End

7080442

Unavailable

22

Screw

7517241

Unavailable

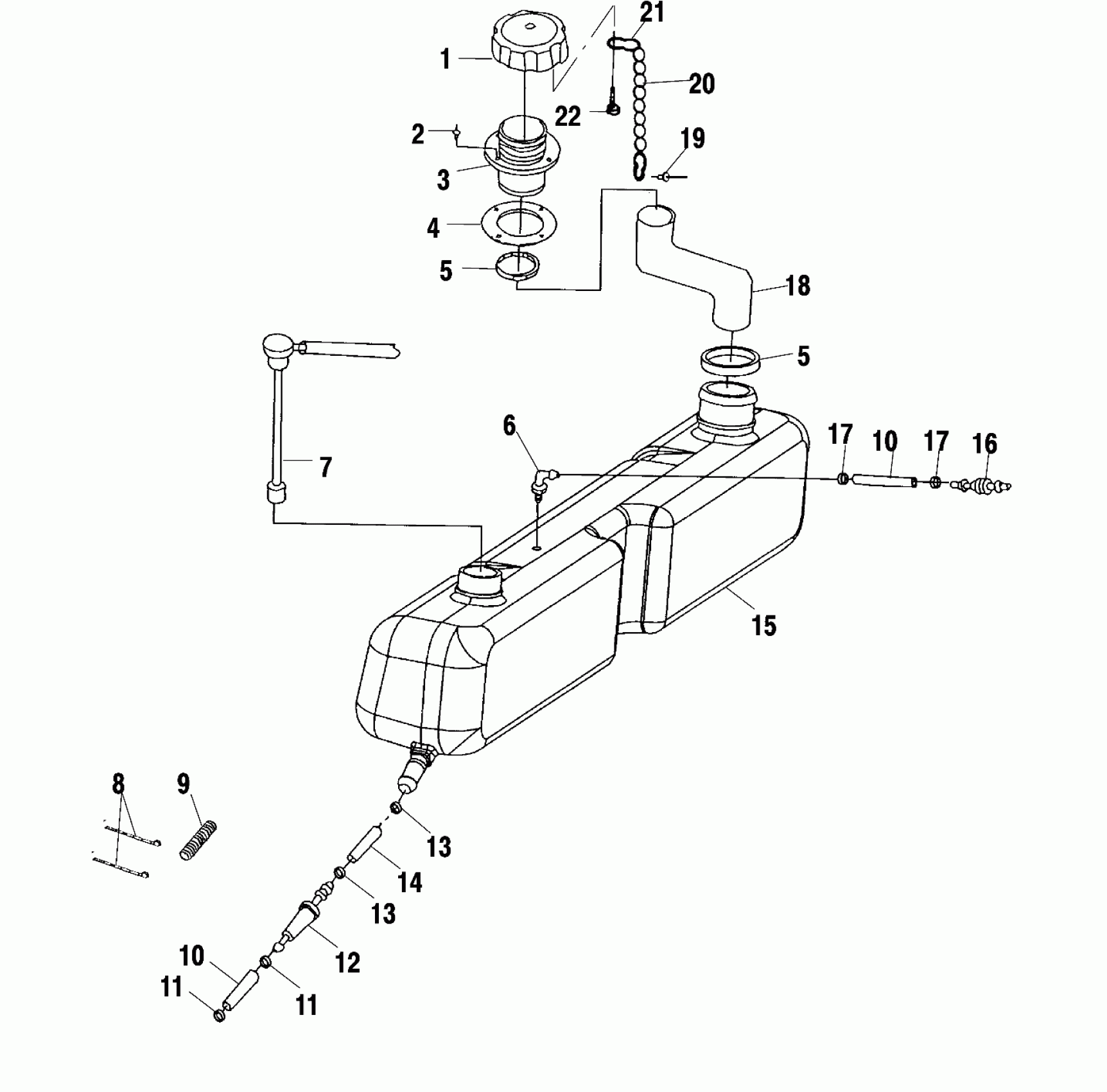

Polaris VIRAGE TX - W025199D OIL TANK - W025199D/W025199I (4971327132A12) Diagram

Cap, Oil Tank

Rivet

Inlet, Oil

Gasket, Oil Inlet

CLAMP, HOSE

CLAMP, HOSE

Elbow, 90 Degree

Sender, Oil Level

CABLE-TIE,DIA12-50MM,WTHR-RES.

Conduit, Convoluted

Line, Fuel

Line, Fuel

CLAMP-HOSE, (LARGE GREEN)

CLAMP-HOSE, (LARGE GREEN)

Filter, Oil

CLAMP-HOSE,.875-SS

CLAMP-HOSE,.875-SS

FUEL LINE

Tank, Oil

Valve, Check, Vacuum

Cable Tie

Cable Tie

Hose, Oil Fill

Rivet

Chain, Beaded

Coupling, End

Screw
