HULL and BODY - W025199D/W025199I (4971327132A05)

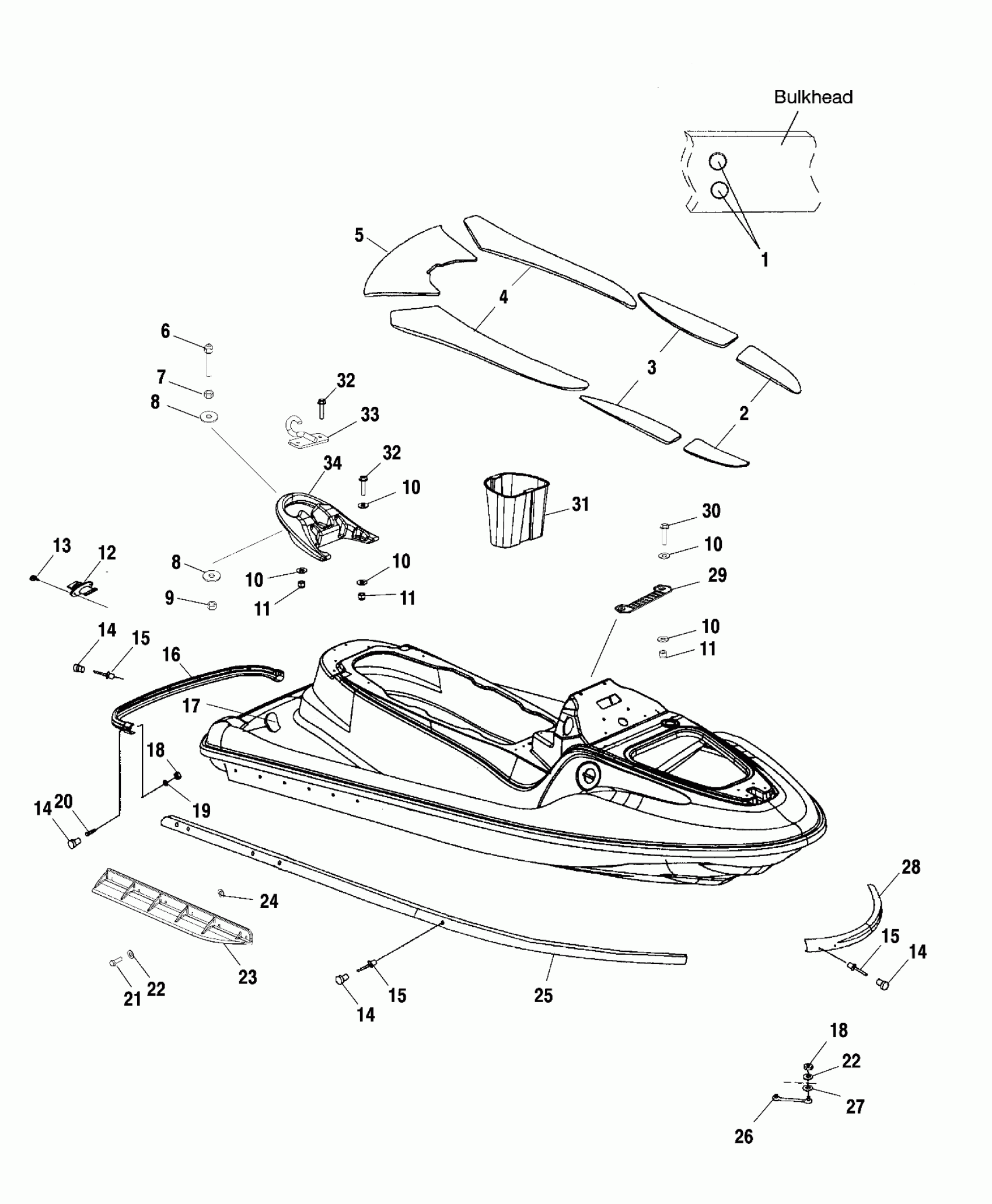

Polaris VIRAGE TX - W025199D HULL and BODY - W025199D/W025199I (4971327132A05) Diagram
#
1
Grommet
5411158
Unavailable
2
Pad, Footwell, Front, LH
5812370-318
Unavailable
2
Pad, Footwell, Front, RH
5812371-318
Unavailable
3
Pad, Footwell, Center, LH
5812372-318
Unavailable
3
Pad, Footwell, Center, RH
5812373-318
Unavailable
4
Pad, Footwell, Rear, LH
5812374-318
Unavailable
4
Pad, Footwell, Rear, RH
5812375-318
Unavailable
5
Pad, Boarding
5812376-318
Unavailable
6
Plunger, Latch
5020753
Unavailable
7
Nut
7542454
Unavailable
8
WASHER, FLAT
7555846
$5.59
8
WASHER, FLAT
7555846
$5.59
9
Nut, Nylok
7542455
Unavailable
10
WASHER-6.4MMX18X1.6,SS
7556094
$4.79
10
WASHER-6.4MMX18X1.6,SS
7556094
$4.79
10
WASHER-6.4MMX18X1.6,SS
7556094
$4.79
10
WASHER-6.4MMX18X1.6,SS
7556094
$4.79
10
WASHER-6.4MMX18X1.6,SS
7556094
$4.79
11
Nut, Nylok
7552607
Unavailable
11
Nut, Nylok
7552607
Unavailable
11
Nut, Nylok
7552607
Unavailable
12
Asm., Bilge Plug
1060125
Unavailable
13
Screw
7511882
Unavailable
14
Plug, Bumper, Rear
5431994-070
Unavailable
14
Plug, Bumper, Rear
5431994-070
Unavailable
14
Plug, Bumper, Rear
5431994-070
Unavailable
14
Plug, Bumper, Rear
5431994-070
Unavailable
15
Rivet
7621511
Unavailable
15
Rivet
7621511
Unavailable
15
Rivet
7621511
Unavailable
16
Bumper, Rear
5433531-070
Unavailable
17
Pad, Heel, LH
5811918
Unavailable
17
Pad, Heel, RH
5811919
Unavailable
18
Nut, Nylok
7542133
Unavailable
18
Nut, Nylok
7542133
Unavailable
19
Washer, Flat
7555836
$3.99
20
Bolt, Carriage
7517320-070
Unavailable
21
Screw
7515198
Unavailable
22
Washer, Flat
7555839
Unavailable
22
Washer, Flat
7555839
Unavailable
23
Sponson, LH
5432274-070
Unavailable
23
Sponson, RH
5432275-070
Unavailable
24
Washer, Rubber
5811440
$2.07
25
Rail, Rub, Side, LH
5521568-070
Unavailable
25
Rail, Rub, Side, RH
5521569-070
Unavailable
26
STRAP, BOW
2670150
Unavailable
27
Washer, Dish, Rubber
7555870
Unavailable
28
Bumper, Front
5411758-070
Unavailable
29
Plate, Seat Tongue
5433671
Unavailable
30
Screw
7517798
$3.99
31
Bucket, Rear Storage
5433473
Unavailable
32
Screw
7517644
Unavailable
32
Screw
7517644
Unavailable
33
Hook, Tow
2632218
Unavailable
34
Handle, Grab
5433474-070
Unavailable
