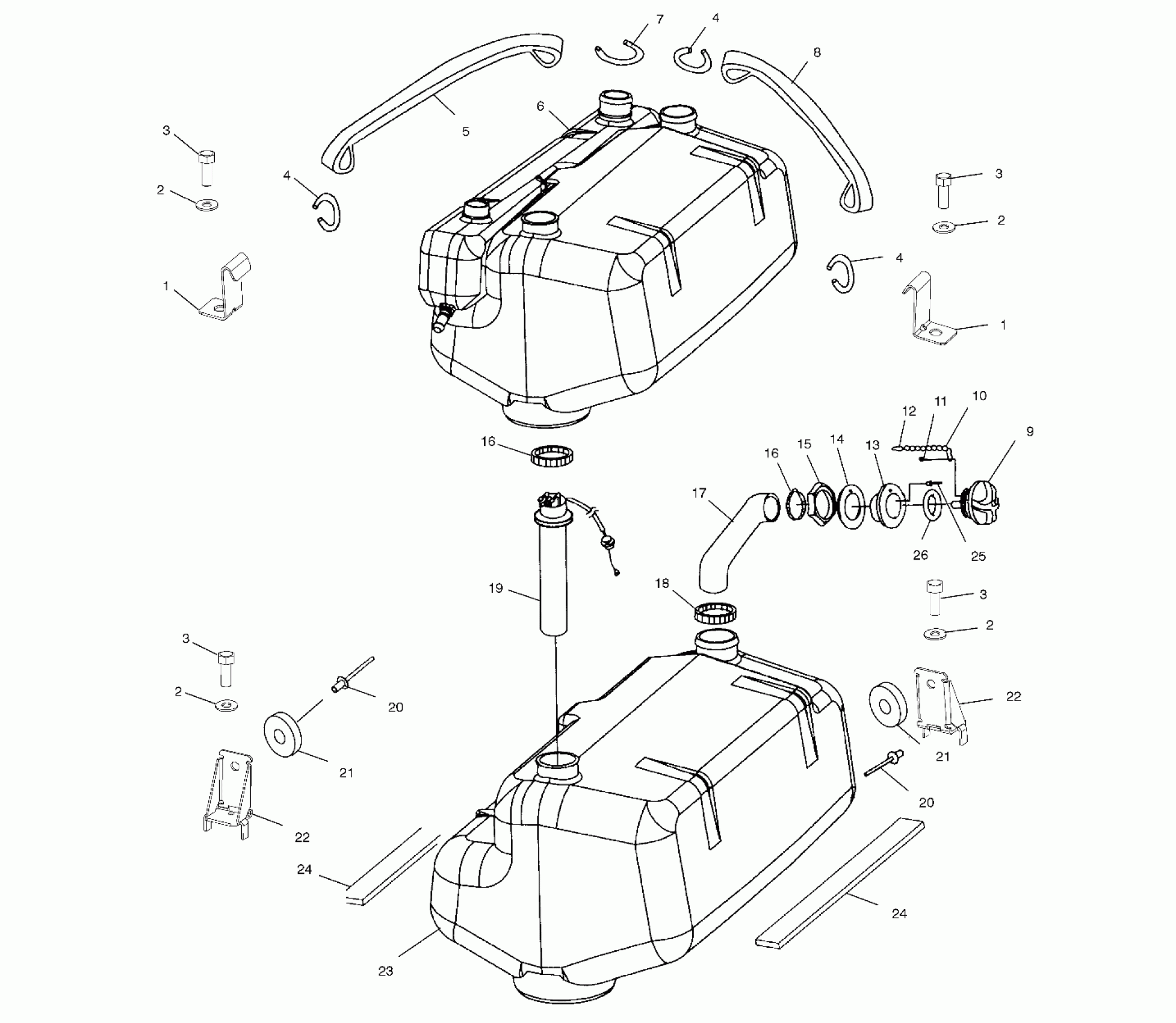

Polaris VIRAGE TX - W025199D FUEL TANK - W025199D/W025199I (4971327132A09) Diagram

#

Description

Price

1

Bracket, Strap

5244279

Unavailable

1

Bracket, Strap

5244279

Unavailable

2

Washer, Lock

7552610

Unavailable

2

Washer, Lock

7552610

Unavailable

2

Washer, Lock

7552610

Unavailable

2

Washer, Lock

7552610

Unavailable

3

Screw

7515361

Unavailable

3

Screw

7515361

Unavailable

3

Screw

7515361

Unavailable

3

Screw

7515361

Unavailable

4

Hook, Strap, Narrow

5243775

Unavailable

4

Hook, Strap, Narrow

5243775

Unavailable

4

Hook, Strap, Narrow

5243775

Unavailable

5

Strap, Rubber

5430621

$20.22

6

TANK, OIL [See Oil Tank Pg. A12, Ref. 15]

-------

Unavailable

7

Hook, Strap

5243776

Unavailable

8

Strap, Battery Holddown

5410424

Unavailable

9

Cap, Fuel, Ratchet

2520177

Unavailable

10

Chain, Bead, Cap Retainer

7080710

Unavailable

11

Screw

7511873

Unavailable

12

Coupling, End, Fuel Cap Chain

7080442

Unavailable

13

Inlet, Fuel

5433553

Unavailable

14

Seal, Fuel Inlet

5811492

Unavailable

15

Nut, Fuel Inlet

5433621

Unavailable

16

Clamp, Hose

7080766

Unavailable

16

Clamp, Hose

7080766

Unavailable

17

Hose, Fuel Fill

5411757

Unavailable

18

CLAMP, HOSE

7080451

$7.19

19

Asm., Pick-Up Sender

2410124

Unavailable

20

RIVET

7621407

$1.19

20

RIVET

7621407

$1.19

21

Pad, Fuel Tank Stop

5812206

Unavailable

21

Pad, Fuel Tank Stop

5812206

Unavailable

22

Bracket, Fuel Tank Stop

5244758

Unavailable

22

Bracket, Fuel Tank Stop

5244758

Unavailable

23

Tank, Fuel

5433018

Unavailable

24

Pad

5812152

Unavailable

24

Pad

5812152

Unavailable

25

Rivet

7621229

Unavailable

26

Seal, Fuel Cap

5411305

Unavailable
