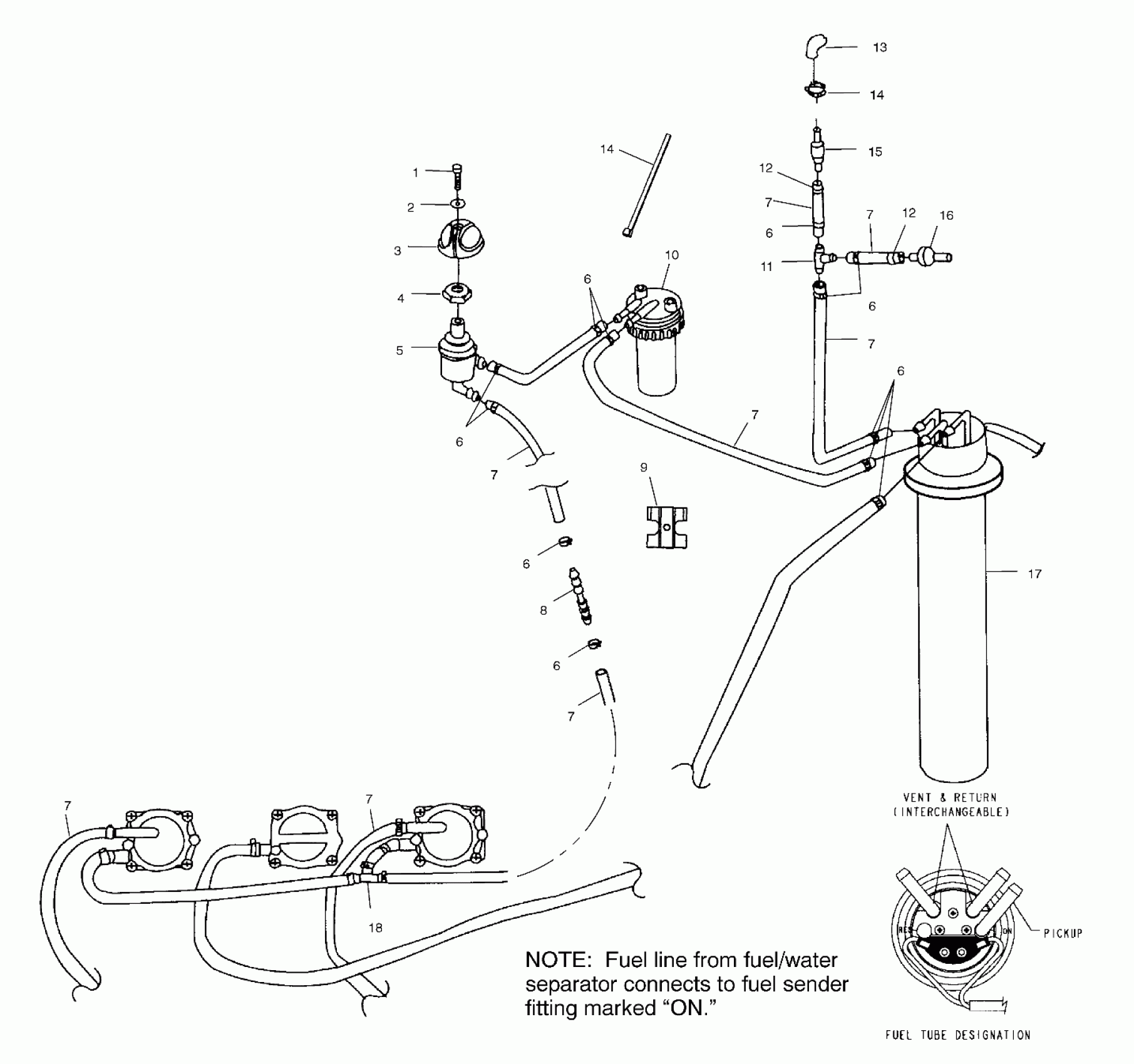

Polaris VIRAGE TX - W025199D FUEL SYSTEM - W025199D/W025199I (4971327132A10) Diagram

#

Description
Price

1

Screw

7516302

$3.99

2

Washer, Flat

7555840

$3.35

3

Knob, Fuel Valve

5432836-070

Unavailable

4

NUT, FUEL VALVE

5431451

Unavailable

5

Valve, On/Off

7052159

$43.99

6

Clamp, Hose

7080476

$6.39

6

Clamp, Hose

7080476

$6.39

6

Clamp, Hose

7080476

$6.39

6

Clamp, Hose

7080476

$6.39

6

Clamp, Hose

7080476

$6.39

6

Clamp, Hose

7080476

$6.39

6

Clamp, Hose

7080476

$6.39

7

Line, Fuel

8450046-1525

Unavailable

7

Line, Fuel

8450046-1525

Unavailable

7

Line, Fuel

8450046-1525

Unavailable

7

Line, Fuel

8450046-1525

Unavailable

7

Line, Fuel

8450046-1525

Unavailable

7

Line, Fuel

8450046-1525

Unavailable

7

Line, Fuel

8450046-1525

Unavailable

7

Line, Fuel

8450046-1525

Unavailable

8

Fitting

7052329

Unavailable

9

T-Clip

7080482

$6.39

10

SEPARATOR, FUEL/WATER [See Fuel/Water Separator Pg. C3, Ref. 5]

-------

Unavailable

11

Fitting, Tee

7052111

Unavailable

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

13

Grommet, Vent

5410682

Unavailable

14

Cable Tie

7080483

Unavailable

14

Cable Tie

7080483

Unavailable

15

Valve, Relief Check

7051015

Unavailable

16

Value, Vacuum Check

7052118

Unavailable

17

ASM., FUEL SENDER [SEE FUEL TANK PG. A9, REF. 19]

-------

Unavailable

18

FITTING, TEE

7052075

$9.59
