EXHAUST SYSTEM - W025199D/W025199I (4971327132B05)

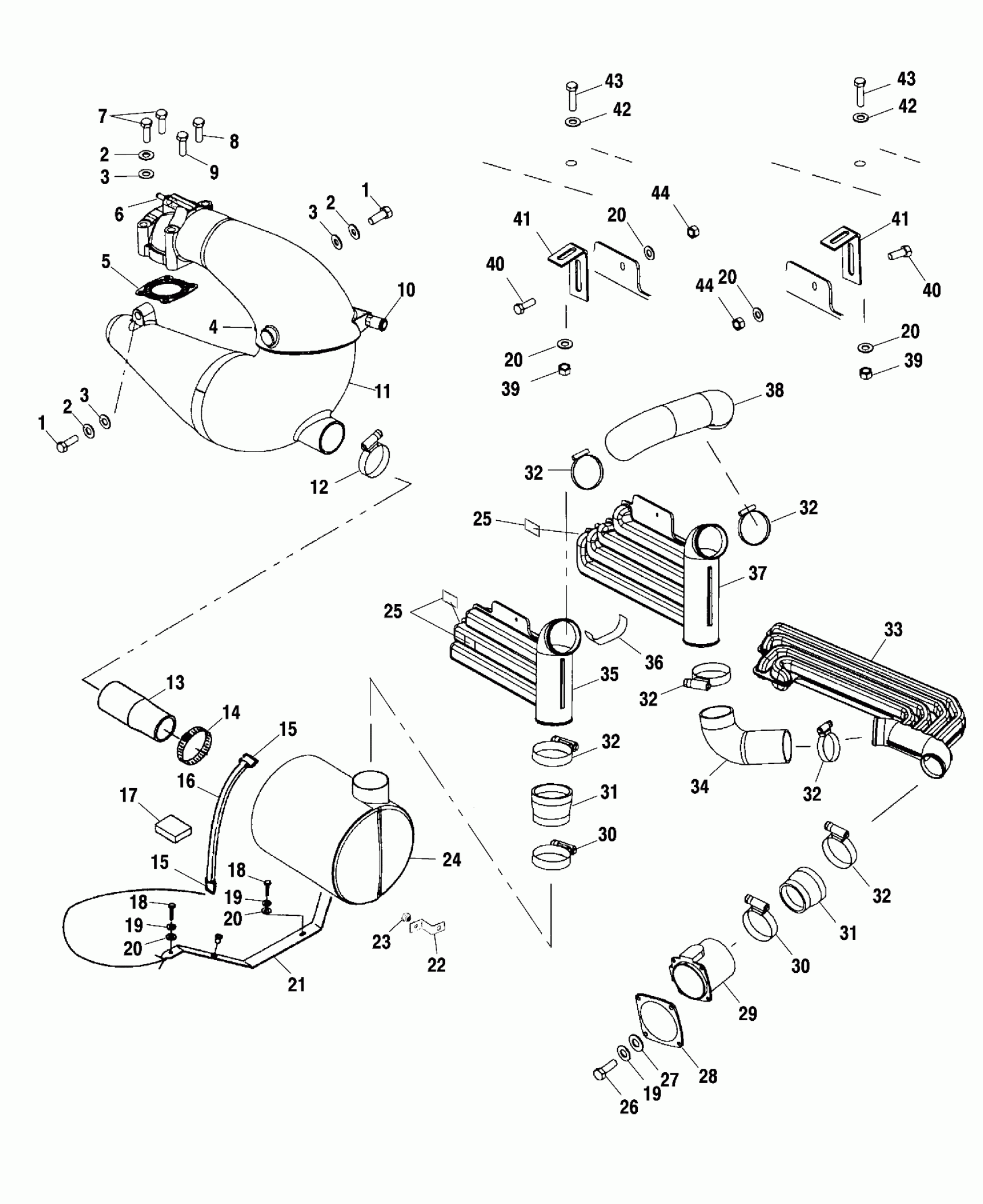

Polaris VIRAGE TX - W025199D EXHAUST SYSTEM - W025199D/W025199I (4971327132B05) Diagram
#
1
Screw
7517309
Unavailable
1
Screw
7517309
Unavailable
2
Washer, Lock
7552611
Unavailable
2
Washer, Lock
7552611
Unavailable
2
Washer, Lock
7552611
Unavailable
3
Washer, Flat
7555856
Unavailable
3
Washer, Flat
7555856
Unavailable
3
Washer, Flat
7555856
Unavailable
4
FITTING, EXHAUST INJECTOR [See Cooling System Pg. B9, Ref. 14]
-------
Unavailable
5
Gasket, Exhaust Pipe
5830051
Unavailable
6
Fitting, Exhaust Screen
7052105
Unavailable
7
Screw
7517004
Unavailable
8
Screw
7517005
Unavailable
9
Screw
7517209
Unavailable
10
Fitting, Inlet, Water
5020668
Unavailable
11
Pipe, Exhaust, Triple, Fire Red
1261084-093
Unavailable
12
Clamp, Hose
7080766
Unavailable
13
Hose, Pipe/Silencer
5411117
Unavailable
14
Clamp
7080446
$11.19
15
D-Hook
5224472
$2.19
15
D-Hook
5224472
$2.19
16
Strap, Rubber
5410853
Unavailable
17
Pad
5811341
Unavailable
18
Screw
7515127
Unavailable
18
Screw
7515127
Unavailable
19
Washer, Lock
7555838
Unavailable
19
Washer, Lock
7555838
Unavailable
19
Washer, Lock
7555838
Unavailable
20
Washer, Flat
7555839
Unavailable
20
Washer, Flat
7555839
Unavailable
20
Washer, Flat
7555839
Unavailable
20
Washer, Flat
7555839
Unavailable
20
Washer, Flat
7555839
Unavailable
20
Washer, Flat
7555839
Unavailable
21
Cradle, Silencer
5241732
Unavailable
22
Bracket, Silencer, Short
5243742
Unavailable
23
Bumper, Rubber
5410414
$3.19
24
Silencer, Exhaust, Fire Red
1260746-093
Unavailable
25
Pad
5812094
Unavailable
25
Pad
5812094
Unavailable
26
Screw
7515127
Unavailable
27
Washer, Flat
7555836
$3.99
28
Seal
5810529
Unavailable
29
Fitting, Exhaust
5132446
Unavailable
30
Clamp, Hose
7080445
Unavailable
30
Clamp, Hose
7080445
Unavailable
31
Hose, Exhaust
5411951
Unavailable
31
Hose, Exhaust
5411951
Unavailable
32
CLAMP, HOSE
7080907
$11.19
32
CLAMP, HOSE
7080907
$11.19
32
CLAMP, HOSE
7080907
$11.19
32
CLAMP, HOSE
7080907
$11.19
32
CLAMP, HOSE
7080907
$11.19
32
CLAMP, HOSE
7080907
$11.19
33
Resonator 3
5433629
Unavailable
34
Hose, Crossover
5411863
Unavailable
35
Resonator 1
5433812
Unavailable
36
Pad, Resonator Bracket
5830197
Unavailable
37
Resonator 2
5433813
Unavailable
37
Hose, Crossover
5411932
Unavailable
38
Conduit
5521561
Unavailable
39
NUT-6 MM X 1.00-NYLOK-SS
7546704
$1.75
39
NUT-6 MM X 1.00-NYLOK-SS
7546704
$1.75
40
Screw
7517870
Unavailable
40
Screw
7517870
Unavailable
41
Bracket
5245130
Unavailable
41
Bracket
5245130
Unavailable
42
Washer, Rubber Dish
7555870
Unavailable
42
Washer, Rubber Dish
7555870
Unavailable
43
Screw
7517798
$3.99
43
Screw
7517798
$3.99
44
Nut, Nylok
7542133
Unavailable
44
Nut, Nylok
7542133
Unavailable
