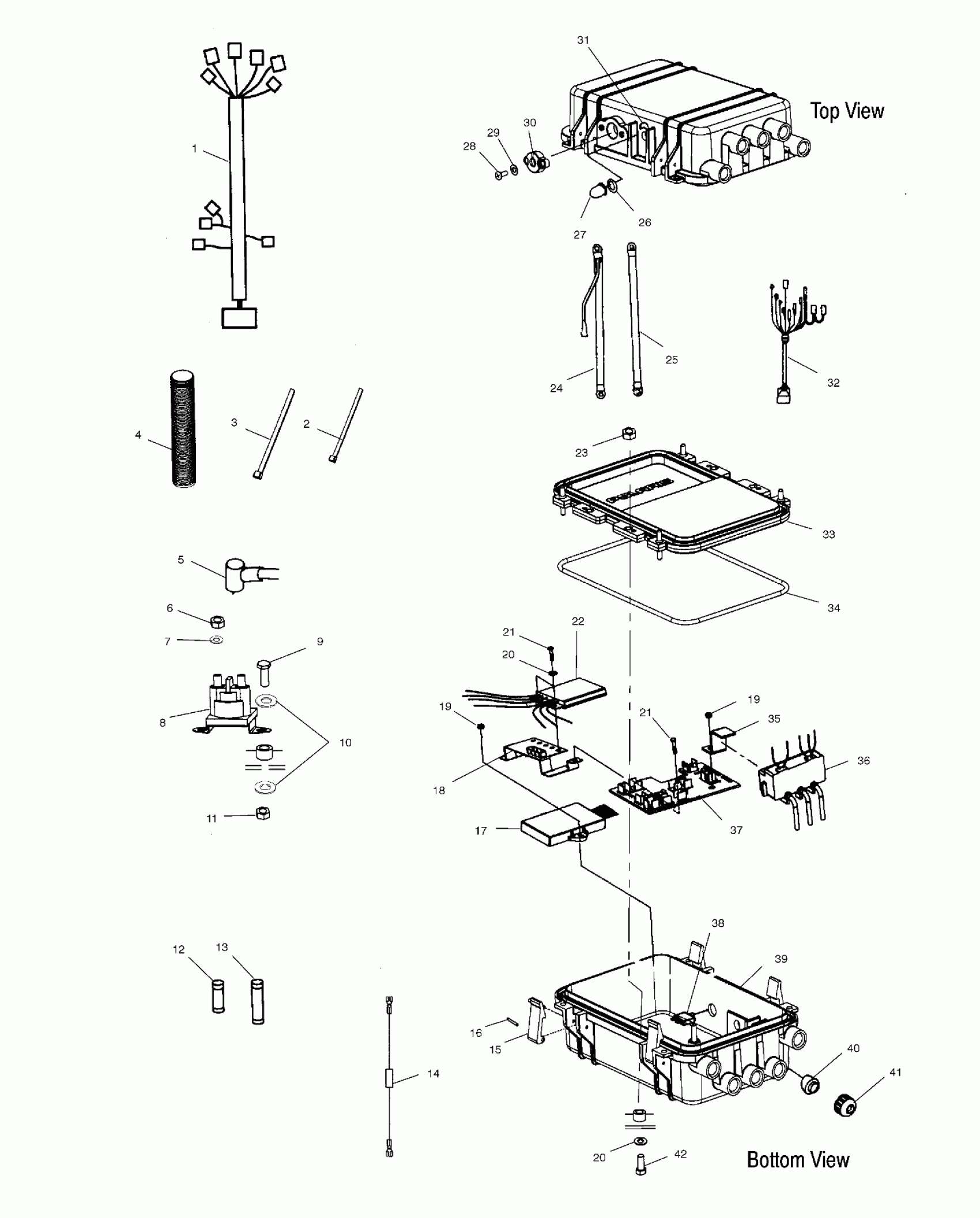

Polaris VIRAGE TX - W025199D ELECTRICAL BOX - W025199D/W025199I (4971327132B13) Diagram

#

Description
Price

1

Harness, Main

2460955

$394.99

2

Cable Tie

7080483

Unavailable

3

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

4

Conduit

5521287-53

Unavailable

5

INSULATOR-CABLE

5410346

$7.73

6

Nut

7546705

$4.76

7

Washer, Lock

7552613

Unavailable

8

Solenoid, Starter

4010401

Unavailable

9

Screw

7517671

$1.97

10

Washer, Flat

7555839

Unavailable

11

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

12

Fuse, 3 Amp

4060161

Unavailable

13

Fuse, 1/4 Amp

4060111

Unavailable

14

Harness, Jumper

2460928

$13.89

15

Latch

5432503

$102.38

16

Pin, Latch

5333544

$10.46

17

CDI, Programmed

4010567

Unavailable

18

Asm., Strap, Grounding w/Fuses

2410250

Unavailable

19

Nut, Nylok

7547061

$0.56

19

Nut, Nylok

7547061

$0.56

20

Washer, Flat

7555837

$1.59

20

Washer, Flat

7555837

$1.59

21

Screw

7512042

Unavailable

21

Screw

7512042

Unavailable

22

Regulator, 1 Button

4010648

Unavailable

23

NUT, NYLOK

7547059

$4.76

24

Cable, Battery/Solenoid

4010238

Unavailable

25

Cable, Solenoid/Starter

4010237

Unavailable

26

O-Ring

5411491

$1.03

27

Boot, Threaded

7080461

$13.99

28

Screw

7515113

Unavailable

29

Washer, Flat

7555836

$3.99

30

Plate, Stator

5432574

$6.59

31

Decal, Electrical Box Reset

7073734

Unavailable

32

Harness, 9 Wire Stator

2460717

$81.75

33

Cover, Electrical Box

5433119

Unavailable

34

Seal

5432569

Unavailable

35

Bracket, Coil

5244369

Unavailable

36

COIL, IGNITION [See Magneto Pg. C11, Ref. 10]

----

Unavailable

37

Asm., Terminal Board

2410201

Unavailable

38

Breaker, Circuit

2434011

$20.48

39

Asm., Electrical Box, Ignition [Incl. 15,16,33,34]

2632137

Unavailable

40

Grommet

5411235

Unavailable

41

Cap

5432502

$2.62

42

Screw

7517825

Unavailable
