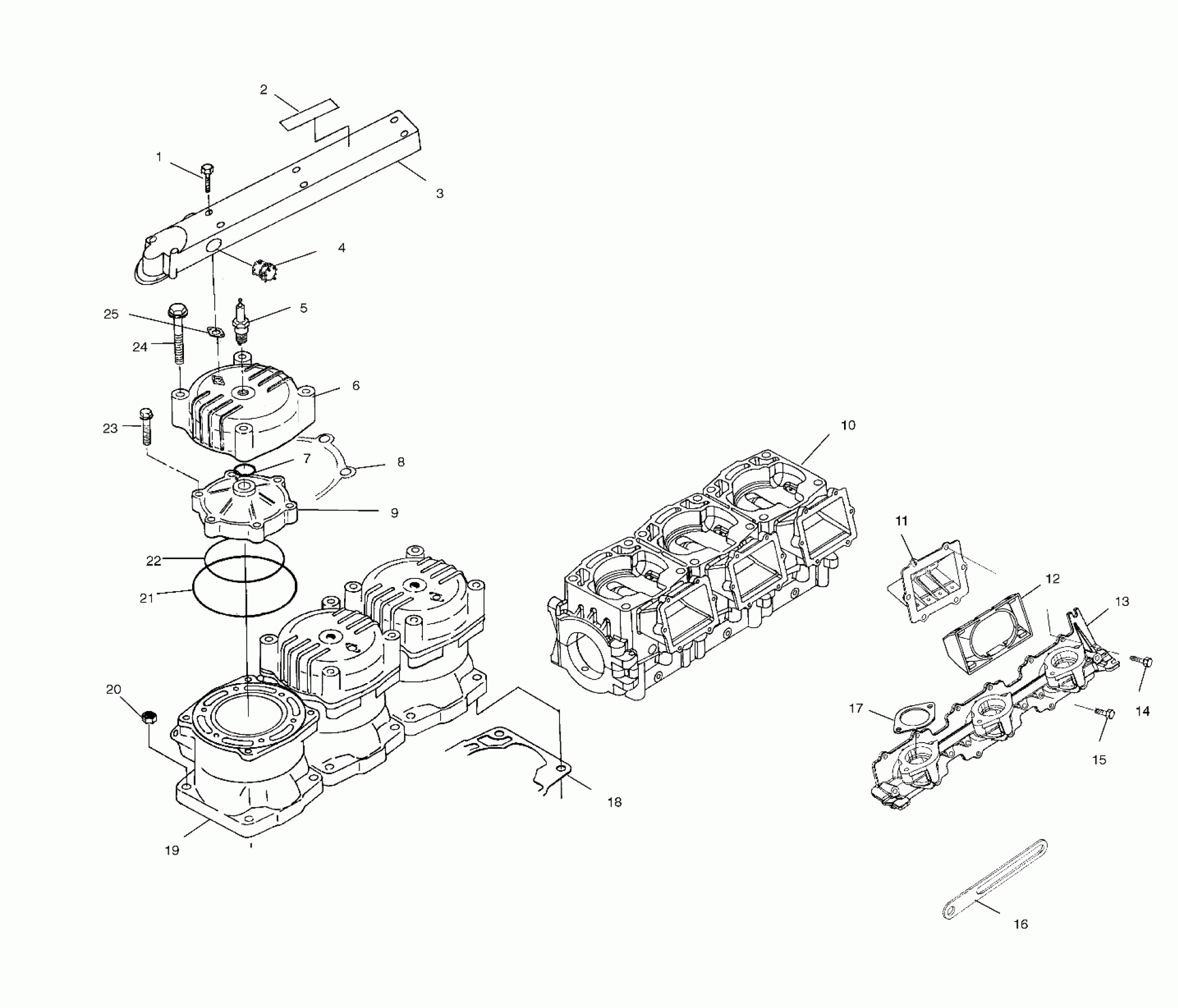

Polaris VIRAGE TX - W025199D CYLINDER and MANIFOLD - W025199D/W025199I (4971327132C06) Diagram

#

Description

Price

1

Screw

7516806

Unavailable

2

Decal, Warning

7075383

Unavailable

3

Manifold, Water

1202083-093

Unavailable

4

Plug

7051527

Unavailable

5

SPARK PLUG-NGK BR9ES

3070163

$3.99

6

Cover, Head, Big Bore, Red

5630527-093

Unavailable

7

O-Ring

5410917

$1.49

8

Ring, Head

5241944

Unavailable

9

Head, Cylinder

3021122

Unavailable

10

ASM., TRIPLE CRANKCASE [See Crankcase Pg. C5, Ref.1]

-------

Unavailable

11

Asm., Triple Reed Block

1201595

Unavailable

12

Stuffer, Reed Block

5432162

Unavailable

13

Adaptor, Carburetor, 3 Cylinder

5630582

Unavailable

14

Screw

7516807

Unavailable

15

Screw

7516814

Unavailable

16

Retainer

7080654

$18.32

17

Gasket, Carburetor

5830043

Unavailable

18

Gasket, Cylinder Base

5830123

Unavailable

19

Cylinder, 84mm

3021017

Unavailable

20

NUT

7547021

$6.99

21

O-Ring

5410931

Unavailable

22

O-Ring

5411573

Unavailable

23

Screw

7517352

Unavailable

24

Screw

7516722

Unavailable

25

Gasket, Water, Manifold

5830061

Unavailable
