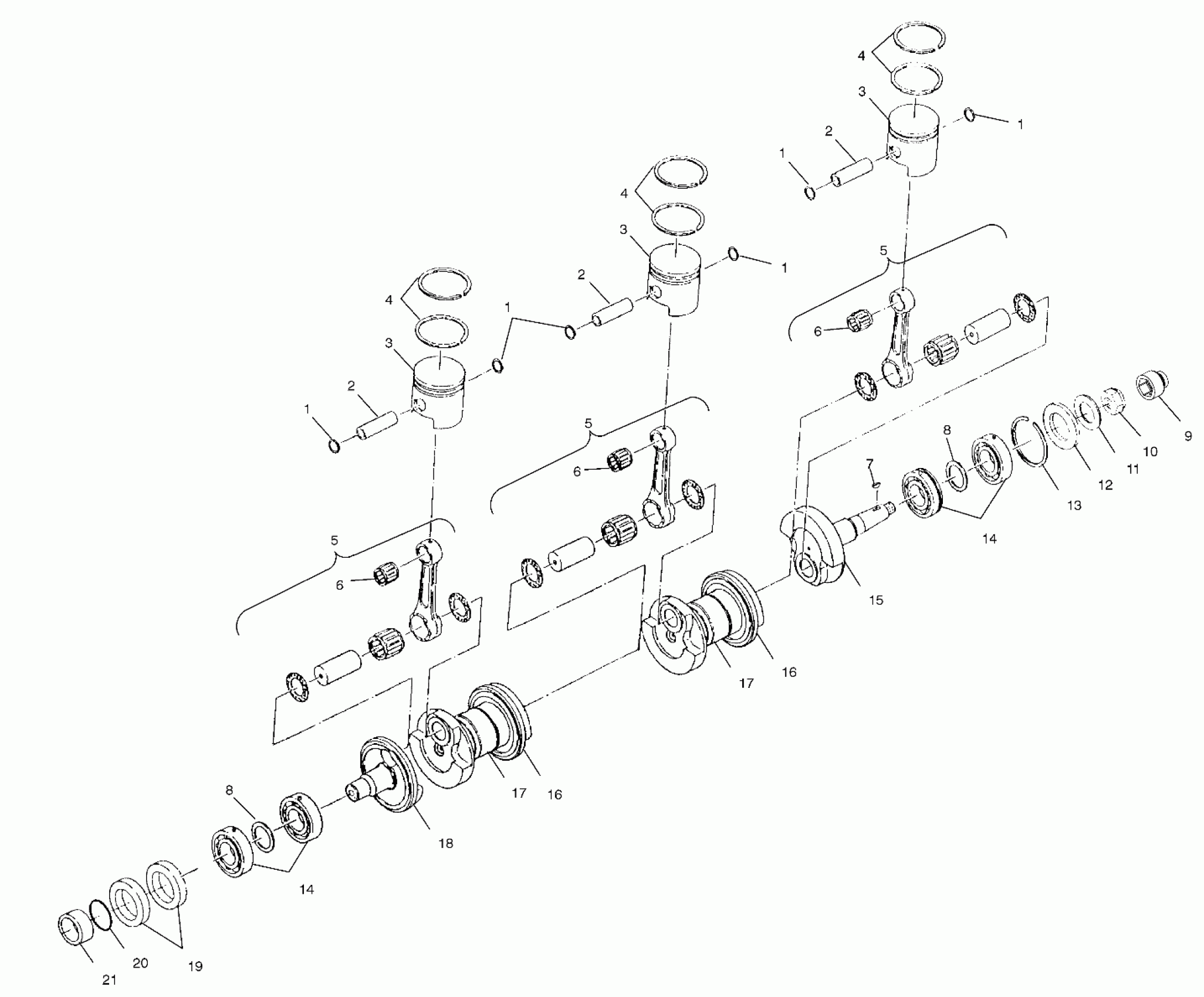

Polaris VIRAGE TX - W025199D CRANKSHAFT and PISTON - W025199D/W025199I (4971327132C07) Diagram

#

Description
Price

-

Kit, Crankshaft, 1200 Triple [Incl. 6,8,14-18]

2201444

Unavailable

1

Circlip, Piston

3023031

Unavailable

1

Circlip, Piston

3023031

Unavailable

1

Circlip, Piston

3023031

Unavailable

1

Circlip, Piston

3023031

Unavailable

1

Circlip, Piston

3023031

Unavailable

2

Pin, Piston

3021164

$17.97

2

Pin, Piston

3021164

$17.97

2

Pin, Piston

3021164

$17.97

3

Kit, Piston Asm. [Std.][Incl.1,2,4]

2201706

$185.99

3

Kit, Piston Asm. [.25mm O/S] [Incl.1,2,4]

2201707

$140.16

3

Kit, Piston Asm. [.50mm O/S] [Incl. 1,2,4]

2201708

$226.99

3

Kit, Piston Asm. [Std.][Incl.1,2,4]

2201706

$185.99

3

Kit, Piston Asm. [.25mm O/S] [Incl.1,2,4]

2201707

$140.16

3

Kit, Piston Asm. [.50mm O/S] [Incl. 1,2,4]

2201708

$226.99

3

Kit, Piston Asm. [Std.][Incl.1,2,4]

2201706

$185.99

3

Kit, Piston Asm. [.25mm O/S] [Incl.1,2,4]

2201707

$140.16

3

Kit, Piston Asm. [.50mm O/S] [Incl. 1,2,4]

2201708

$226.99

4

Kit, Piston Rings [Standard]

2201449

Unavailable

4

Kit, Piston Rings [.25mm O/S]

2201450

$85.54

4

Kit, Piston Rings [.50mm O/S]

2201451

$108.24

4

Kit, Piston Rings [Standard]

2201449

Unavailable

4

Kit, Piston Rings [.25mm O/S]

2201450

$85.54

4

Kit, Piston Rings [.50mm O/S]

2201451

$108.24

4

Kit, Piston Rings [Standard]

2201449

Unavailable

4

Kit, Piston Rings [.25mm O/S]

2201450

$85.54

4

Kit, Piston Rings [.50mm O/S]

2201451

$108.24

5

Kit, Connecting Rod Asm.

2201445

$211.74

5

Kit, Connecting Rod Asm.

2201445

$211.74

5

Kit, Connecting Rod Asm.

2201445

$211.74

6

Bearing

3552112

Unavailable

6

Bearing

3552112

Unavailable

6

Bearing

3552112

Unavailable

7

KEY, WOODRUFF

7721117

$29.99

8

Bushing

7555905

$3.99

8

Bushing

7555905

$3.99

9

Coupler, Pump Drive

5432576

Unavailable

10

NUT [See Magneto Pg. C11, Ref. 11]

----

Unavailable

11

WASHER [See Magneto Pg. C11, Ref. 9]

----

Unavailable

12

Seal

3610044

$24.27

13

Ring, Retaining

7710441

Unavailable

14

Bearing, Ball, Deep Groove

3585503

$31.75

14

Bearing, Ball, Deep Groove

3585503

$31.75

15

Crankweb, MAG

5131744

Unavailable

16

Crankweb, Center

5131745

Unavailable

16

Crankweb, Center

5131745

Unavailable

17

Labyrinth

5131086

Unavailable

17

Labyrinth

5131086

Unavailable

18

Crankweb, PTO

5131746

Unavailable

19

Seal

5411937

$29.99

20

O-RING

5410613

$1.98

21

Collar, Crankshaft

5131195

Unavailable
