COOLING SYSTEM - W025199D/W025199I (4971327132B09)

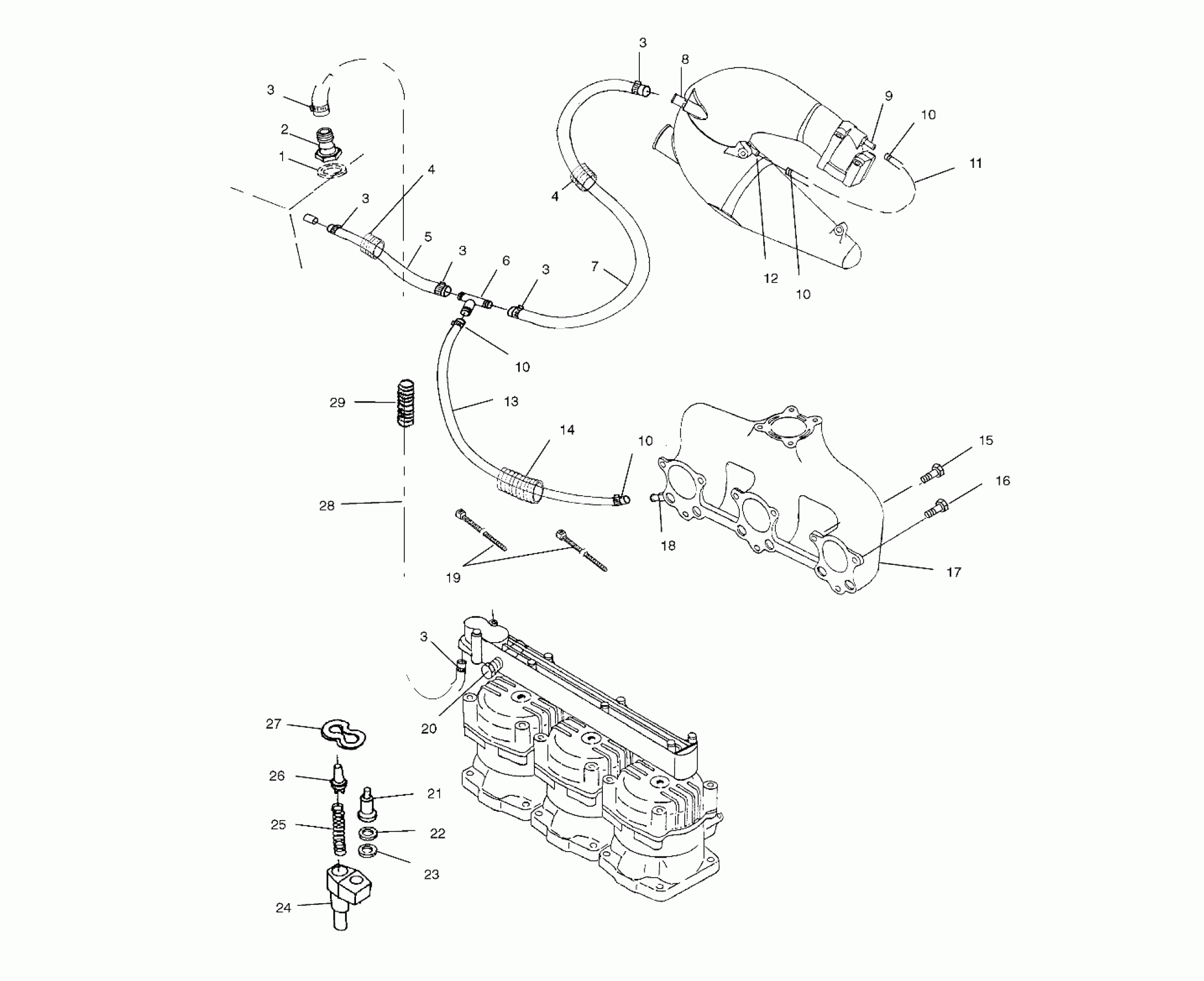

Polaris VIRAGE TX - W025199D COOLING SYSTEM - W025199D/W025199I (4971327132B09) Diagram
#
1
Gasket
5811317
Unavailable
2
Fitting, Thru-Hull
5431444-133
Unavailable
3
Clamp, Hose
7080475
$10.39
3
Clamp, Hose
7080475
$10.39
3
Clamp, Hose
7080475
$10.39
3
Clamp, Hose
7080475
$10.39
3
Clamp, Hose
7080475
$10.39
3
Clamp, Hose
7080475
$10.39
4
CONDUIT, FLEX
5521287-18
Unavailable
4
CONDUIT, FLEX
5521287-18
Unavailable
5
Hose, Water Inlet
5411335
Unavailable
6
Fitting, Tee
5431784
Unavailable
7
Hose, Water In, Exhaust Pipe
5411793
Unavailable
8
FITTING, INLET, WATER [See Exhaust System Pg. B6, Ref. 10]
-------
Unavailable
9
FITTING, EXHAUST SCREEN [See Exhaust System Pg. B6, Ref. 6]
-------
Unavailable
10
Clamp, Hose
7080476
$6.39
10
Clamp, Hose
7080476
$6.39
10
Clamp, Hose
7080476
$6.39
10
Clamp, Hose
7080476
$6.39
11
Hose
5411153
Unavailable
12
Fitting, Exhaust Injector
7052290
Unavailable
13
Hose, Stinger, Formed
5410897
Unavailable
14
Conduit, Flex
5521398-42
Unavailable
15
Screw
7516727
Unavailable
16
Screw
7516725
Unavailable
17
Manifold, Exhaust
1260809-329
Unavailable
18
Fitting, Drain, Exhaust Manifold
5020746
Unavailable
19
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
20
Plug, Pipe
7051527
Unavailable
21
Thermostat
7051008
Unavailable
22
Gasket, Thermostat
5412014
Unavailable
23
Washer
7556174
Unavailable
24
Cover, Thermostat
5631136
Unavailable
25
Spring, Compression
7041310
Unavailable
26
Valve, Pop-Off
5433823
Unavailable
27
Seal, Thermostat Housing
5410860
Unavailable
28
Hose, Water Outlet
5411310
Unavailable
29
Conduit, Flex
5521287-45
Unavailable
